HLG-185H-C1050B

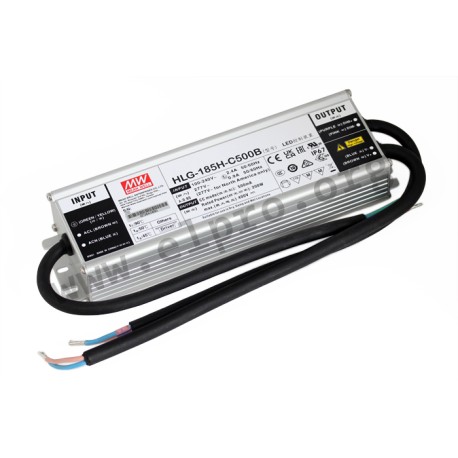

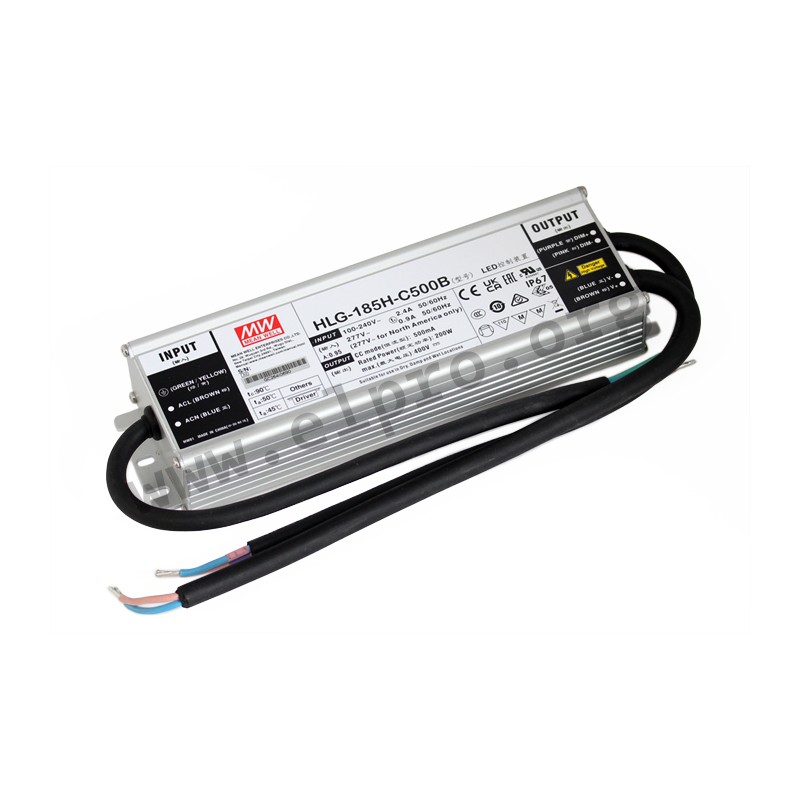

Mean Well LED driver series HLG-185H-C

LED drivers in a metal case (IP67) with a constant current, a high voltage output, 200W and a wide input range. These devices comply with EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547, are suitable for LED lighting applications and have a built-in active PFC function. They are protected against short circuit, overload (auto recovery), overvoltage and overtemperature and have a 3 in 1 dimming function (1 to 10V DC, 10V PWM). We offer the following types of this Mean Well series: HLG-185H-C500B, HLG-185H-C700B, HLG-185H-C1050B and HLG-185H-C1400B.

  • single output
  • output: 199,5 to 200,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 1150g
HLG-185H-C1050B, Mean Well LED drivers, 200W, IP67, constant current, dimmable, HLG-185H-C series

HLG-185H-C1050B

135882 HLG-185H-C1050B HLG-185H-C1050B 4711287452265 Mean Well LED driver series HLG-185H-C. LED drivers in a metal case (IP67) with a constant current, a high voltage output, 200W and a wide input range. These devices comply with EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547, are suitable for LED lighting applications and have a built-in active PFC function. They are protected against short circuit, overload (auto recovery), overvoltage and overtemperature and have a 3 in 1 dimming function (1 to 10V DC, 10V PWM). We offer the following types of this Mean Well series: HLG-185H-C500B, HLG-185H-C700B, HLG-185H-C1050B and HLG-185H-C1400B. single output output: 199,5 to 200,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 55A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C weight: 1150g

Specifications

manufacturer
Manufacturer's name HLG-185H-C1050B
GTIN 4711287452265
Efficiency [%] 94
Output current [A] 1,05
Output power [W] 199,5
Output voltage range [V] 95...190
Data Sheet

Unit price

50,89 €

Volume discounts

Quantity Unit price
50 + 49,89 €

Stock: 7
Further delivery:
CW 11/2025
