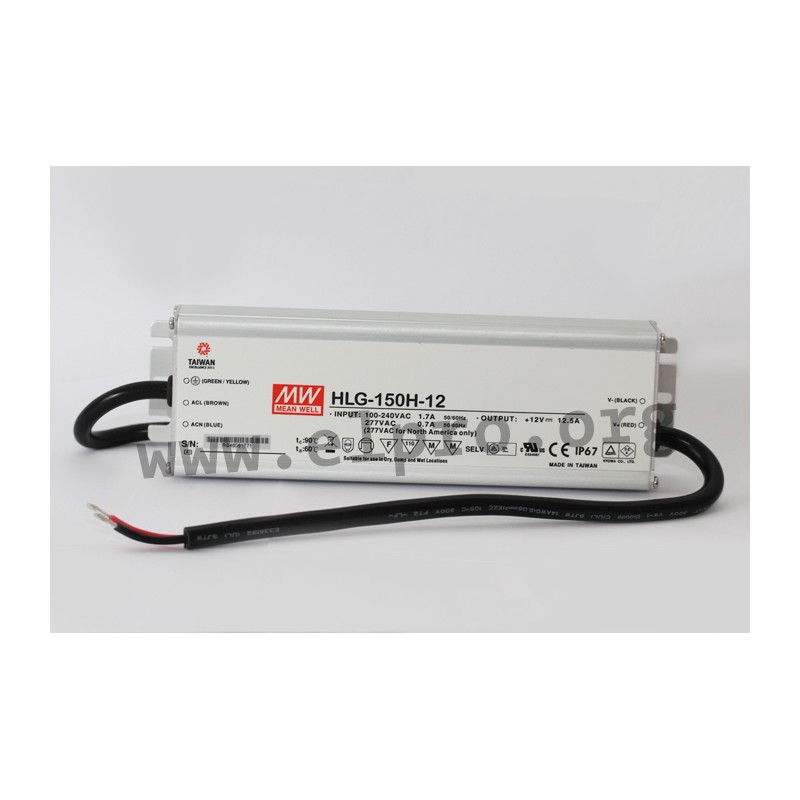

HLG-150H-12

Mean Well LED driver series HLG-150H

LED drivers in a metal housing (IP67) with a constant voltage, 150W and a constant current. These devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are suitable for LED lighting applications, are not dimmable and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-150H-12, HLG-150H-15, HLG-150H-20, HLG-150H-24, HLG-150H-30, HLG-150H-36, HLG-150H-42, HLG-150H-48 and HLG-150H-54.

  • single output
  • output: 150 to 153,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +70°C
  • weight: 1,15kg

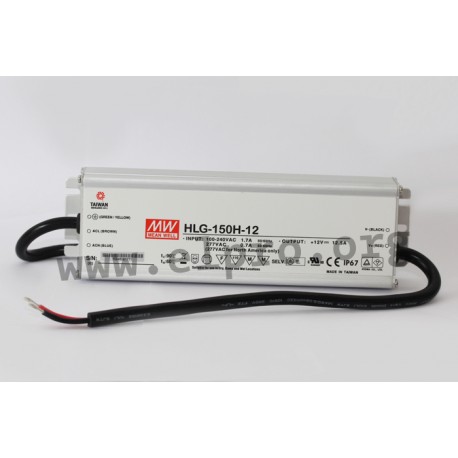

Mean Well HLG-150H series

HLG-150H-12

41254 HLG-150H-12 HLG-150H-12 4711287449647 Mean Well LED driver series HLG-150H. LED drivers in a metal housing (IP67) with a constant voltage, 150W and a constant current. These devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are suitable for LED lighting applications, are not dimmable and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-150H-12, HLG-150H-15, HLG-150H-20, HLG-150H-24, HLG-150H-30, HLG-150H-36, HLG-150H-42, HLG-150H-48 and HLG-150H-54. single output output: 150 to 153,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +70°C weight: 1,15kg

Specifications

manufacturer
Manufacturer's name HLG-150H-12
GTIN 4711287449647
Output voltage [V] 12
Phase 2 phase
Output current adjustment [A] 7,5...12,5
Efficiency [%] 91,5
Output voltage tolerance: [%] 2,5
Output power [W] 150
Ripple [mVp-p] 150
Data Sheet

Unit price

41,09 €

Volume discounts

Quantity Unit price
50 + 40,09 €

Stock: 14
Next incoming goods:
CW 04/2025
204 units

Further delivery:
CW 16/2025
