HLG-150H-24B

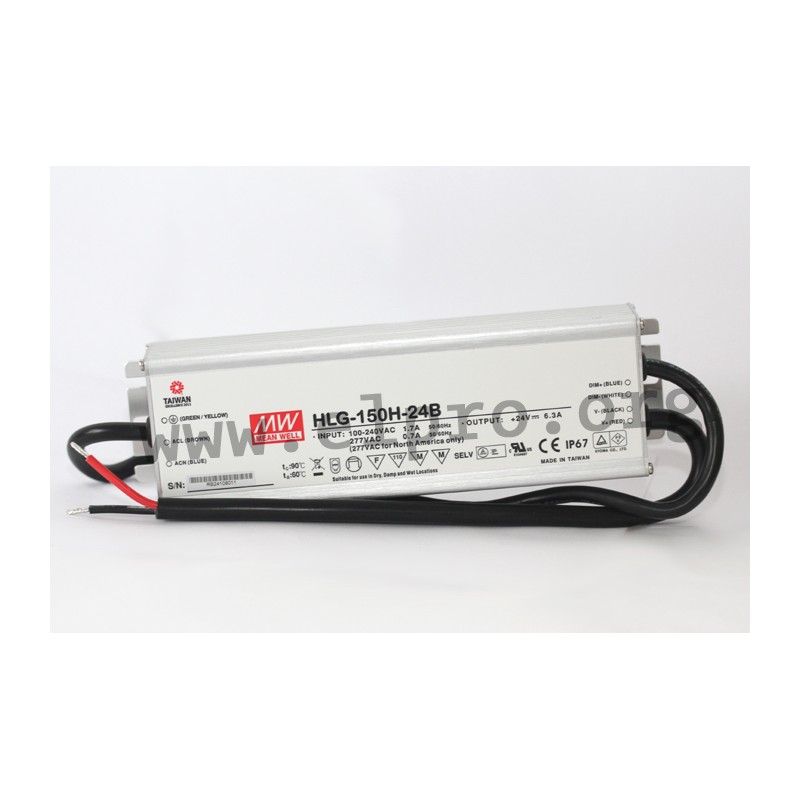

Mean Well LED driver series HLG-150H

LED drivers in a metal housing (IP67) with a constant current, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and 150W. These devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-150H-12B, HLG-150H-15B, HLG-150H-20B, HLG-150H-24B, HLG-150H-30B, HLG-150H-36B, HLG-150H-42B, HLG-150H-48B and HLG-150H-54B.

  • single output
  • output: 150 to 153,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C

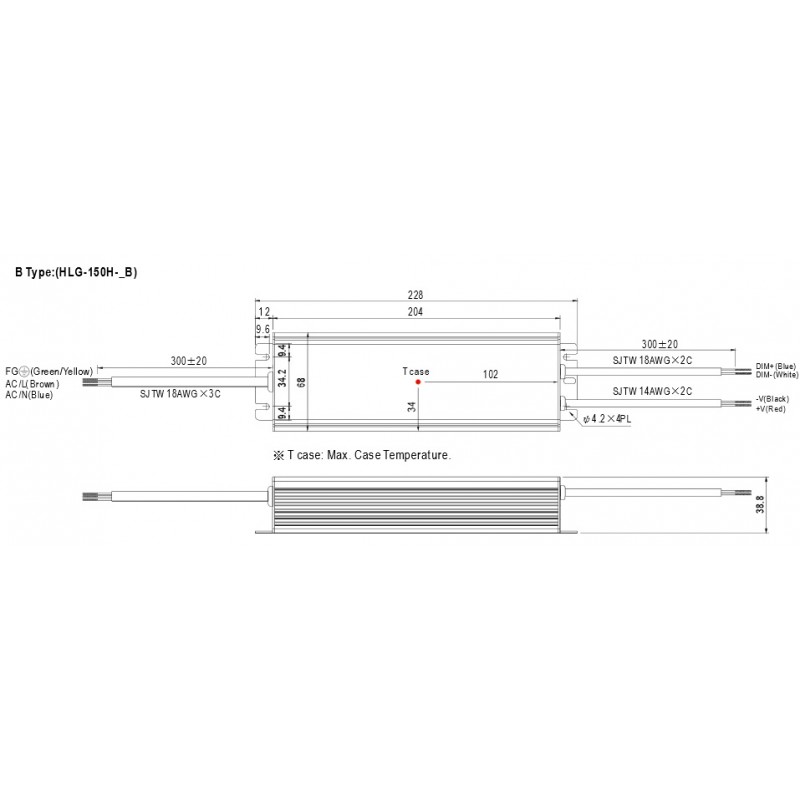

  • dimensions: 228x68x38,8mm
  • weight: 1150g

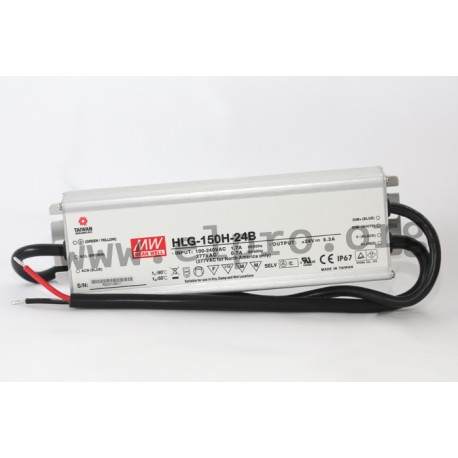

Meanwell HLG-150H_B series

HLG-150H-24B

36536 HLG-150H-24B HLG-150H-24B 4711287449791 Mean Well LED driver series HLG-150H. LED drivers in a metal housing (IP67) with a constant current, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and 150W. These devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-150H-12B, HLG-150H-15B, HLG-150H-20B, HLG-150H-24B, HLG-150H-30B, HLG-150H-36B, HLG-150H-42B, HLG-150H-48B and HLG-150H-54B. single output output: 150 to 153,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 228x68x38,8mm weight: 1150g

Specifications

manufacturer
Manufacturer's name HLG-150H-24B
GTIN 4711287449791
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 93
Output voltage tolerance: [%] 1
Output power [W] 151,2
Ripple [mVp-p] 150
Data Sheet

Unit price

40,29 €

Volume discounts

Quantity Unit price
50 + 39,29 €

Stock: 569
Next incoming goods:
CW 04/2025
504 units

Further delivery:
CW 16/2025
