HLG-150H-48A

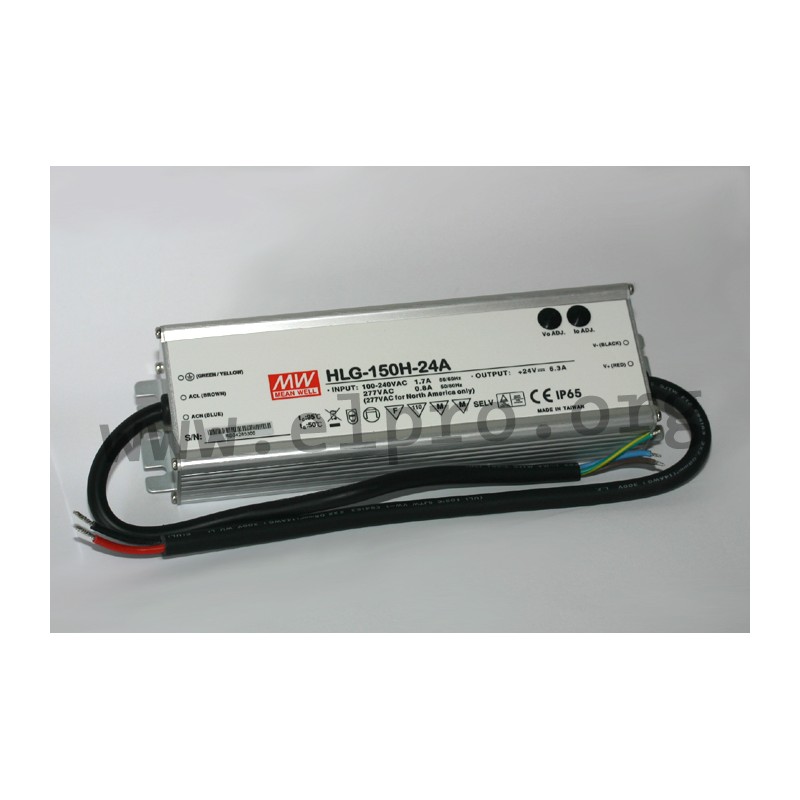

Mean Well LED driver series HLG-150H

LED drivers in a metal housing (IP65) with a constant current, the current limitation, 150W as well as a potentiometer for adjusting the output voltage. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-150H-12A, HLG-150H-15A, HLG-150H-20A, HLG-150H-24A, HLG-150H-30A, HLG-150H-36A, HLG-150H-42A, HLG-150H-48A and HLG-150H-54A.

  • single output
  • output: 150 to 153,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C

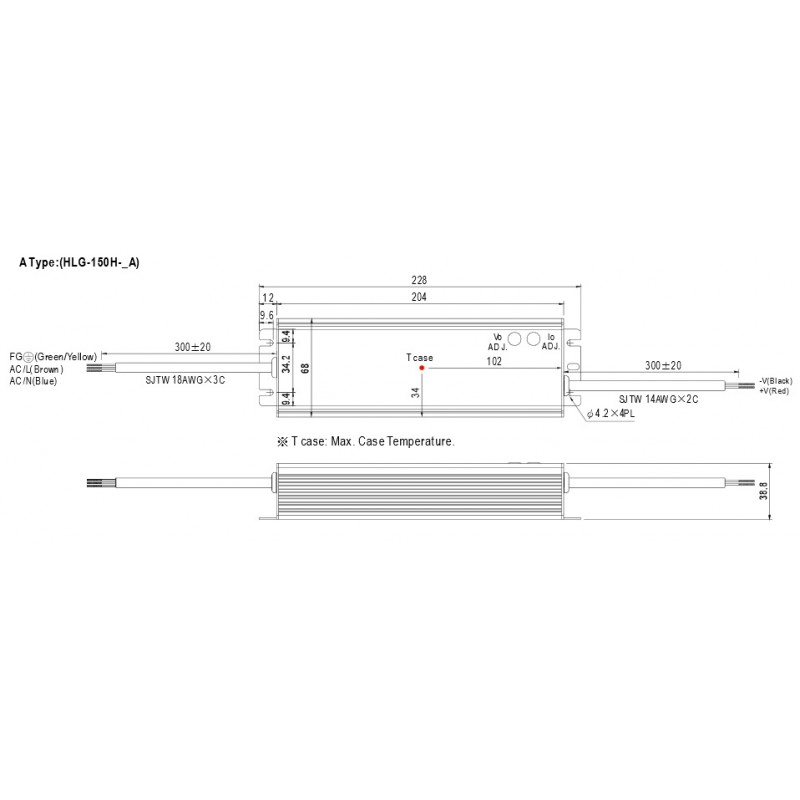

  • dimensions: 228x68x38,8mm
  • weight: 1150g

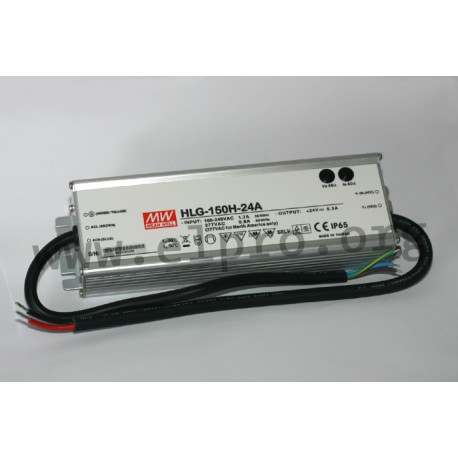

Meanwell HLG-150H series

HLG-150H-48A

35594 HLG-150H-48A HLG-150H-48A 4711287449937 Mean Well LED driver series HLG-150H. LED drivers in a metal housing (IP65) with a constant current, the current limitation, 150W as well as a potentiometer for adjusting the output voltage. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-150H-12A, HLG-150H-15A, HLG-150H-20A, HLG-150H-24A, HLG-150H-30A, HLG-150H-36A, HLG-150H-42A, HLG-150H-48A and HLG-150H-54A. single output output: 150 to 153,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 228x68x38,8mm weight: 1150g

Specifications

manufacturer
Manufacturer's name HLG-150H-48A
GTIN 4711287449937
Output voltage [V] 48
Phase 2 phase
Output current adjustment [A] 1,92...3,2
Efficiency [%] 94
Output voltage tolerance: [%] 1
Output power [W] 153,6
Output voltage adjustment [V] 43...53
Ripple [mV] 200
Data Sheet

Unit price

44,39 €

Volume discounts

Quantity Unit price
50 + 42,89 €

Stock: 151
Further delivery:
CW 11/2025
