HLG-150H-48AB

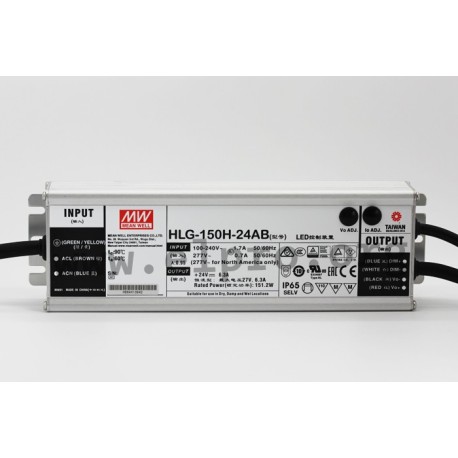

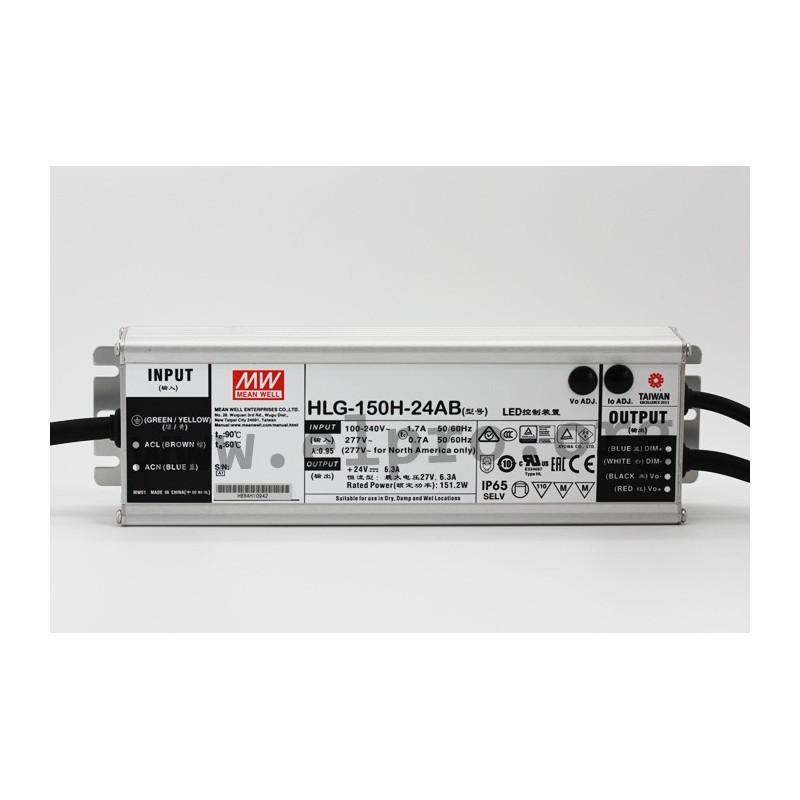

Mean Well LED driver series HLG-150H

LED drivers in a metal housing (IP65) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a constant current and 150W. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in potentiometer for adjusting the output voltage / current limitation as well as a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HLG-150H-12AB, HLG-150H-15AB, HLG-150H-20AB, HLG-150H-24AB, HLG-150H-30AB, HLG-150H-36AB, HLG-150H-42AB, HLG-150H-48AB and HLG-150H-54AB.

  • single output
  • output: 150 to 153,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 228x68x38,8mm
  • weight: 1150g
HLG-150H-48AB, Mean Well LED drivers, 150W, IP65, CV and CC (mixed mode), adjustable, dimmable, HLG-150H series

HLG-150H-48AB

244610 HLG-150H-48AB HLG-150H-48AB 4711287449944 Mean Well LED driver series HLG-150H. LED drivers in a metal housing (IP65) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a constant current and 150W. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in potentiometer for adjusting the output voltage / current limitation as well as a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HLG-150H-12AB, HLG-150H-15AB, HLG-150H-20AB, HLG-150H-24AB, HLG-150H-30AB, HLG-150H-36AB, HLG-150H-42AB, HLG-150H-48AB and HLG-150H-54AB. single output output: 150 to 153,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 228x68x38,8mm weight: 1150g

Specifications

manufacturer
Manufacturer's name HLG-150H-48AB
GTIN 4711287449944
Data Sheet

Unit price

48,39 €

Stock: 0
Further delivery:
CW 11/2025
