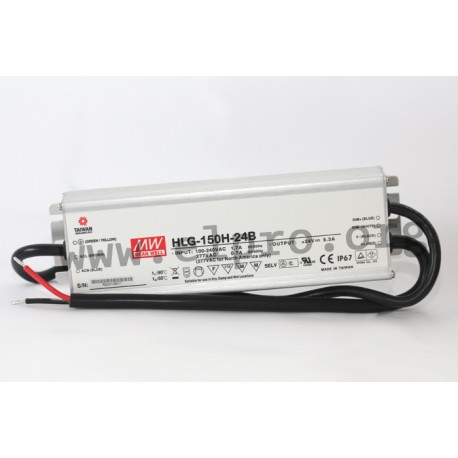

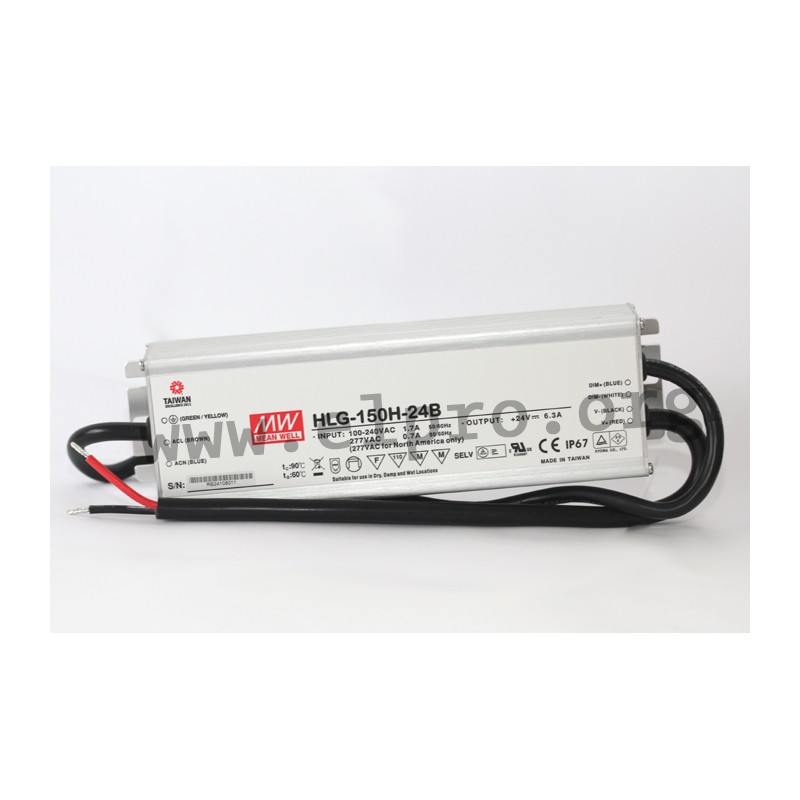

HLG-150H-15B

Mean Well LED driver series HLG-150H

LED drivers in a metal housing (IP67) with a constant current, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and 150W. These devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-150H-12B, HLG-150H-15B, HLG-150H-20B, HLG-150H-24B, HLG-150H-30B, HLG-150H-36B, HLG-150H-42B, HLG-150H-48B and HLG-150H-54B.

  • single output
  • output: 150 to 153,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 228x68x38,8mm
  • weight: 1150g
HLG-150H-15B, Mean Well LED drivers, 150W, IP67, dimmable, HLG-150H_B series

HLG-150H-15B

135834 HLG-150H-15B HLG-150H-15B 4711287449715 Mean Well LED driver series HLG-150H. LED drivers in a metal housing (IP67) with a constant current, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and 150W. These devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-150H-12B, HLG-150H-15B, HLG-150H-20B, HLG-150H-24B, HLG-150H-30B, HLG-150H-36B, HLG-150H-42B, HLG-150H-48B and HLG-150H-54B. single output output: 150 to 153,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 228x68x38,8mm weight: 1150g

Specifications

manufacturer
Manufacturer's name HLG-150H-15B
GTIN 4711287449715
Output voltage [V] 15
Efficiency [%] 92
Output voltage tolerance: [%] 2
Output power [W] 150
Ripple [mVp-p] 150
Data Sheet

Unit price

47,49 €

Volume discounts

Quantity Unit price
50 + 46,49 €

Stock: 3
Further delivery:
CW 11/2025
