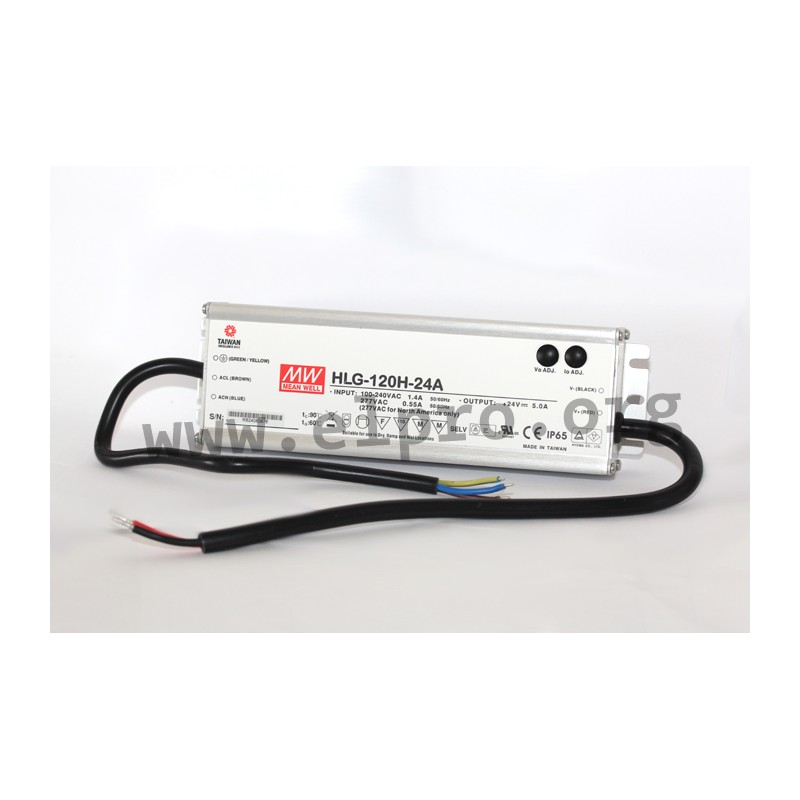

HLG-120H-24A

Mean Well LED driver series HLG-120H

LED drivers in a metal housing (IP65) with a constant current/constant voltage (mixed mode) and 120W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547 and have a built-in potentiometer for adjusting the output voltage / current limitation as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-120H-12A, HLG-120H-15A, HLG-120H-20A, HLG-120H-24A, HLG-120H-30A, HLG-120H-36A, HLG-120H-42A, HLG-120H-48A and HLG-120H-54A.

  • single output
  • output: 120 to 124,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C

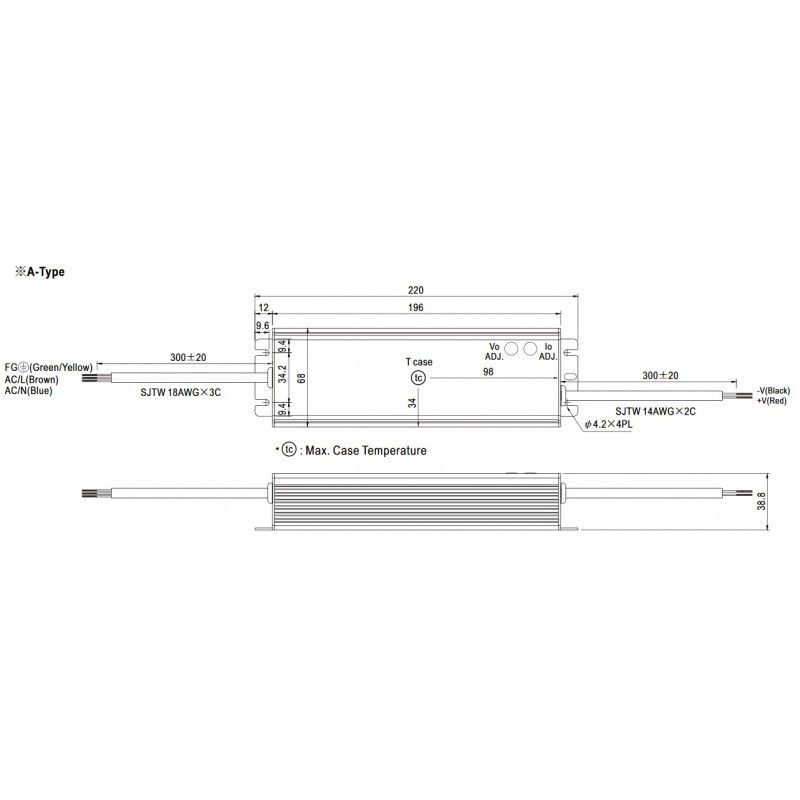

  • dimensions: 220x68x38,8mm
  • weight: 1120g

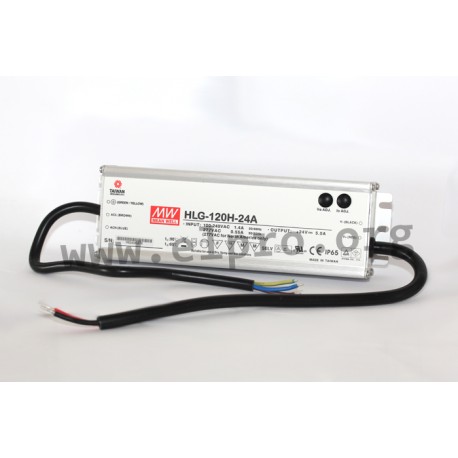

Meanwell HLG-120H_A series

HLG-120H-24A

36548 HLG-120H-24A HLG-120H-24A 4711287449418 Mean Well LED driver series HLG-120H. LED drivers in a metal housing (IP65) with a constant current/constant voltage (mixed mode) and 120W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547 and have a built-in potentiometer for adjusting the output voltage / current limitation as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-120H-12A, HLG-120H-15A, HLG-120H-20A, HLG-120H-24A, HLG-120H-30A, HLG-120H-36A, HLG-120H-42A, HLG-120H-48A and HLG-120H-54A. single output output: 120 to 124,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 220x68x38,8mm weight: 1120g

Specifications

manufacturer
Manufacturer's name HLG-120H-24A
GTIN 4711287449418
Output voltage [V] 24
Efficiency [%] 93
Output current range [A] 5
Output voltage tolerance: [%] 1
Output power [W] 120
Ripple [mVp-p] 150
Data Sheet

Unit price

38,99 €

Volume discounts

Quantity Unit price
50 + 37,99 €

Stock: 546
Next incoming goods:
CW 48/2024
504 units

Further delivery:
CW 12/2025
