HLG-120H-15B

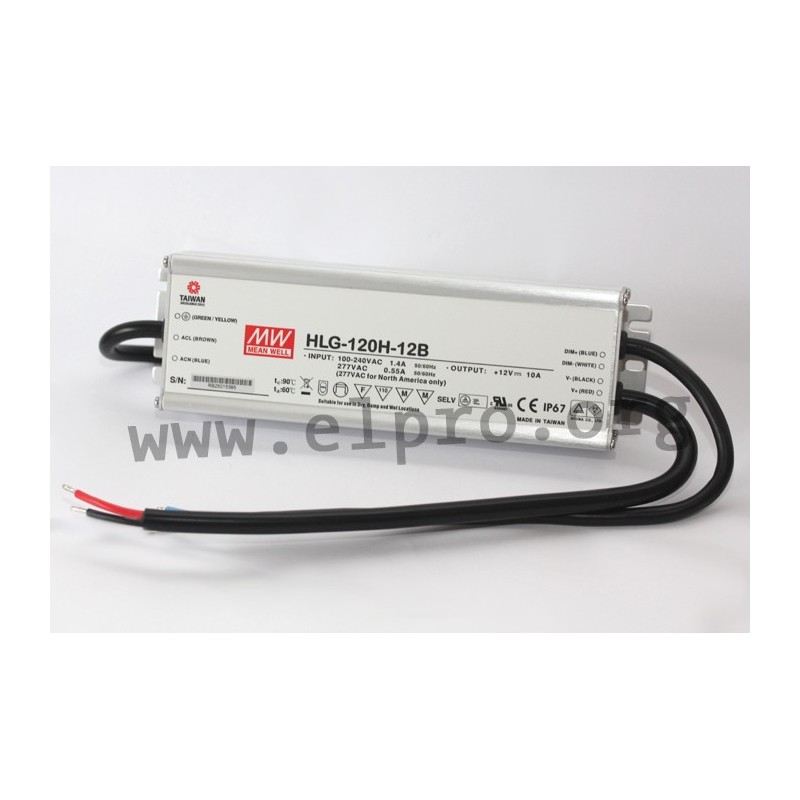

Mean Well LED driver series HLG-120H

LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a constant current / constant voltage (mixed mode) and 120W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-120H-12B, HLG-120H-15B, HLG-120H-20B, HLG-120H-24B, HLG-120H-30B, HLG-120H-36B, HLG-120H-42B, HLG-120H-48B and HLG-120H-54B.

  • single output
  • output: 120 to 124,2 Watt
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80 °C
  • weight: 1120g

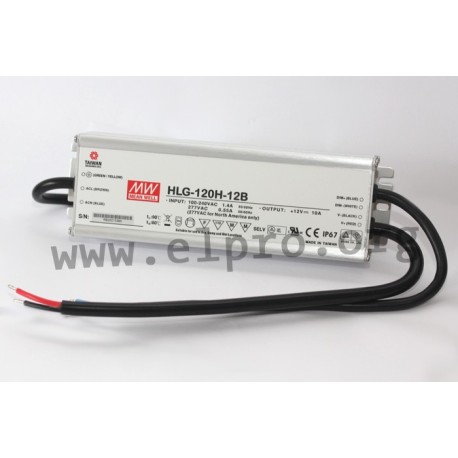

HLG-120H-15B, Mean Well LED drivers, 120W, IP67, CV and CC mixed mode, dimmable, HLG-120H series

HLG-120H-15B

244589 HLG-120H-15B HLG-120H-15B 4711287449357 Mean Well LED driver series HLG-120H. LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a constant current / constant voltage (mixed mode) and 120W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-120H-12B, HLG-120H-15B, HLG-120H-20B, HLG-120H-24B, HLG-120H-30B, HLG-120H-36B, HLG-120H-42B, HLG-120H-48B and HLG-120H-54B. single output output: 120 to 124,2 Watt input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80 °C weight: 1120g

Specifications

manufacturer
Manufacturer's name HLG-120H-15B
GTIN 4711287449357
Output voltage [V] 15
Efficiency [%] 92
Output current [A] 8
Output voltage tolerance: [%] 2
Output power [W] 120
Ripple [mVp-p] 150
Data Sheet

Unit price

46,99 €

Stock: 0
Further delivery:
CW 16/2025
