HLG-120H-24

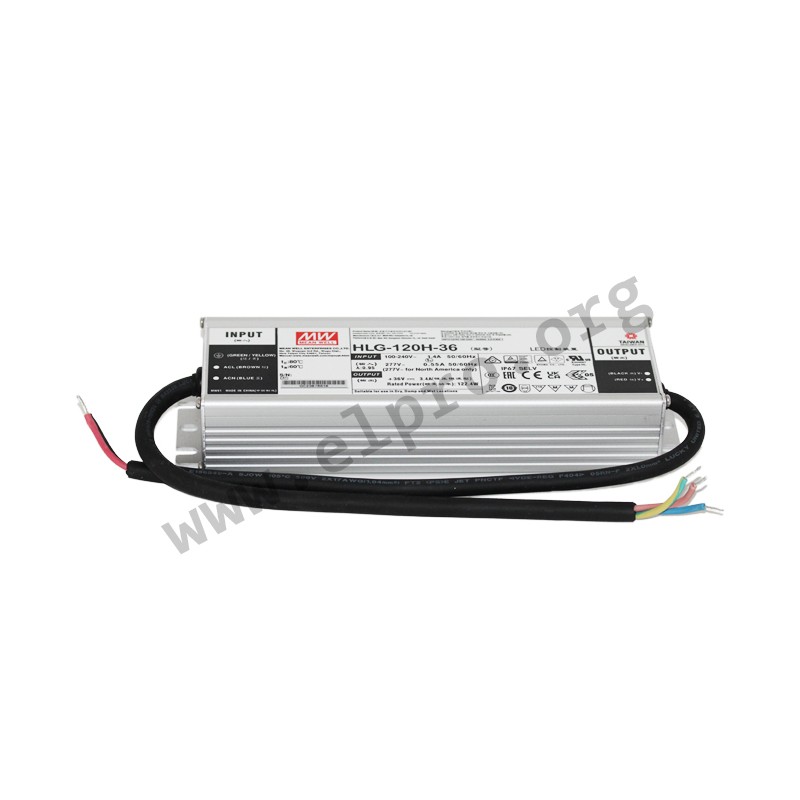

Mean Well LED driver series HLG-120H

LED drivers in a metal case (IP67) with a wide input range, 120W and a constant current/constant voltage. These SELV compliant devices are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-120H-12, HLG-120H-15, HLG-120H-20, HLG-120H-24, HLG-120H-30, HLG-120H-36, HLG-120H-42, HLG-120H-48 and HLG-120H-54.

  • single output
  • output: 120 to 124,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 1120g

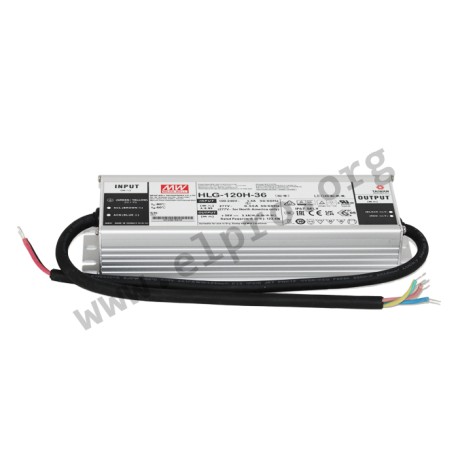

HLG-120H-24, Mean Well LED drivers, 120W, IP67, CV and CC mixed mode, fixed preset, HLG-120H series

HLG-120H-24

135825 HLG-120H-24 HLG-120H-24 4711287449401 Mean Well LED driver series HLG-120H. LED drivers in a metal case (IP67) with a wide input range, 120W and a constant current/constant voltage. These SELV compliant devices are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-120H-12, HLG-120H-15, HLG-120H-20, HLG-120H-24, HLG-120H-30, HLG-120H-36, HLG-120H-42, HLG-120H-48 and HLG-120H-54. single output output: 120 to 124,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C weight: 1120g

Specifications

manufacturer
Manufacturer's name HLG-120H-24
GTIN 4711287449401
Output voltage [V] 24
Output current [A] 5
Output voltage tolerance: [%] 1
Output power [W] 120
Ripple [mVp-p] 150
Data Sheet

Unit price

40,59 €

Volume discounts

Quantity Unit price
50 + 39,59 €

Stock: 140
Further delivery:
CW 11/2025
