HLG-120H-C1400A

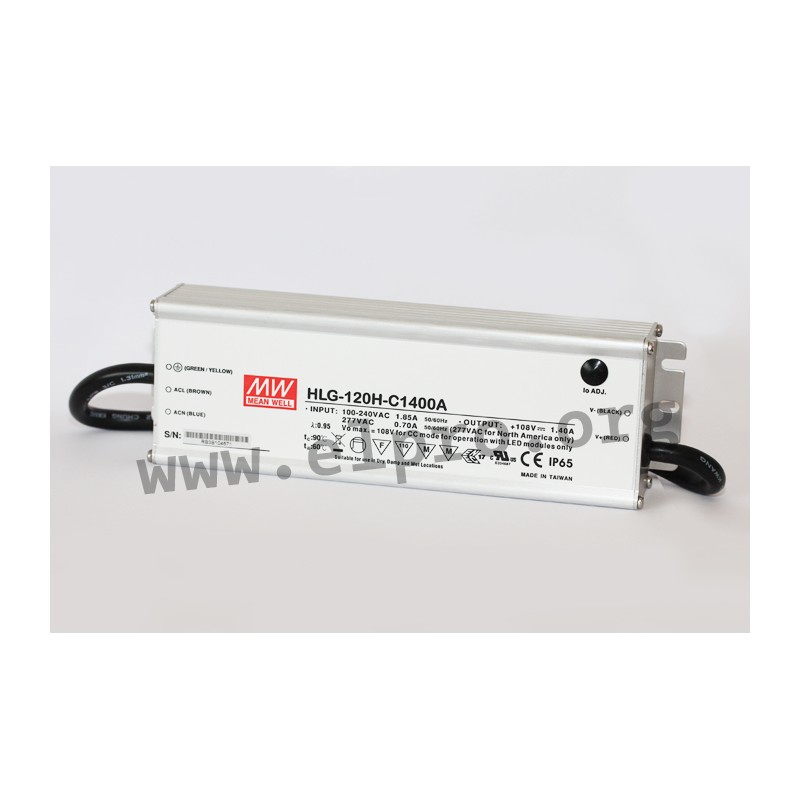

Mean Well LED driver series HLG-120H-C

LED drivers in a metal housing (IP65) with a high output voltage, 150W and a constant current. These devices comply with EN55015, are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are suitable for LED lighting applications. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation and are not dimmable. We offer the following types of this Mean Well series: HLG-120H-C350A, HLG-120H-C500A, HLG-120H-C700A, HLG-120H-C1050A and HLG-120H-C1400A.

  • single output
  • output: 150 to 155,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C

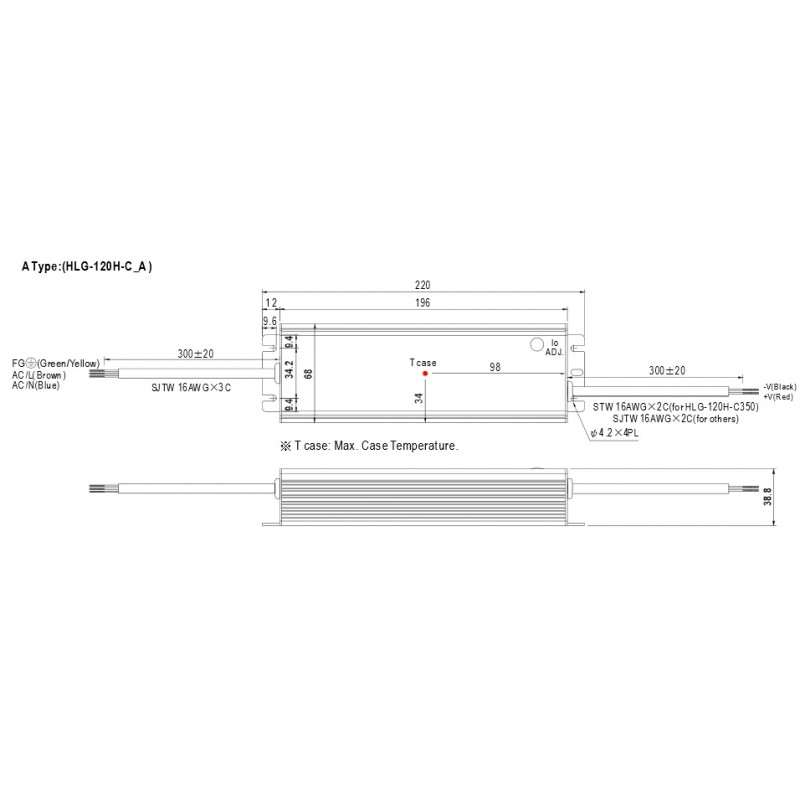

  • dimensions: 220x68x38,8mm
  • weight: 1040g

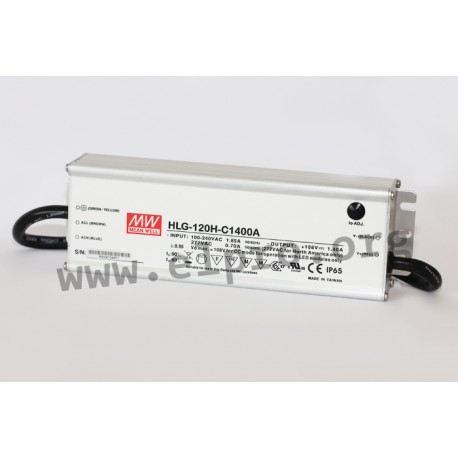

Meanwell HLG-120H-C series

HLG-120H-C1400A

41253 HLG-120H-C1400A HLG-120H-C1400A 4711287452128 Mean Well LED driver series HLG-120H-C. LED drivers in a metal housing (IP65) with a high output voltage, 150W and a constant current. These devices comply with EN55015, are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are suitable for LED lighting applications. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation and are not dimmable. We offer the following types of this Mean Well series: HLG-120H-C350A, HLG-120H-C500A, HLG-120H-C700A, HLG-120H-C1050A and HLG-120H-C1400A. single output output: 150 to 155,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 220x68x38,8mm weight: 1040g

Specifications

manufacturer
Manufacturer's name HLG-120H-C1400A
GTIN 4711287452128
Output voltage [V] 54...108
Phase 2 phase
Output current adjustment [A] 0,7...1,4
Efficiency [%] 93,5
Output power [W] 151,2
Ripple [mVp-p] 1000
Data Sheet

Unit price

45,99 €

Volume discounts

Quantity Unit price
50 + 44,99 €

Stock: 0
Next incoming goods:
CW 48/2024
20 units

Further delivery:
CW 11/2025
