HLG-120H-C1050A

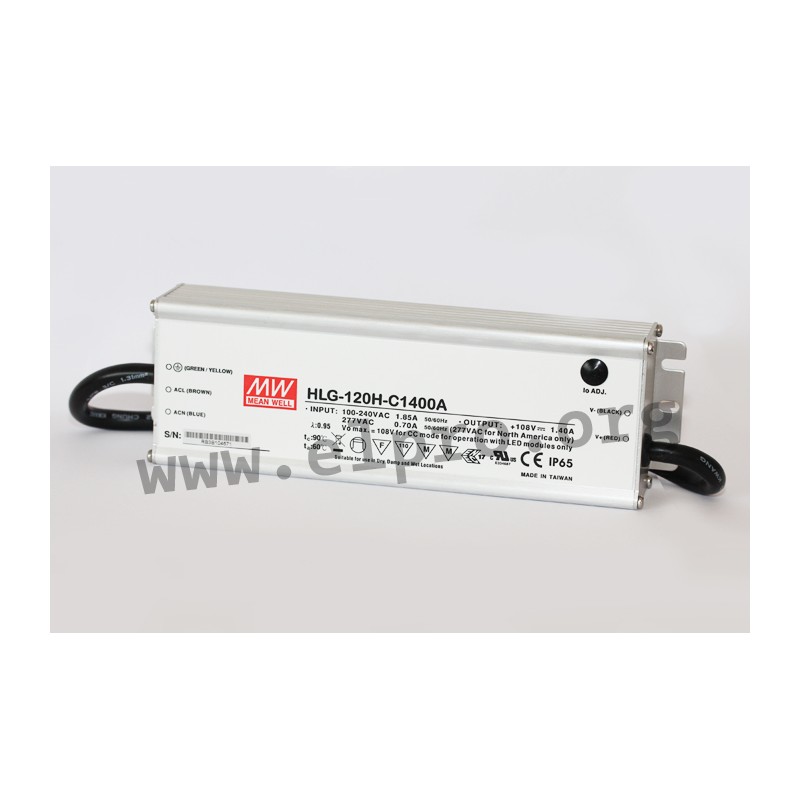

Mean Well LED driver series HLG-120H-C

LED drivers in a metal housing (IP65) with a high output voltage, 150W and a constant current. These devices comply with EN55015, are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are suitable for LED lighting applications. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation and are not dimmable. We offer the following types of this Mean Well series: HLG-120H-C350A, HLG-120H-C500A, HLG-120H-C700A, HLG-120H-C1050A and HLG-120H-C1400A.

  • single output
  • output: 150 to 155,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 220x68x38,8mm
  • weight: 1040g
Meanwell HLG-120H-C series

HLG-120H-C1050A

41252 HLG-120H-C1050A HLG-120H-C1050A 4711287452098 Mean Well LED driver series HLG-120H-C. LED drivers in a metal housing (IP65) with a high output voltage, 150W and a constant current. These devices comply with EN55015, are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are suitable for LED lighting applications. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation and are not dimmable. We offer the following types of this Mean Well series: HLG-120H-C350A, HLG-120H-C500A, HLG-120H-C700A, HLG-120H-C1050A and HLG-120H-C1400A. single output output: 150 to 155,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 220x68x38,8mm weight: 1040g

Specifications

manufacturer
Manufacturer's name HLG-120H-C1050A
GTIN 4711287452098
Output voltage [V] 74...148
Phase 2 phase
Output current adjustment [A] 0,525...1,05
Efficiency [%] 94
Output power [W] 155,4
Ripple [mVp-p] 1000
Data Sheet

Unit price

43,89 €

Volume discounts

Quantity Unit price
50 + 42,39 €

Stock: 33
Further delivery:
CW 11/2025
