HLG-120H-C1050B

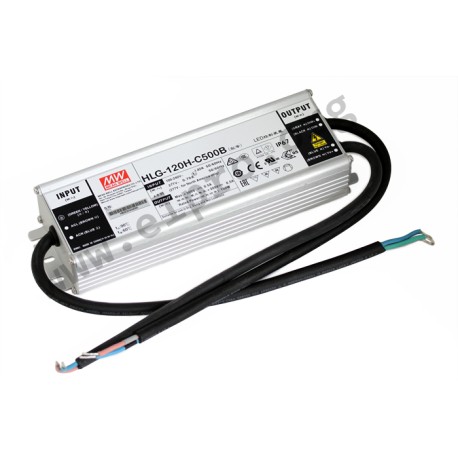

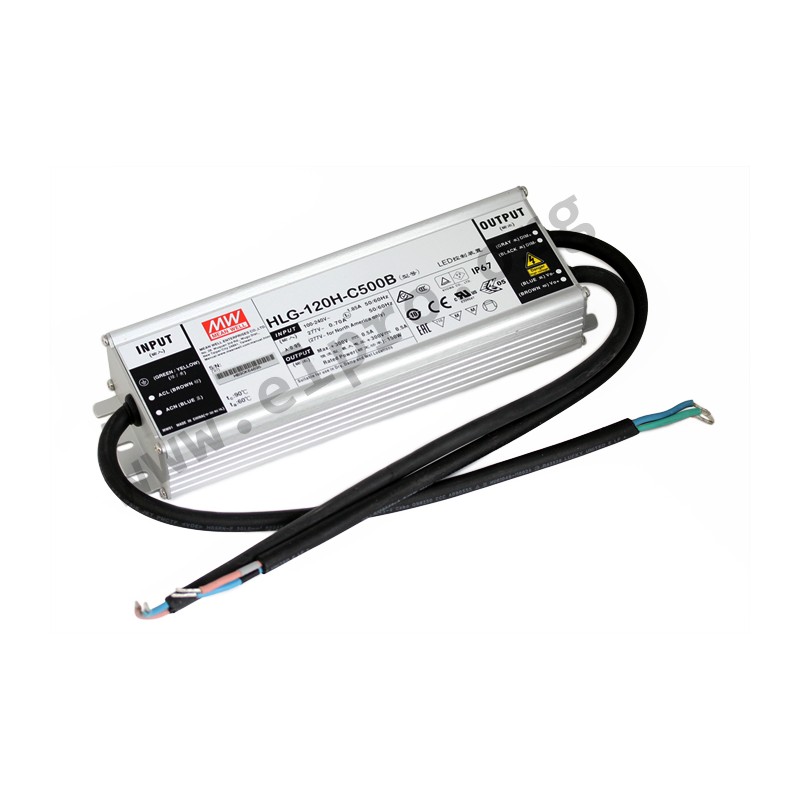

Mean Well LED driver series HLG-120H-C

LED drivers in a metal case (IP67) with a constant current, 150W and a high voltage output. These devices comply with EN55015 and are suitable for LED lighting applications. They are protected against short circuit, overload (auto recovery), overvoltage and overtemperature and comply with a 3 in 1 dimming function (adjustable 1 to 10V DC, 10V PWM) as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-120H-C350B, HLG-120H-C500B, HLG-120H-C700V, HLG-120H-C1050B and HLG-120H-C1400B.

  • single output
  • output: 150,5 to 155,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 1040g
HLG-120H-C1050B, Mean Well LED drivers, 150W, IP67, constant current, dimmable, HLG-120H-C series

HLG-120H-C1050B

135879 HLG-120H-C1050B HLG-120H-C1050B 4711287452111 Mean Well LED driver series HLG-120H-C. LED drivers in a metal case (IP67) with a constant current, 150W and a high voltage output. These devices comply with EN55015 and are suitable for LED lighting applications. They are protected against short circuit, overload (auto recovery), overvoltage and overtemperature and comply with a 3 in 1 dimming function (adjustable 1 to 10V DC, 10V PWM) as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-120H-C350B, HLG-120H-C500B, HLG-120H-C700V, HLG-120H-C1050B and HLG-120H-C1400B. single output output: 150,5 to 155,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C weight: 1040g

Specifications

manufacturer
Manufacturer's name HLG-120H-C1050B
GTIN 4711287452111
Output power [W] 155,4
Ripple [mVp-p] 1
Output voltage range [V] 74...148
Output current adjustment [A] 0,525...1,05
Data Sheet

Unit price

44,99 €

Volume discounts

Quantity Unit price
50 + 43,49 €

Stock: 10
Further delivery:
CW 11/2025
