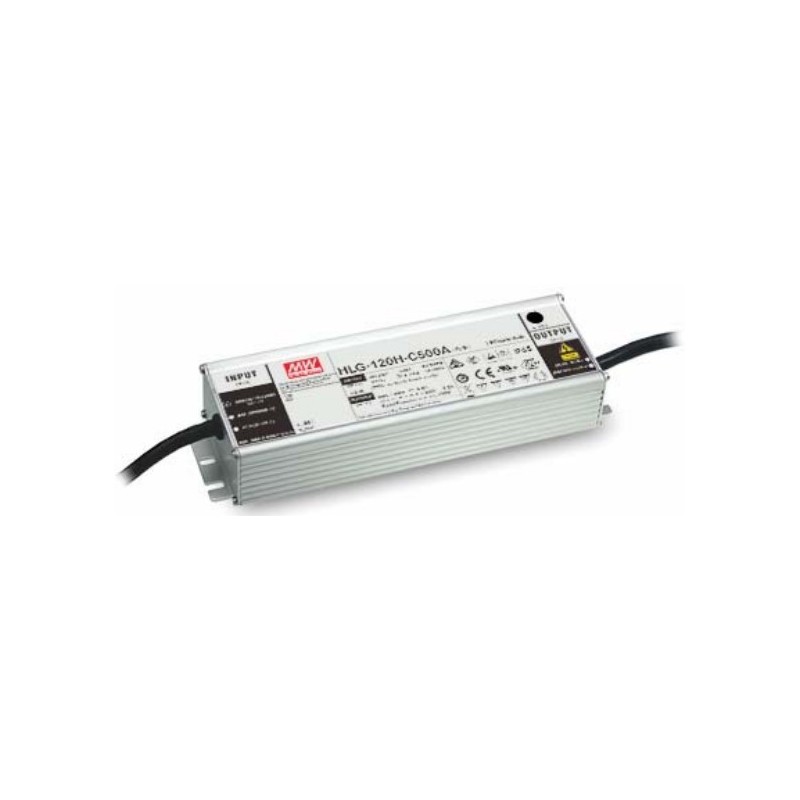

HLG-120H-C1050AB

Mean Well LED driver series HLG-120H-C

LED drivers in a metal case (IP65) with a constant current, a wide input range, 150W and a built-in active PFC function. These devices are protected against overload (auto recovery), overvoltage, overtemperature, as well as short circuit and comply with EN55015. They are suitable for LED lightning applications, have a 3 in 1 dimming function (1 to 10V DC, 10V PWM) and a built-in potentiometer for adjusting the output current. We offer the following types of this Mean Well series: HLG-120H-C350AB, HLG-120H-C500AB, HLG-120H-C700AB, HLG-120H-C1050AB and HLG-120H-C1400AB.

  • single output
  • output: 150 to 155,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • maximal leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 1040g

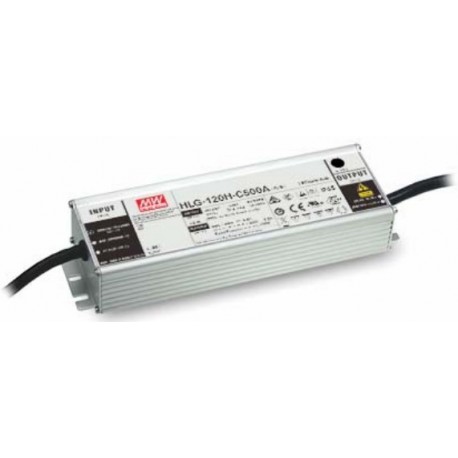

HLG-120H-C1050AB, Mean Well LED switching power supplies, 150W, IP65, adjustable, dimmable, HLG-120H-C series

HLG-120H-C1050AB

135878 HLG-120H-C1050AB HLG-120H-C1050AB 4711287452104 Mean Well LED driver series HLG-120H-C. LED drivers in a metal case (IP65) with a constant current, a wide input range, 150W and a built-in active PFC function. These devices are protected against overload (auto recovery), overvoltage, overtemperature, as well as short circuit and comply with EN55015. They are suitable for LED lightning applications, have a 3 in 1 dimming function (1 to 10V DC, 10V PWM) and a built-in potentiometer for adjusting the output current. We offer the following types of this Mean Well series: HLG-120H-C350AB, HLG-120H-C500AB, HLG-120H-C700AB, HLG-120H-C1050AB and HLG-120H-C1400AB. single output output: 150 to 155,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A maximal leakage current: &lt;0,75mA withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C weight: 1040g

Specifications

manufacturer
Manufacturer's name HLG-120H-C1050AB
GTIN 4711287452104
Efficiency [%] 94
Output power [W] 155,4
Ripple [mVp-p] 1000
Output voltage range [V] 74...148
Output current adjustment [A] 0,525...1,05
Data Sheet

Unit price

48,09 €

Volume discounts

Quantity Unit price
50 + 47,09 €

Stock: 12
Further delivery:
CW 16/2025
