HLG-100H-48A

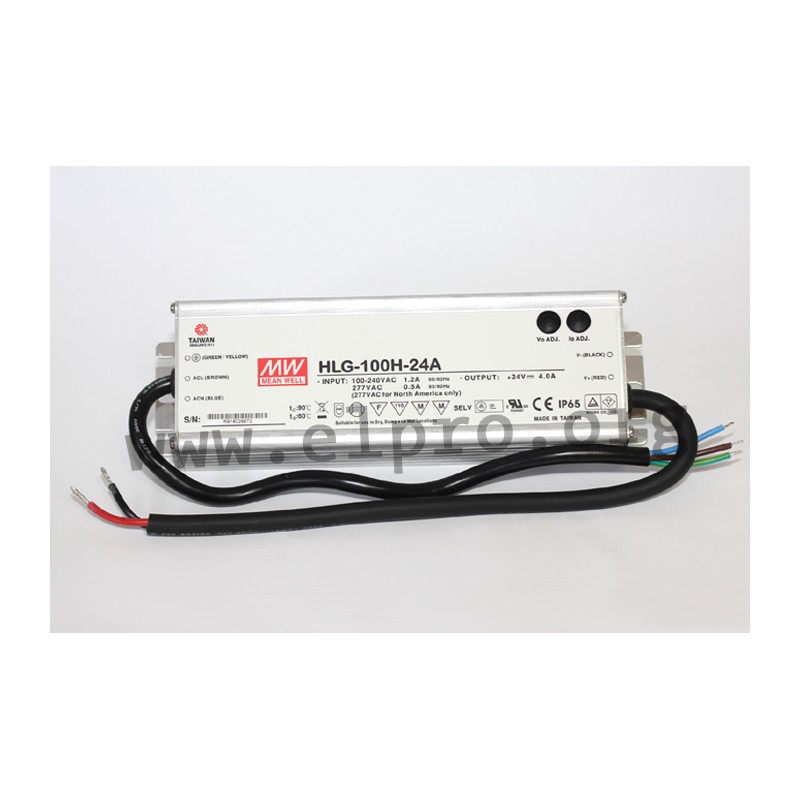

Mean Well LED driver series HLG-100H

LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode) and 100W. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are not dimmable and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-100H-20A, HLG-100H-24A, HLG-100H-30A, HLG-100H-36A, HLG-100H-42A, HLG-100H-48A and HLG-100H-54A.

  • single output
  • output: 95,4 to 96W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A/230V AC
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +70°C

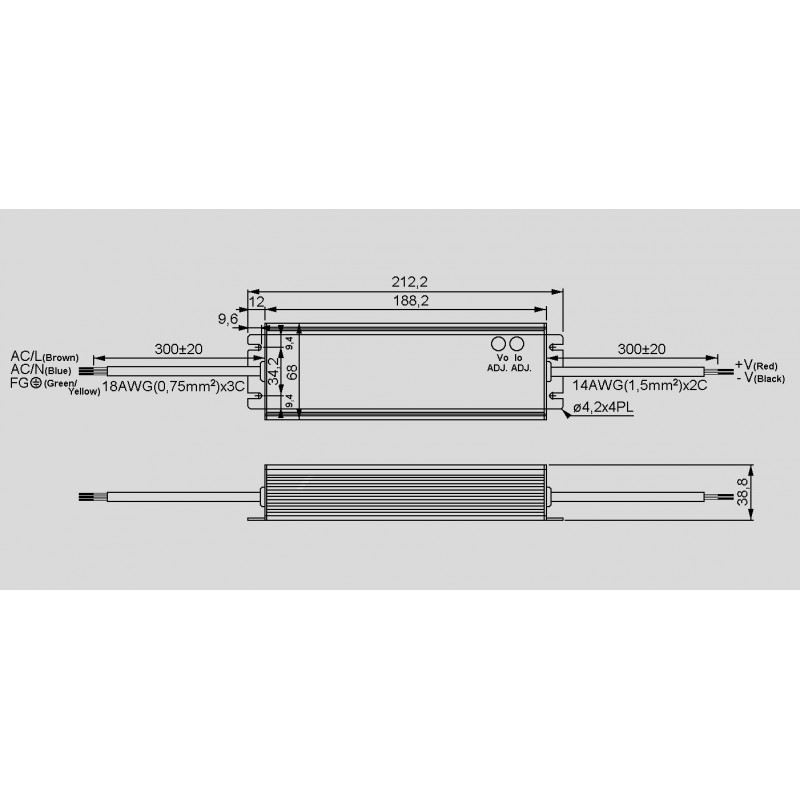

  • dimensions: 220x68x38,8mm
  • weight: 1120g

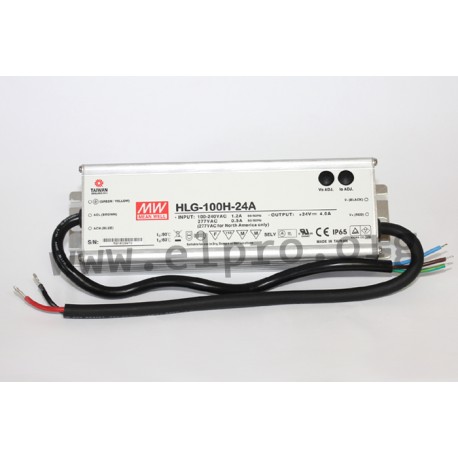

Meanwell HLG-100H Serie

HLG-100H-48A

35588 HLG-100H-48A HLG-100H-48A 4711287449234 Mean Well LED driver series HLG-100H. LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode) and 100W. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are not dimmable and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-100H-20A, HLG-100H-24A, HLG-100H-30A, HLG-100H-36A, HLG-100H-42A, HLG-100H-48A and HLG-100H-54A. single output output: 95,4 to 96W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A/230V AC withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +70°C dimensions: 220x68x38,8mm weight: 1120g

Specifications

manufacturer
Manufacturer's name HLG-100H-48A
GTIN 4711287449234
Output voltage [V] 48
Phase 2 phase
Output current adjustment [A] 1,25...2
Efficiency [%] 93,5
Output voltage tolerance: [%] 1
Output power [W] 96
Output voltage adjustment [V] 43...53
Ripple [mV] 200
Data Sheet

Unit price

42,49 €

Volume discounts

Quantity Unit price
50 + 41,09 €

Stock: 39
Further delivery:
CW 11/2025
