HLG-100H-54B

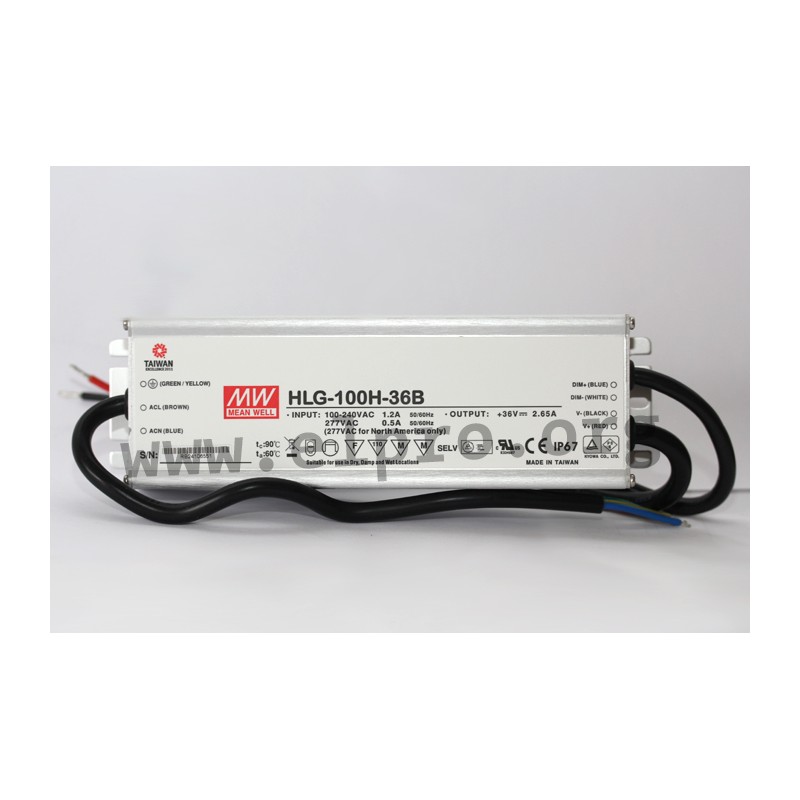

Mean Well LED driver series HLG-100H

LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and 100W. These devices are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-100H-20B, HLG-100H-24B, HLG-100H-30B, HLG-100H-36B, HLG-100H-42B, HLG-100H-48B and HLG-100H-54B.

  • single output
  • output: 95,4 to 96W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A/230V AC
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +70°C
  • dimensions: 220x68x38,8mm
  • weight: 1120g

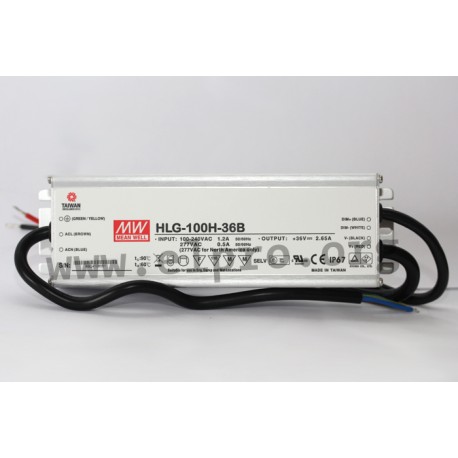

HLG-100H-54B, Mean Well LED drivers, 100W, IP67, dimmable, HLG-100H series

HLG-100H-54B

135821 HLG-100H-54B HLG-100H-54B 4711287449272 Mean Well LED driver series HLG-100H. LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and 100W. These devices are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-100H-20B, HLG-100H-24B, HLG-100H-30B, HLG-100H-36B, HLG-100H-42B, HLG-100H-48B and HLG-100H-54B. single output output: 95,4 to 96W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A/230V AC withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +70°C dimensions: 220x68x38,8mm weight: 1120g

Specifications

manufacturer
Manufacturer's name HLG-100H-54B
GTIN 4711287449272
Output voltage [V] 54
Phase 2 phase
Efficiency [%] 93
Output voltage tolerance: [%] 1
Output power [W] 95,58
Ripple [mVp-p] 200
Data Sheet

Unit price

45,69 €

Volume discounts

Quantity Unit price
50 + 44,69 €

Stock: 9
Further delivery:
CW 11/2025
