HLG-100H-54

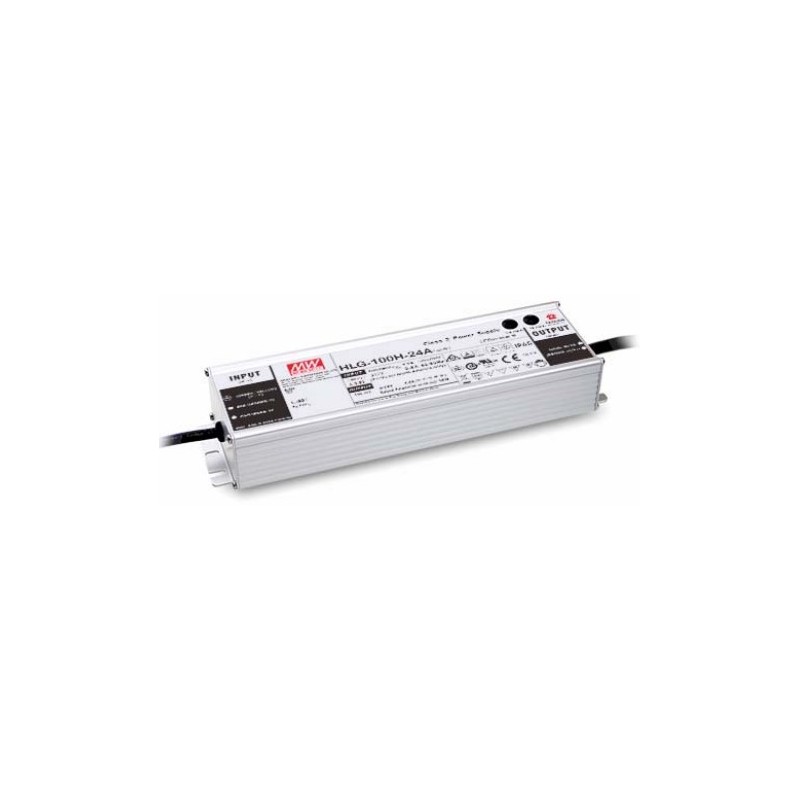

Mean Well LED driver series HLG-100H

LED drivers in a metal case (IP67) with a constant current/constant voltage (CC+CV), 96W and a wide input range. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against short circuit, overload, overvoltage as well as overtemperature. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-100H-20, HLG-100H-24, HLG-100H-30, HLG-100H-36, HLG-100H-42, HLG-100H-48 and HLG-100H-54.

  • single output
  • output: 95,4 to 96W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • overcurrent protection: 95 to 106%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 1120g

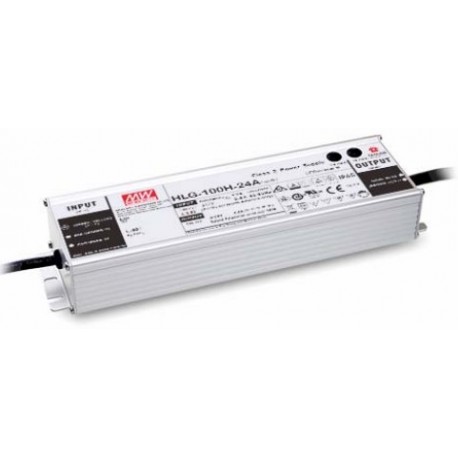

HLG-100H-54,Mean Well LED switching power supplies, 100W, IP67, fixed preset, HLG-100H series

HLG-100H-54

135819 HLG-100H-54 HLG-100H-54 4711287449258 Mean Well LED driver series HLG-100H. LED drivers in a metal case (IP67) with a constant current/constant voltage (CC+CV), 96W and a wide input range. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against short circuit, overload, overvoltage as well as overtemperature. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-100H-20, HLG-100H-24, HLG-100H-30, HLG-100H-36, HLG-100H-42, HLG-100H-48 and HLG-100H-54. single output output: 95,4 to 96W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A overcurrent protection: 95 to 106% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C weight: 1120g

Specifications

manufacturer
Manufacturer's name HLG-100H-54
GTIN 4711287449258
Output voltage [V] 54
Efficiency [%] 93
Output current [A] 1,77
Output voltage tolerance: [%] 1
Output power [W] 95,58
Ripple [mVp-p] 200
Data Sheet

Unit price

44,39 €

Volume discounts

Quantity Unit price
50 + 43,49 €

Stock: 6
Further delivery:
CW 16/2025
