HEP-600C-12

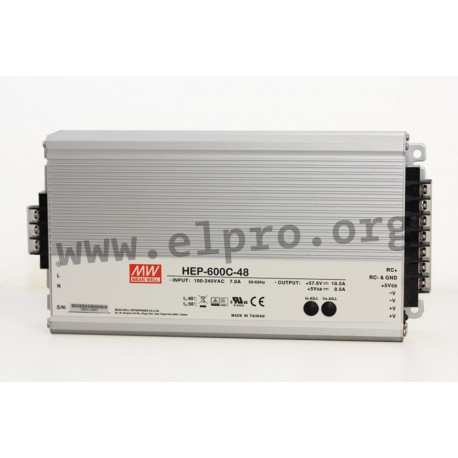

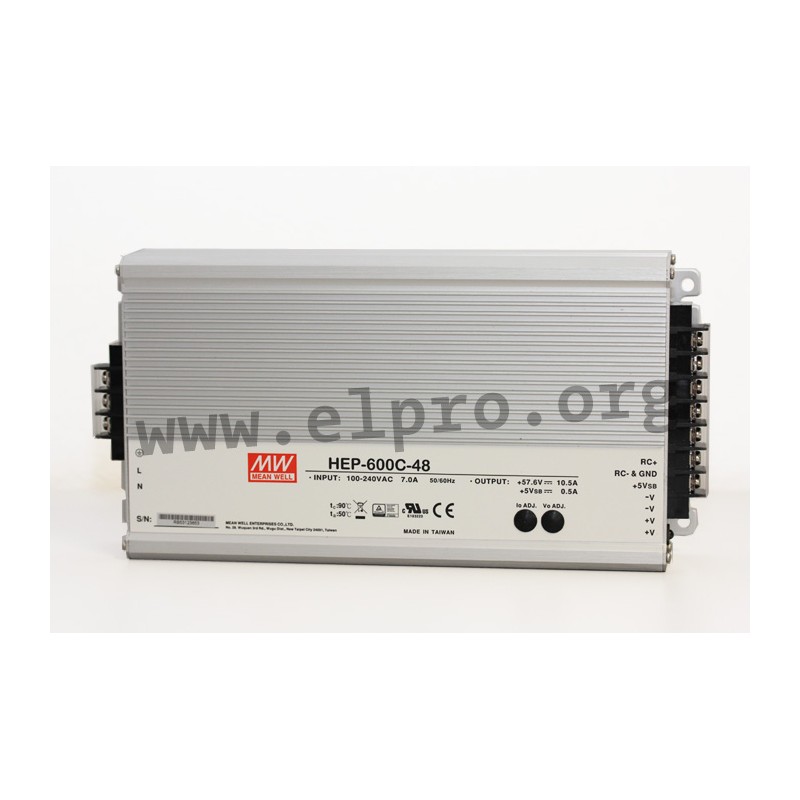

Mean Well charger series HEP-600C

Battery chargers in an aluminium housing with 600W, a universal input, a 3-stage charging curve, a three-coloured LED indicator and a low no-load power. These devices are suitable for lead-acid/Li-ion batteries as well as for harsh environments and comply with EN62368-1, EN55032 class A, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. They have a built-in active PFC function and are protected against overvoltage, reverse current, overtemperature as well as short circuit. Furthermore, the output current as and output voltage are adjustable through a built-in potentiometer. We offer the following types of this Mean Well series: HEP-600C-12, HEP-600C-24 and HEP-600C-48.

  • output: 600W
  • input voltage: 90 to 325V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +70°C

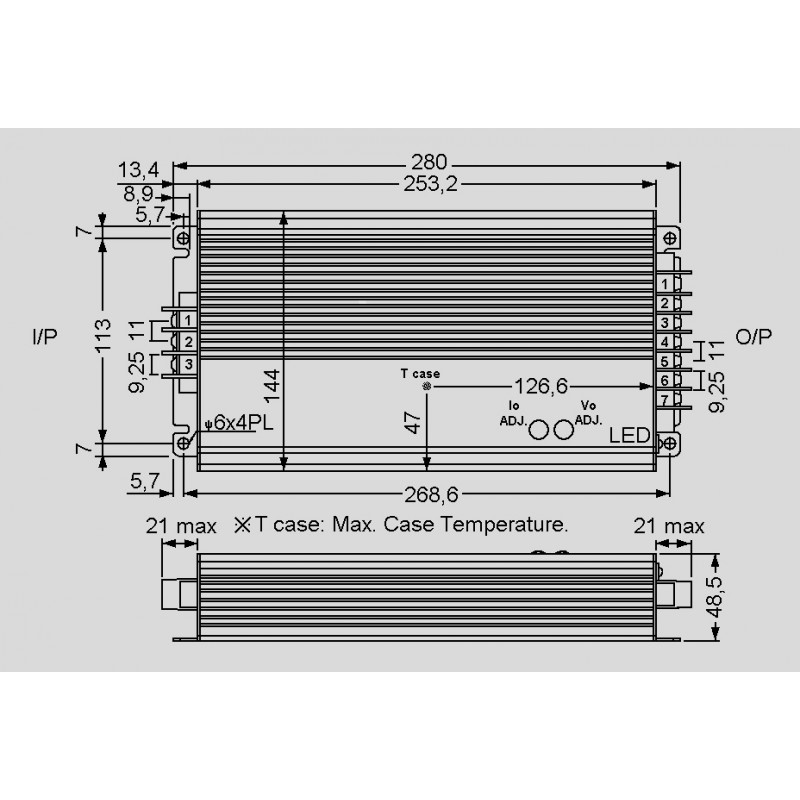

  • dimensions: 280x144x48,5mm
  • weight: 3900g
Meanwell HEP-600C series

HEP-600C-12

45065 HEP-600C-12 HEP-600C-12 4711287420400 Mean Well charger series HEP-600C. Battery chargers in an aluminium housing with 600W, a universal input, a 3-stage charging curve, a three-coloured LED indicator and a low no-load power. These devices are suitable for lead-acid/Li-ion batteries as well as for harsh environments and comply with EN62368-1, EN55032 class A, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. They have a built-in active PFC function and are protected against overvoltage, reverse current, overtemperature as well as short circuit. Furthermore, the output current as and output voltage are adjustable through a built-in potentiometer. We offer the following types of this Mean Well series: HEP-600C-12, HEP-600C-24 and HEP-600C-48. output: 600W input voltage: 90 to 325V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC  withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +70°C dimensions: 280x144x48,5mm weight: 3900g

Specifications

manufacturer
Manufacturer's name HEP-600C-12
GTIN 4711287420400
Charging voltage [V] 14,4
Float charge voltage [V] 13,6
Recommended accu capacity [Ah] 135...400
Efficiency [%] 93,5
Transmission current, max. [mA] 35
Data Sheet

Unit price

201,59 €

Volume discounts

Quantity Unit price
50 + 194,89 €

Stock: 4
Further delivery:
CW 17/2025
