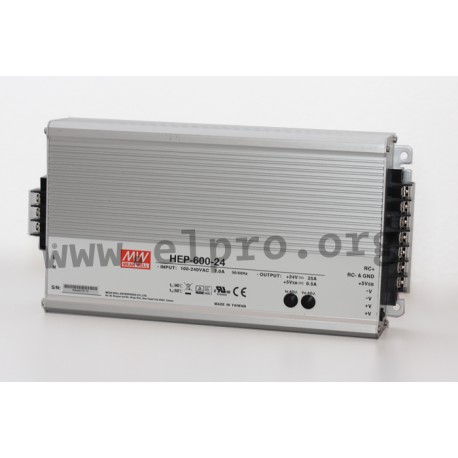

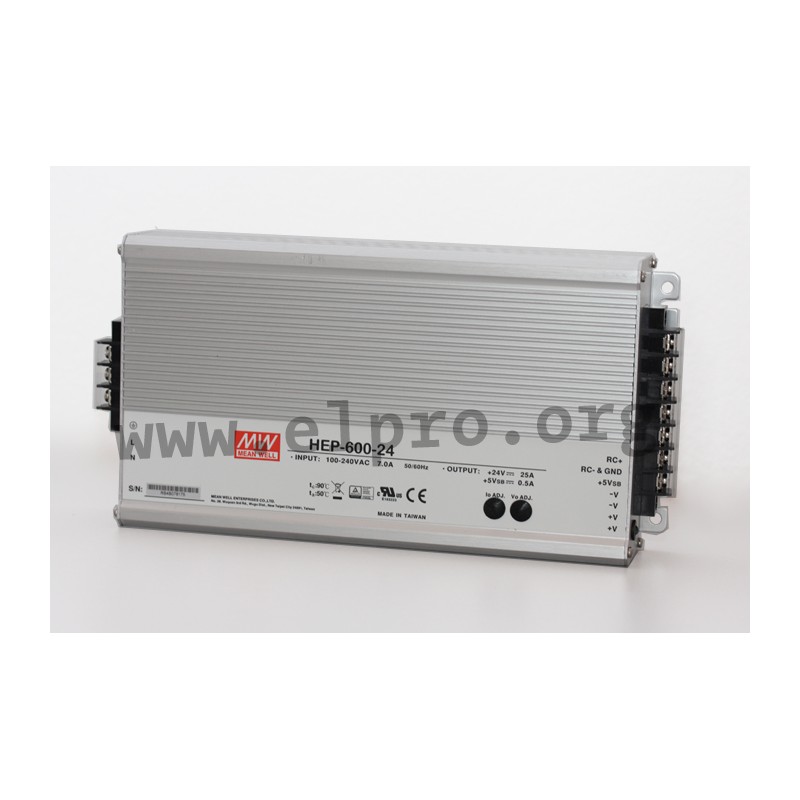

HEP-600-54

Mean Well power supply series HEP-600

Switching power supplies in an enclosed aluminium case with 600W, screw terminals, a built-in remote ON/OFF control, a universal input, a built-in auxiliary power (stand-by 5V/0,5A) and a low no-load power consumption (<0,5W). These devices have a built-in active PFC function and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for harsh environments and comply with EN60950, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: HEP-600-12, HEP-600-15, HEP-600-24, HEP-600-30, HEP-600-36, HEP-600-42, HEP-600-48 and HEP-600-54.

  • single output
  • output: 480 to 604,8W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • maximal leakage current: 0,75mA
  • overcurrent protection: 105 to 125%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +70°C
  • weight: 3900g
HEP-600-54, Mean Well switching power supplies, 600W, for harsh environments, HEP-600 series

HEP-600-54

123953 HEP-600-54 HEP-600-54 4711287433486 Mean Well power supply series HEP-600. Switching power supplies in an enclosed aluminium case with 600W, screw terminals, a built-in remote ON/OFF control, a universal input, a built-in auxiliary power (stand-by 5V/0,5A) and a low no-load power consumption (&lt;0,5W). These devices have a built-in active PFC function and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for harsh environments and comply with EN60950, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: HEP-600-12, HEP-600-15, HEP-600-24, HEP-600-30, HEP-600-36, HEP-600-42, HEP-600-48 and HEP-600-54. single output output: 480 to 604,8W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A maximal leakage current: 0,75mA overcurrent protection: 105 to 125% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +70°C weight: 3900g

Specifications

manufacturer
Manufacturer's name HEP-600-54
GTIN 4711287433486
Output voltage [V] 54
Efficiency [%] 96
Output current range [A] 11,2
Output voltage tolerance: [%] ±1
Output power [W] 604,8
Ripple [mVp-p] 350
Output voltage adjustment [V] 45,9...56,7
Data Sheet

Unit price

210,09 €

Volume discounts

Quantity Unit price
50 + 206,59 €

Stock: 22
Further delivery:
CW 12/2025
