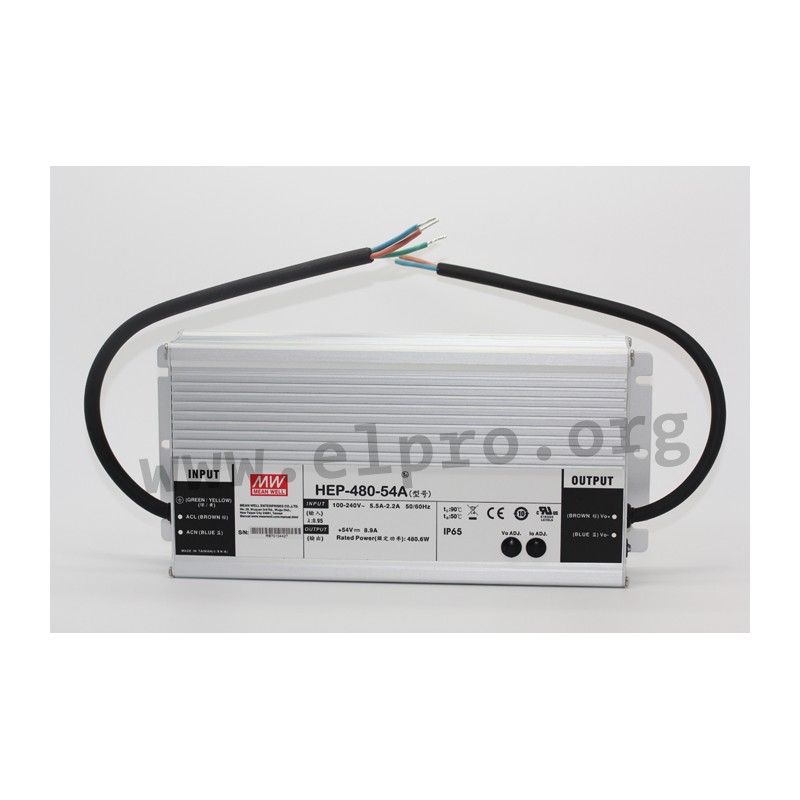

HEP-480-54A

Mean Well power supply series HEP-480

Switching power supplies in an enclosed aluminium housing (IP65) with 480W, a universal input, screw terminals and a surge immunity level of 6kV. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for harsh environments and comply with EN61000-3-2, EN61000-3-3, EN60950-1 as well as EN55032. We offer the following types of this Mean Well series: HEP-480-24A, HEP-480-36A, HEP-480-48A and HEP-480-54A.

  • single output
  • output: 478,8 to 480,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 35A
  • leakage current: <0,75mA
  • overcurrent protection: 105 to 125%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -55 to +65°C
  • weight: 2800g

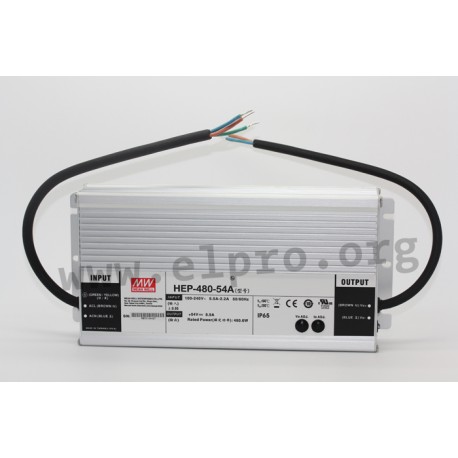

HEP-480-54A

HEP-480-54A

110210 HEP-480-54A HEP-480-54A 4711287433394 Mean Well power supply series HEP-480. Switching power supplies in an enclosed aluminium housing (IP65) with 480W, a universal input, screw terminals and a surge immunity level of 6kV. These&nbsp;devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for harsh environments and comply with&nbsp;EN61000-3-2, EN61000-3-3, EN60950-1 as well as EN55032. We offer the following types of this Mean Well series:&nbsp;HEP-480-24A, HEP-480-36A, HEP-480-48A and HEP-480-54A. single output output: 478,8 to 480,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 35A leakage current: &lt;0,75mA overcurrent protection: 105 to 125% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -55 to +65&deg;C weight: 2800g

Specifications

manufacturer
Manufacturer's name HEP-480-54A
GTIN 4711287433394
Output voltage [V] 54
Efficiency [%] 95
Output current [A] 8,9
Output voltage tolerance: [%] 1
Output power [W] 480,6
Output voltage adjustment [V] 45,9...56,7
Ripple [mVp-p] 350
Data Sheet

Unit price

167,59 €

Volume discounts

Quantity Unit price
50 + 164,09 €

Stock: 10
Further delivery:
CW 16/2025
