HEP-480-48

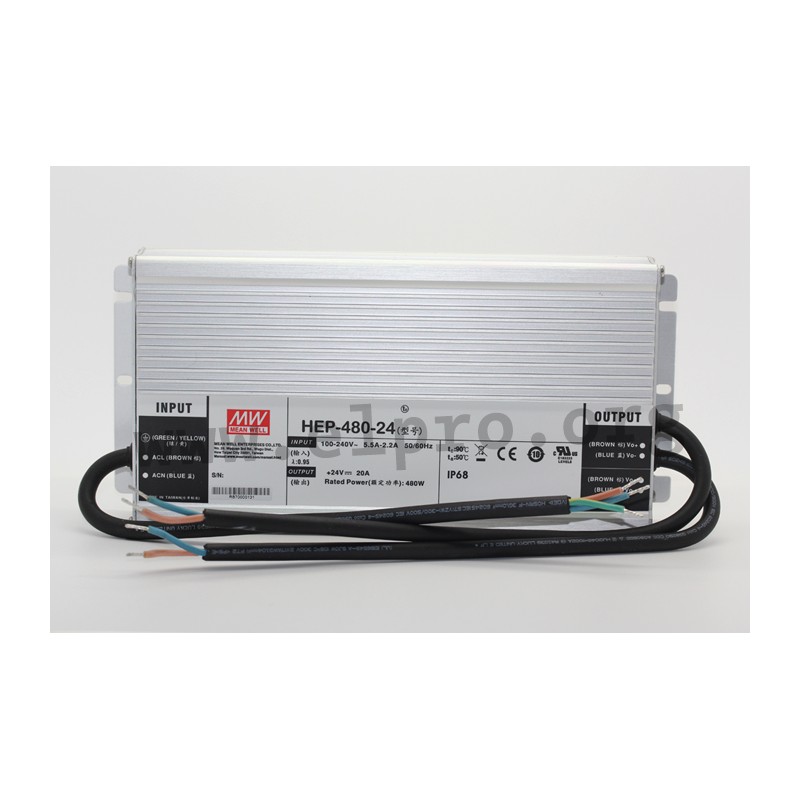

Switching power supplies series HEP-480 by Meanwell

Power supplies with aluminuim enclosure with screw terminals and universal input. The devices are protected against overload by pulsing hiccup shutdown (auto recovery), short circuit and overvoltage. Furthermore, they have a built-in active PFC function and conform EN61000-3-2,-3, EN55032, EN60950-1 as well as 6kV Surge Immunity Level. We are offering the following types by manufacturer Mean Well: HEP-480-24, HEP-480-36, HEP-480-48, HEP-480-54, HEP-480-24A, HEP-480-36A, HEP-480-48A and HEP-480-54A.

* input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
* input inrush current, max.: 35A
* leakage current, max.: 0,75mA
* over current protection: 105 to 125%
* withstand voltage
I/P-O/P: 3750V AC
I/P-FG: 2000V AC
O/P-FG: 1500V AC
* IP68
* operating temperature: -55 to +65°C
* weight: 2800g

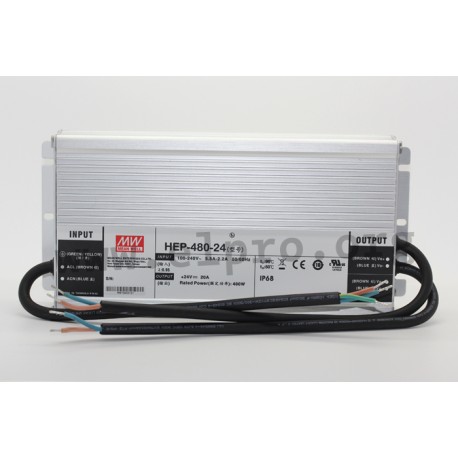

Meanwell HEP-480 series

HEP-480-48

110207 HEP-480-48 HEP-480-48 Switching power supplies series HEP-480 by Meanwell. Power supplies with aluminuim enclosure with screw terminals and universal input. The devices are protected against overload by pulsing hiccup shutdown (auto recovery), short circuit and overvoltage. Furthermore, they have a built-in active PFC function and conform EN61000-3-2,-3, EN55032, EN60950-1 as well as 6kV Surge Immunity Level. We are offering the following types by manufacturer Mean Well: HEP-480-24, HEP-480-36, HEP-480-48, HEP-480-54, HEP-480-24A, HEP-480-36A, HEP-480-48A and HEP-480-54A. * input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC* input inrush current, max.: 35A* leakage current, max.: 0,75mA* over current protection: 105 to 125%* withstand voltageI/P-O/P: 3750V ACI/P-FG: 2000V ACO/P-FG: 1500V AC* IP68* operating temperature: -55 to +65°C* weight: 2800g

Specifications

manufacturer
Manufacturer's name HEP-480-48
Output voltage [V] 48
Efficiency [%] 94,5
Output current [A] 10
Output voltage tolerance: [%] 1
Output power [W] 480
Ripple [mVp-p] 250
Data Sheet

Unit price

185,29 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 200 units or
multiples of 200.
