HEP-320-15A

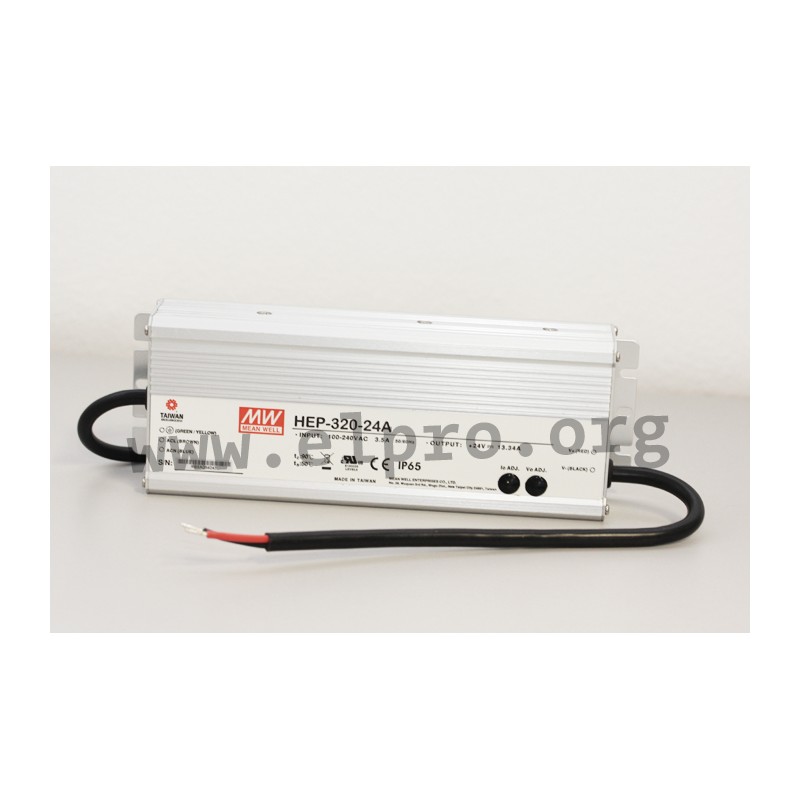

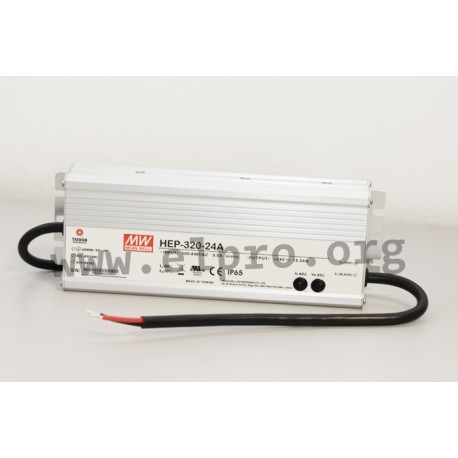

Mean Well power supply series HEP-320

Switching power supplies in an enclosed aluminium housing with 320W, screw terminals, a universal input and a surge immunity level of 6kV. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for harsh environments and comply with EN61000-3-2, EN61000-3-3, EN55022 as well as EN60950-1. We offer the following types of this Mean Well series: HEP-320-12A, HEP-320-15A, HEP-320-24A, HEP-320-36A, HEP-320-48A and HEP-320-54A.

  • single output
  • output: 264 to 321,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • leakage current: <0,75mA
  • overcurrent protection: 105 to 125%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -55 to +70°C
  • weight: 1880g
Mean Well HEP-320 series

HEP-320-15A

104813 HEP-320-15A HEP-320-15A 4711287433318 Mean Well power supply series HEP-320. Switching power supplies in an enclosed aluminium housing with 320W, screw terminals, a universal input and a surge immunity level of 6kV. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for harsh&nbsp;environments and comply with&nbsp;EN61000-3-2, EN61000-3-3, EN55022 as well as EN60950-1. We offer the following types of this Mean Well series:&nbsp;HEP-320-12A, HEP-320-15A, HEP-320-24A,&nbsp;HEP-320-36A,&nbsp;HEP-320-48A and HEP-320-54A. single output output: 264 to 321,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A leakage current: &lt;0,75mA overcurrent protection: 105 to 125% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -55 to +70&deg;C weight: 1880g

Specifications

manufacturer
Manufacturer's name HEP-320-15A
GTIN 4711287433318
Output voltage [V] 15
Efficiency [%] 92,5
Output current [A] 19
Output voltage tolerance: [%] 3
Output power [W] 285
Output voltage adjustment [V] 13,5...17
Ripple [mVp-p] 150
Data Sheet

Unit price

116,89 €

Volume discounts

Quantity Unit price
50 + 114,39 €

Stock: 18
Further delivery:
CW 16/2025
