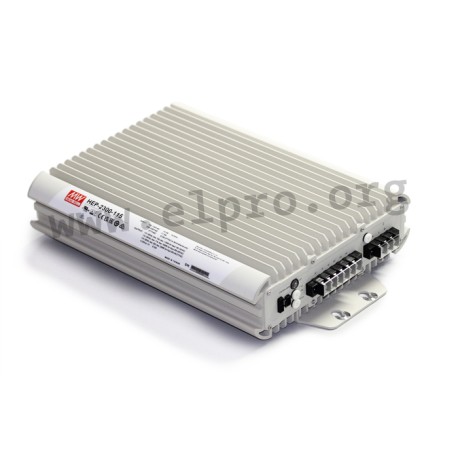

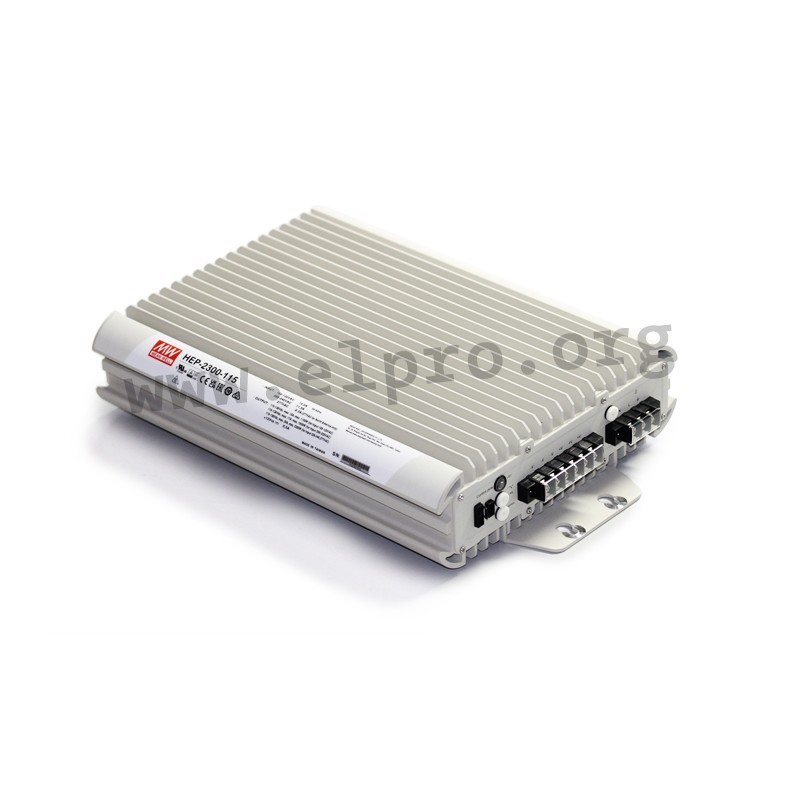

HEP-2300-380WCAN

Mean Well power supply series HEP-2300-HV

Switching power supplies in an aluminium housing with 2300W, a remote ON/OFF control, a DC OK signal, an LED indicator for power on and a universal input. These devices have a built-in active PFC function, are suitable for harsh environments and are protected against overload, overvoltage, overtemperature as well as short circuit. They have a PMBus (HEP-2300-_PM) or a CAN bus interface (HEP-2300-_CAN) and comply with EN62368-1, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: HEP-2300-115PM, HEP-2300-115WPM, HEP-2300-115WCAN, HEP-2300-230PM, HEP-2300-230WPM, HEP-2300-230WCAN, HEP-2300-380PM, HEP-2300-380WPM and HEP-2300-380WCAN.

  • single output
  • output: 2300W
  • input voltage: 90 to 305V AC (47 to 63Hz), 250 to 431V DC
  • maximal input inrush current: 60A
  • input current: 11A
  • leakage current: 2mA
  • withstand voltage I/P-O/P: 6000V AC
  • withstand voltage I/P-FG: 4000V AC
  • withstand voltage O/P-FG: 4000V AC
  • operating temperature: -40 to +70°C
  • weight: 12500g
HEP-2300-380WCAN, Mean Well switching power supplies, 2300W, for harsh environments, high voltage, PMBus, CAN bus, HEP-2300-HV s

HEP-2300-380WCAN

244491 HEP-2300-380WCAN HEP-2300-380WCAN Mean Well power supply series HEP-2300-HV. Switching power supplies in an aluminium housing with 2300W, a remote ON/OFF control, a DC OK signal, an LED indicator for power on and a universal input. These devices have a built-in active PFC function, are suitable for harsh environments and are protected against overload, overvoltage, overtemperature as well as short circuit. They have a PMBus (HEP-2300-_PM) or a CAN bus interface (HEP-2300-_CAN) and comply with EN62368-1, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: HEP-2300-115PM, HEP-2300-115WPM, HEP-2300-115WCAN, HEP-2300-230PM, HEP-2300-230WPM, HEP-2300-230WCAN, HEP-2300-380PM, HEP-2300-380WPM and HEP-2300-380WCAN. single output output: 2300W input voltage: 90 to 305V AC (47 to 63Hz), 250 to 431V DC maximal input inrush current: 60A input current: 11A leakage current: 2mA withstand voltage I/P-O/P: 6000V AC withstand voltage I/P-FG: 4000V AC withstand voltage O/P-FG: 4000V AC operating temperature: -40 to +70°C weight: 12500g

Specifications

manufacturer
Manufacturer's name HEP-2300-380WCAN
Output voltage [V] 380
Efficiency [%] 95,5
Output current [A] 6,9
Output voltage tolerance: [%] 1
Output power [W] 2300
Ripple [mVp-p] 4000
Data Sheet

Unit price

842,49 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 200 units or
multiples of 200.
