HEP-185-54A

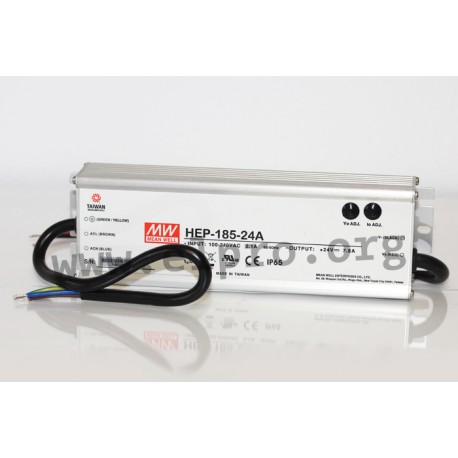

Mean Well power supply series HEP-185

Switching power supplies in an enclosed aluminium housing with 185W, screw terminals, a surge immunity level of 6kV and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for harsh environments and comply with EN61000-3-2, EN61000-3-3, EN55022 as well as EN60950-1. We offer the following types of this Mean Well series: HEP-185-12A, HEP-185-15A, HEP-185-24A, HEP-185-36A, HEP-185-48A and HEP-185-54A.

  • single output
  • output: 156 to 187,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • leakage current: <0,75mA
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -55 to +70°C
  • weight: 1150g
Mean Well HEP-185 series

HEP-185-54A

104805 HEP-185-54A HEP-185-54A 4711287433233 Mean Well power supply series HEP-185. Switching power supplies in an enclosed aluminium housing with 185W,&nbsp;screw terminals, a surge immunity level of 6kV and a universal input.&nbsp;These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for harsh environments and comply with&nbsp;EN61000-3-2, EN61000-3-3, EN55022 as well as EN60950-1. We offer the following types of this Mean Well series:&nbsp;HEP-185-12A, HEP-185-15A, HEP-185-24A,&nbsp;HEP-185-36A,&nbsp;HEP-185-48A and HEP-185-54A. single output output: 156 to 187,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A leakage current: &lt;0,75mA overload protection: 105 to 125% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -55 to +70&deg;C weight: 1150g

Specifications

manufacturer
Manufacturer's name HEP-185-54A
GTIN 4711287433233
Output voltage [V] 54
Efficiency [%] 94
Output current [A] 3,45
Output voltage tolerance: [%] 1
Output power [W] 186,3
Ripple [mVp-p] 200
Output voltage adjustment [V] 49...58
Data Sheet

Unit price

74,09 €

Volume discounts

Quantity Unit price
50 + 72,49 €

Stock: 7
Further delivery:
CW 12/2025
