HEP-150-36A

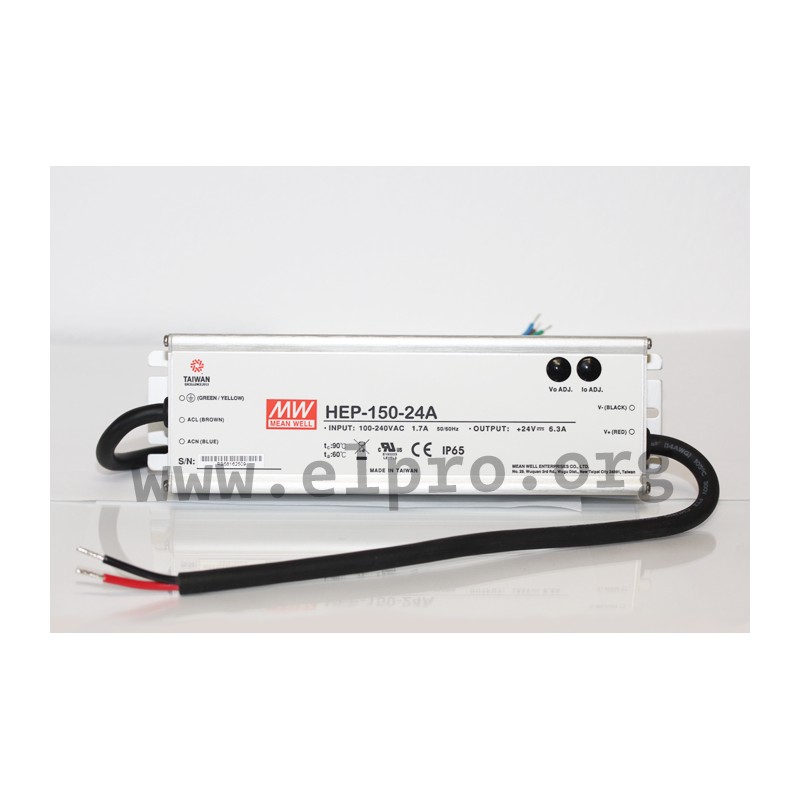

Mean Well power supply series HEP-150

Switching power supplies in an enclosed aluminium housing with 150W, a universal input, screw terminals and a surge immunity level of 6kV. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for harsh environments and comply with EN61000-3-2, EN61000-3-3, EN55022 as well as EN60950-1. We offer the following types of this Mean Well series: HEP-150-12A, HEP-150-15A, HEP-150-24A, HEP-150-36A, HEP-150-48A and HEP-150-54A.

  • single output
  • output: 150 to 153,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • leakage current: <0,75A
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -55 to +70°C
  • weight: 1150g
Mean Well HEP-150 series

HEP-150-36A

104797 HEP-150-36A HEP-150-36A 4711287433165 Mean Well power supply series&nbsp;HEP-150. Switching power supplies in an enclosed aluminium housing with 150W, a universal input, screw terminals and a surge immunity level of 6kV. These devices have a built-in active PFC&nbsp;function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are&nbsp;suitable for harsh environments and comply with&nbsp;EN61000-3-2, EN61000-3-3, EN55022 as well as EN60950-1. We offer the following types of this Mean Well series:&nbsp;HEP-150-12A, HEP-150-15A, HEP-150-24A,&nbsp;HEP-150-36A,&nbsp;HEP-150-48A and HEP-150-54A. single output output: 150 to 153,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A leakage current: &lt;0,75A overload protection: 105 to 125% withstand voltage&nbsp;I/P-O/P: 3750V AC withstand voltage&nbsp;I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -55 to +70&deg;C weight: 1150g

Specifications

manufacturer
Manufacturer's name HEP-150-36A
GTIN 4711287433165
Output voltage [V] 36
Efficiency [%] 93,5
Output current [A] 4,2
Output voltage tolerance: [%] 1
Output power [W] 151,2
Ripple [mVp-p] 200
Output voltage adjustment [V] 33...40
Data Sheet

Unit price

71,59 €

Volume discounts

Quantity Unit price
50 + 70,09 €

Stock: 9
Further delivery:
CW 12/2025
