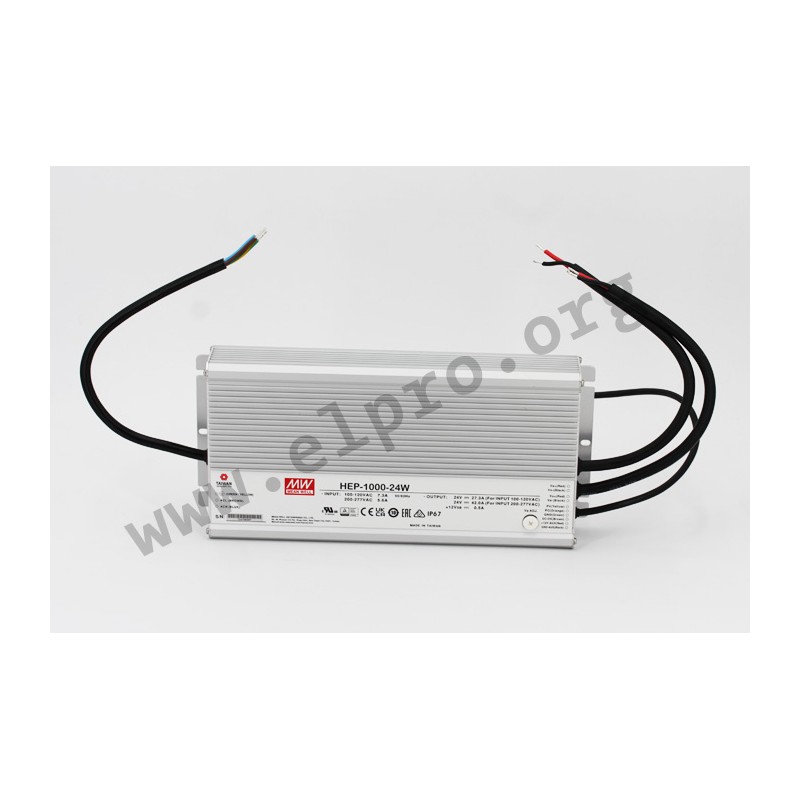

HEP-1000-24W

Mean Well power supply series HEP-1000

Switching power supplies in an enclosed aluminium housing with 1000W, a PMBus interface, a remote ON/OFF control, an LED indicator for power on, a fanless design and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for harsh environments and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: HEP-1000-24, HEP-1000-24W, HEP-1000-48, HEP-1000-48W, and HEP-1000-100.

  • single output
  • output: 1000 to 1008W
  • input voltage: 90 to 305V AC (47 to 63Hz), 250 to 431V DC
  • maximal input inrush current: 40A
  • leakage current: <0,75mA
  • overcurrent protection: 105 to 125%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -40 to +70°C
  • weight: 4000g

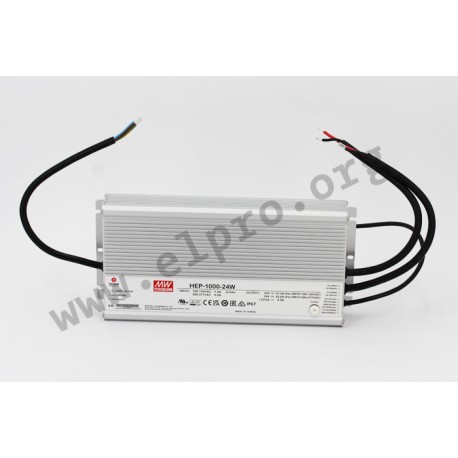

HEP-1000-24W, Mean Well switching power supplies, 1000W, for harsh environments, HEP-1000 series

HEP-1000-24W

248613 HEP-1000-24W HEP-1000-24W Mean Well power supply series HEP-1000. Switching power supplies in an enclosed aluminium housing with 1000W, a PMBus interface, a remote ON/OFF control, an LED indicator for power on, a fanless design and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for harsh environments and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: HEP-1000-24, HEP-1000-24W, HEP-1000-48, HEP-1000-48W, and HEP-1000-100. single output output: 1000 to 1008W input voltage: 90 to 305V AC (47 to 63Hz), 250 to 431V DC maximal input inrush current: 40A leakage current: &lt;0,75mA overcurrent protection: 105 to 125% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -40 to +70°C weight: 4000g

Specifications

manufacturer
Manufacturer's name HEP-1000-24W
Output voltage [V] 24
Efficiency [%] 95
Output current [A] 42
Output voltage tolerance: [%] 1
Output power [W] 1008
Ripple [mVp-p] 200
Output voltage adjustment [V] 24...30
Data Sheet

Unit price

410,69 €

Stock: 2
Further delivery:
CW 16/2025
