HEP-100-12A

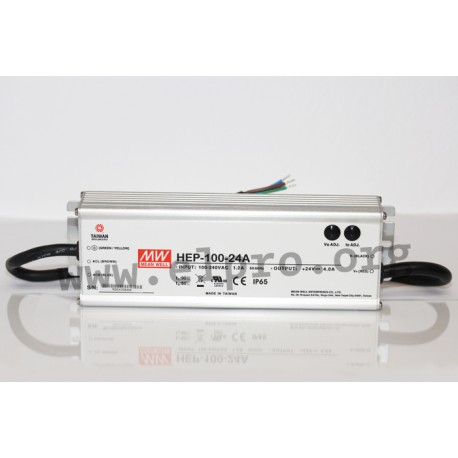

Mean Well power supply series HEP-100

Switching power supplies in an enclosed aluminium housing with 100W, screw terminals, a universal input and a 6kV surge immunity level. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for harsh environments and comply with EN61000-3-2, EN61000-3-3, EN55022 as well as EN60950-1. We offer the following types of this Mean Well series: HEP-100-12A, HEP-100-15A, HEP-100-24A, HEP-100-36A, HEP-100-48A and HEP-100-54A.

  • single output
  • output: 95,4 to 100,08W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • leakage current: <0,75mA
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -55 to +70°C
  • weight: 1120g
Mean Well HEP-100 series

HEP-100-12A

104788 HEP-100-12A HEP-100-12A 4711287433011 Mean Well power supply series&nbsp;HEP-100. Switching power supplies in an enclosed aluminium housing with 100W, screw terminals, a universal input and a 6kV surge immunity level. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for harsh environments and comply with&nbsp;EN61000-3-2, EN61000-3-3, EN55022 as well as EN60950-1. We offer the following types of this Mean Well series:&nbsp;HEP-100-12A, HEP-100-15A, HEP-100-24A,&nbsp;HEP-100-36A,&nbsp;HEP-100-48A and HEP-100-54A. single output output: 95,4 to 100,08W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A leakage current: &lt;0,75mA overload protection: 105 to 125% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -55 to +70&deg;C weight: 1120g

Specifications

manufacturer
Manufacturer's name HEP-100-12A
GTIN 4711287433011
Output voltage [V] 12
Efficiency [%] 92
Output current [A] 8,34
Output voltage tolerance: [%] 1
Output power [W] 100,08
Ripple [mVp-p] 120
Output voltage adjustment [V] 10,8...13,5
Data Sheet

Unit price

65,99 €

Volume discounts

Quantity Unit price
50 + 63,79 €

Stock: 4
Next incoming goods:
CW 48/2024
24 units

Further delivery:
CW 12/2025
