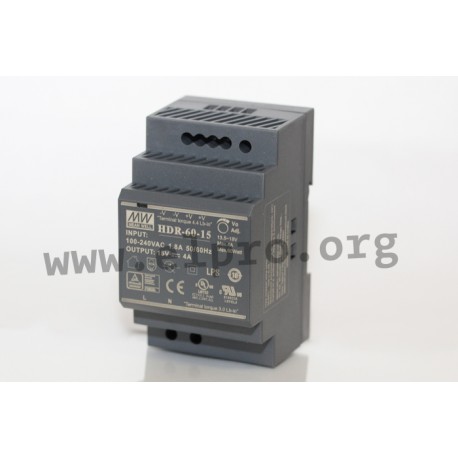

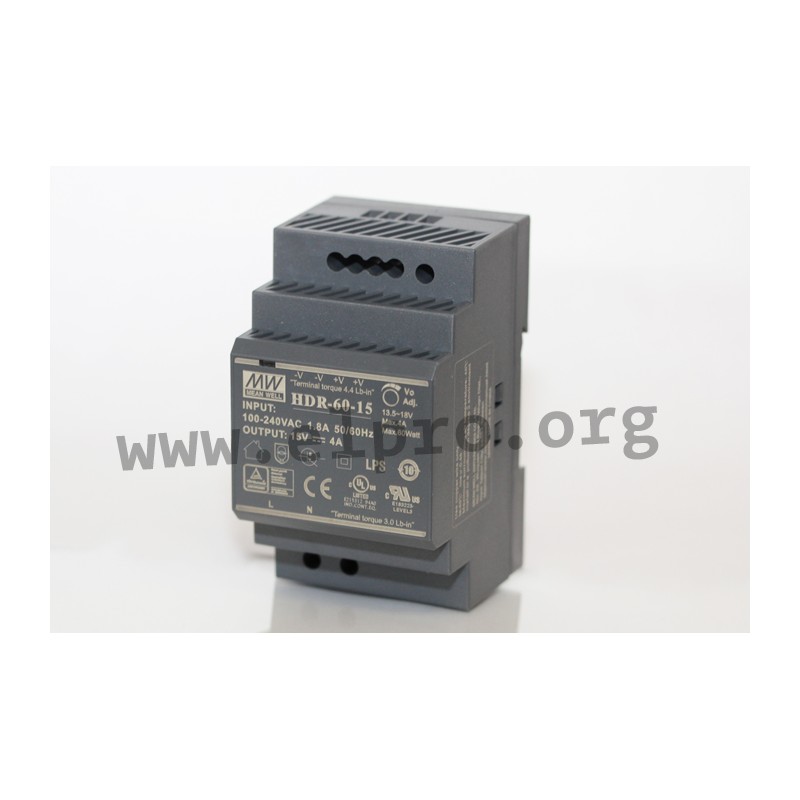

HDR-60-15

Mean Well DIN rail power supply series HDR-60

Switching power supplies in a slim housing (52,5mm width) with 60W, a universal input, insulation class II, an LED indicator for power on, a low no-load power and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have an adjustable DC output voltage as well as a fanless design and comply with UL/EN62368-1, EN61558-2-16, EN61558-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HDR-60-5, HDR-60-12, HDR-60-15, HDR-60-24 and HDR-60-48.

  • single output
  • output: 32,5 to 60W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 60A
  • overload protection: 105 to 160%
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +70°C
  • weight: 190g
HDR-60-15

HDR-60-15

108235 HDR-60-15 HDR-60-15 4711287421735 Mean Well DIN rail power supply series HDR-60. Switching power supplies in a slim housing (52,5mm width) with 60W, a universal input, insulation class II, an LED indicator for power on, a low no-load power and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have an adjustable DC output voltage as well as a fanless design and comply with UL/EN62368-1, EN61558-2-16, EN61558-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HDR-60-5, HDR-60-12, HDR-60-15, HDR-60-24 and HDR-60-48. single output output: 32,5 to 60W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 60A overload protection: 105 to 160% withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +70°C weight: 190g

Specifications

manufacturer
Manufacturer's name HDR-60-15
GTIN 4711287421735
Output voltage [V] 15
Efficiency [%] 89
Output current range [A] 0...4
Output voltage tolerance: [%] 1
Output power [W] 60
Ripple [mVp-p] 120
Data Sheet

Unit price

15,29 €

Volume discounts

Quantity Unit price
50 + 14,39 €

Stock: 867
Next incoming goods:
CW 03/2025
1080 units

Further delivery:
CW 09/2025
