HDR-30-5

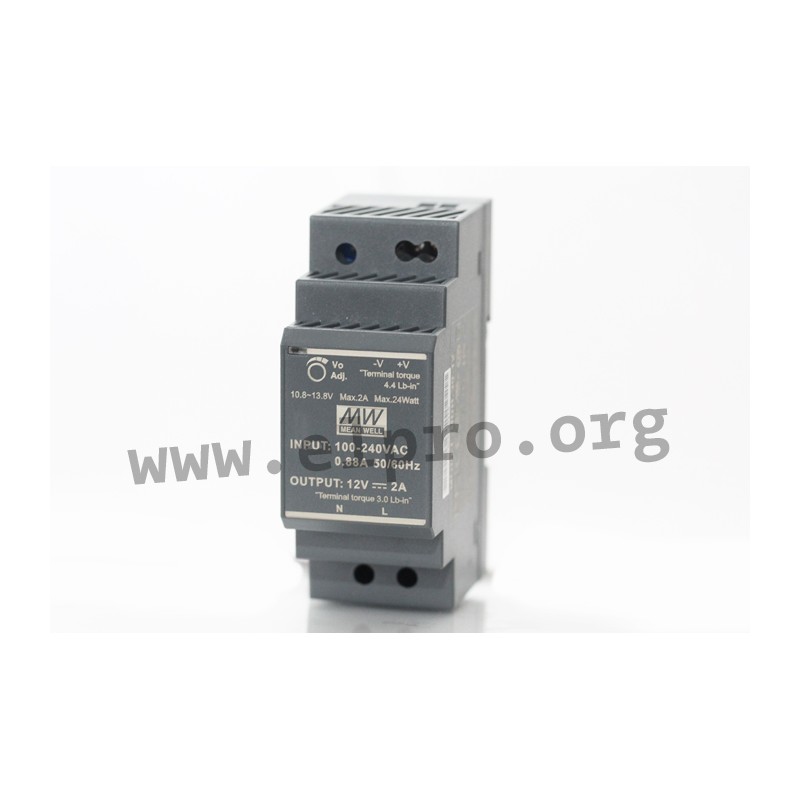

Mean Well DIN rail power supply series HDR-30

Switching power supplies in a slim housing (35mm) with 30W, insulation class II, a universal input, a low no-load power, an LED indicator for power on and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN61558-2-16, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HDR-30-5, HDR-30-12, HDR-30-15, HDR-30-24 and HDR-30-48.

  • single output
  • output: 15 to 36W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 45A
  • overload protection: 105 to 160%
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +70°C
  • weight: 120g
Mean Well HDR-30 series

HDR-30-5

108228 HDR-30-5 HDR-30-5 4711287421667 Mean Well DIN rail power supply series HDR-30. Switching power supplies in a slim housing (35mm) with 30W, insulation class II, a universal input, a low no-load power, an LED indicator for power on and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN61558-2-16, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HDR-30-5, HDR-30-12, HDR-30-15, HDR-30-24 and HDR-30-48. single output output: 15 to 36W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 45A overload protection: 105 to 160% withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +70°C weight: 120g

Specifications

manufacturer
Manufacturer's name HDR-30-5
GTIN 4711287421667
Output voltage [V] 5
Efficiency [%] 82
Output current range [A] 0...3
Output voltage tolerance: [%] 2
Output power [W] 15
Ripple [mVp-p] 80
Data Sheet
