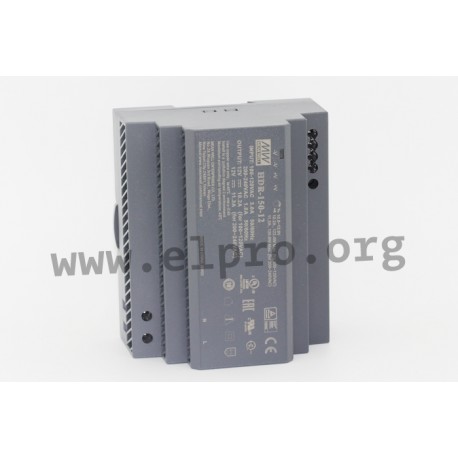

HDR-150-12

Mean Well DIN rail power supply series HDR-150

Switching power supplies in an enclosed housing with 150W, insulation class II, a universal input, an LED indicator for power on, a low no-load power and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN61558-2-16, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HDR-150-12, HDR-150-15, HDR-150-24 and HDR-150-48.

  • single output
  • output: 135,6 to 153,6W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -30 to +70°C
  • weight: 310g
HDR-150-12

HDR-150-12

112719 HDR-150-12 HDR-150-12 4711287421841 Mean Well DIN rail power supply series HDR-150. Switching power supplies in an enclosed housing with 150W, insulation class II, a universal input, an LED indicator for power on, a low no-load power and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN61558-2-16, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HDR-150-12, HDR-150-15, HDR-150-24 and HDR-150-48. single output output: 135,6 to 153,6W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC operating temperature: -30 to +70°C weight: 310g

Specifications

manufacturer
Manufacturer's name HDR-150-12
GTIN 4711287421841
Output voltage [V] 12
Efficiency [%] 89
Output current [A] 11,3
Output voltage tolerance: [%] 2
Output power [W] 135,6
Ripple [mVp-p] 100
Data Sheet

Unit price

27,89 €

Volume discounts

Quantity Unit price
50 + 26,19 €

Stock: 181
Next incoming goods:
CW 03/2025
640 units

Further delivery:
CW 09/2025
