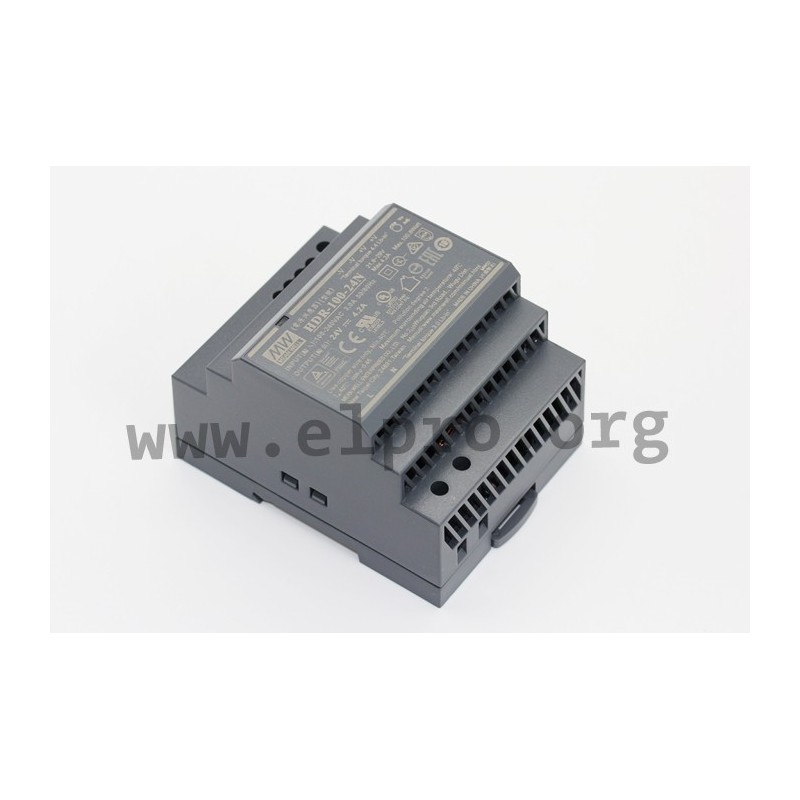

HDR-100-15N

Mean Well DIN rail power supply series HDR-100

Switching power supplies in a slim housing (70mm width) with 100W, insulation class II, a low no-load power, an LED indicator for power on, a universal input and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN61558-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HDR-100-12, HDR-100-15, HDR-100-24, HDR-100-48, HDR-100-12N, HDR-100-15N, HDR-100-24N and HDR-100-48N.

  • single output
  • output: 85,2 to 100,8W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • overload protection HDR-100_: 102 to 110%
  • overload protection HDR-100_N: 105 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -30 to +70°C
  • weight: 270g

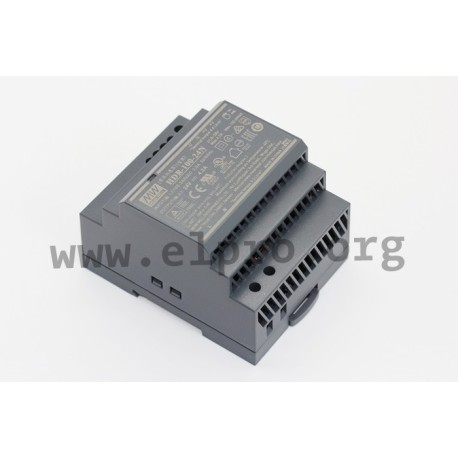

HDR-100-15N, Mean Well DIN rail switching power supplies, 100W, HDR-100 series

HDR-100-15N

245835 HDR-100-15N HDR-100-15N 4711287421797 Mean Well DIN rail power supply series HDR-100. Switching power supplies in a slim housing (70mm width) with 100W, insulation class II, a low no-load power, an LED indicator for power on, a universal input and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN61558-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HDR-100-12, HDR-100-15, HDR-100-24, HDR-100-48, HDR-100-12N, HDR-100-15N, HDR-100-24N and HDR-100-48N. single output output: 85,2 to 100,8W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A overload protection HDR-100_: 102 to 110% overload protection HDR-100_N: 105 to 150% withstand voltage I/P-O/P: 4000V AC operating temperature: -30 to +70°C weight: 270g

Specifications

manufacturer
Manufacturer's name HDR-100-15N
GTIN 4711287421797
Output voltage [V] 15
Efficiency [%] 89
Output current range [A] 0...6,5
Output voltage tolerance: [%] ±1
Output power [W] 97,5
Ripple [mVp-p] 120
Data Sheet

Unit price

24,49 €

Volume discounts

Quantity Unit price
50 + 23,09 €

Stock: 221
Further delivery:
CW 09/2025
