HBGC-300-M-ADA

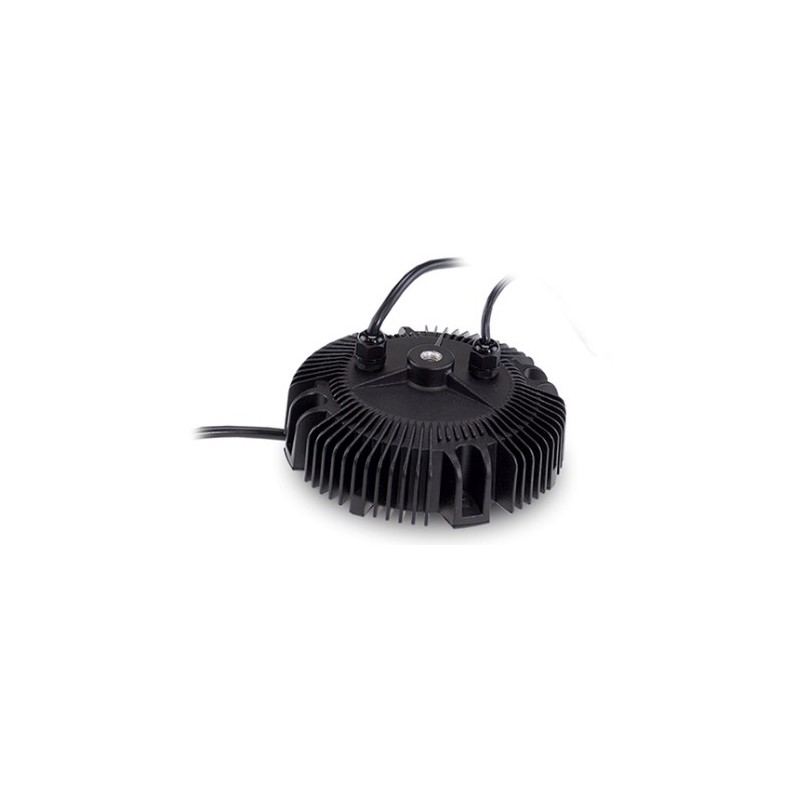

Mean Well LED driver series HBGC-300

LED drivers in a round shaped metal case (IP67) with a constant power, 300W and a universal input. These devices are suitable for LED lighting applications, are protected against short circuit, overcurrent, overvoltage, overload (auto recovery) as well as overtemperature and have a built-in active PFC function. They comply with EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a built-in potentiometer for adjusting the output current. We offer the following types of this Mean Well series: HBGC-300-L-ADA, HBGC-300-M-ADA and HBGC-300-H-ADA.

  • single output
  • output: 301,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 45A
  • maximal leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 bis +80°C
  • dimensions: Ø191,5x69mm
  • weight: 2200g

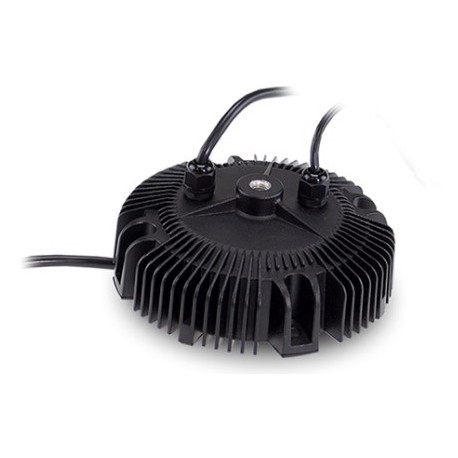

HBGC-300-M-ADA, Mean Well LED power supplies, 300W, IP67, constant power, dimmable, DALI 2.0 interface, HBGC-300 series

HBGC-300-M-ADA

135889 HBGC-300-M-ADA HBGC-300-M-ADA 4711287480947 Mean Well LED driver series HBGC-300. LED drivers in a round shaped metal case (IP67) with a constant power, 300W and a universal input. These devices are suitable for LED lighting applications, are protected against short circuit, overcurrent, overvoltage, overload (auto recovery) as well as overtemperature and have a built-in active PFC function. They comply with EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a built-in potentiometer for adjusting the output current. We offer the following types of this Mean Well series: HBGC-300-L-ADA, HBGC-300-M-ADA and HBGC-300-H-ADA. single output output: 301,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 45A maximal leakage current: &lt;0,75mA withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 bis +80°C dimensions: Ø191,5x69mm weight: 2200g

Specifications

manufacturer
Manufacturer's name HBGC-300-M-ADA
GTIN 4711287480947
Output current tolerance [%] 5
Efficiency [%] 93,5
Output power [W] 301,6
Ripple & noise [%] 5
Output current adjustment [mA] 1300...4331
Output voltage range [V] 58...116
Data Sheet

Unit price

94,09 €

Volume discounts

Quantity Unit price
50 + 92,09 €

Stock: 4
Further delivery:
CW 11/2025
