HBGC-300-L-A

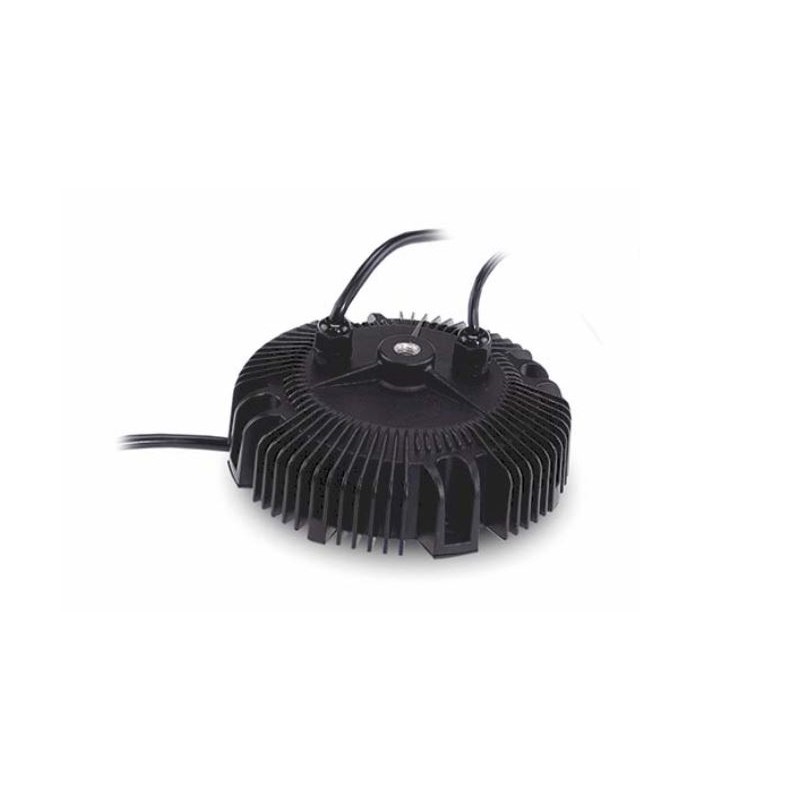

Mean Well LED driver series HBGC-300

LED drivers in a round metal housing (IP67) with a universal input, 300W and a constant power. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit, overvoltage as well as overcurrent and comply with EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the non-dimmable types HBGC-300-L-A and HBGC-300-H-A with a built-in potentiometer for adjusting the current limitation as well as the LED drivers HBGC-300-L-AB and HBGC-300-H-AB with a 3 in 1 dimming function (0 to 10V DC, PWM, potentiometer).

  • single output
  • output: 301,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 45A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: Ø191,5x69mm
  • weight: 2200g

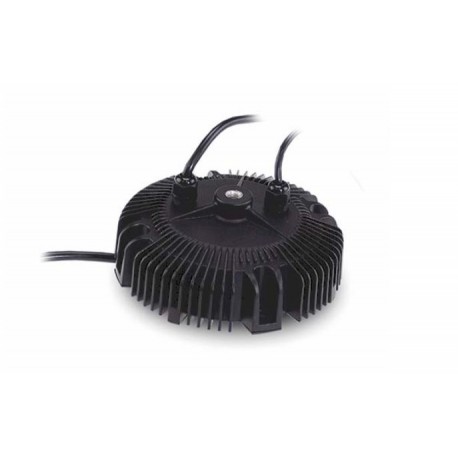

Mean Well HBGC-300 series

HBGC-300-L-A

112232 HBGC-300-L-A HBGC-300-L-A 4711287480886 Mean Well LED driver series HBGC-300. LED drivers in a round metal housing (IP67) with a universal input, 300W and a constant power. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit, overvoltage as well as overcurrent and comply with EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the non-dimmable types HBGC-300-L-A and HBGC-300-H-A with a built-in potentiometer for adjusting the current limitation as well as the LED drivers HBGC-300-L-AB and HBGC-300-H-AB with a 3 in 1 dimming function (0 to 10V DC, PWM, potentiometer). single output output: 301,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 45A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: Ø191,5x69mm weight: 2200g

Specifications

manufacturer
Manufacturer's name HBGC-300-L-A
GTIN 4711287480886
Output voltage [V] 116...232
Output current tolerance [%] 5
Efficiency [%] 94,5
Output power [W] 301,6
Ripple & noise [%] 5
Output current adjustment [mA] 650...2170
Data Sheet

Unit price

86,89 €

Volume discounts

Quantity Unit price
50 + 85,09 €

Stock: 6
Further delivery:
CW 11/2025
