HBG-60-2100

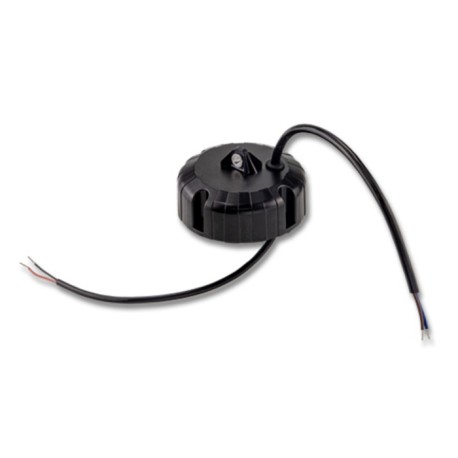

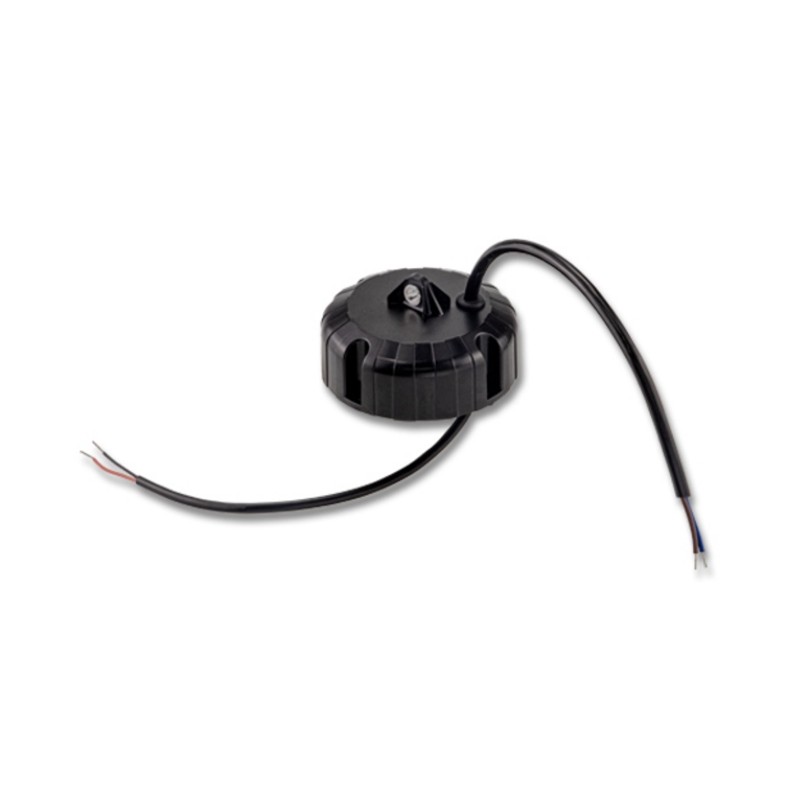

Mean Well LED driver series HBG-60

LED drivers in a round plastic housing with 60W, a constant current and a universal input. These devices are suitable for LED lighting applications and are not dimmable. They are protected against overload, overvoltage as well as short circuit and comply with UL8750, EN61347-1 as well as EN62384. We offer the following types of this Mean Well series: HBG-60-1050, HBG-60-1400 and HBG-60-2100.

  • single output
  • output: 57,75 to 60,9W
  • input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø110x60,5mm
  • weight: 500g
HBG-60-2100, Mean Well LED drivers, 60W, constant current, circular housing, HBG-60 series

HBG-60-2100

244549 HBG-60-2100 HBG-60-2100 4711287447223 Mean Well LED driver series HBG-60. LED drivers in a round plastic housing with 60W, a constant current and a universal input. These devices are suitable for LED lighting applications and are not dimmable. They are protected against overload, overvoltage as well as short circuit and comply with UL8750, EN61347-1 as well as EN62384. We offer the following types of this Mean Well series: HBG-60-1050, HBG-60-1400 and HBG-60-2100. single output output: 57,75 to 60,9W input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +85°C dimensions: Ø110x60,5mm weight: 500g

Specifications

manufacturer
Manufacturer's name HBG-60-2100
GTIN 4711287447223
Output voltage [V] 19...29
Output current tolerance [%] 5
Efficiency [%] 89
Output power [W] 60,9
Ripple [mVp-p] 3000
Output current [mA] 2100
Data Sheet

Unit price

23,19 €

Stock: 0
Further delivery:
CW 16/2025
