HBG-60-1050P

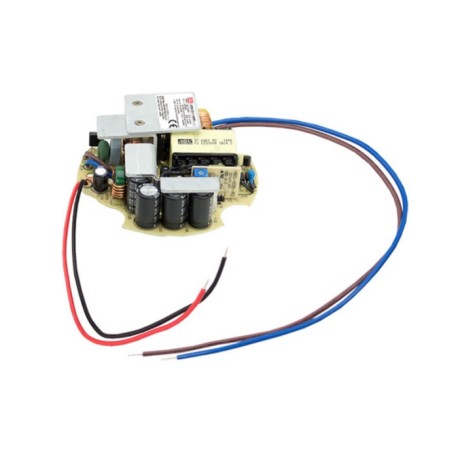

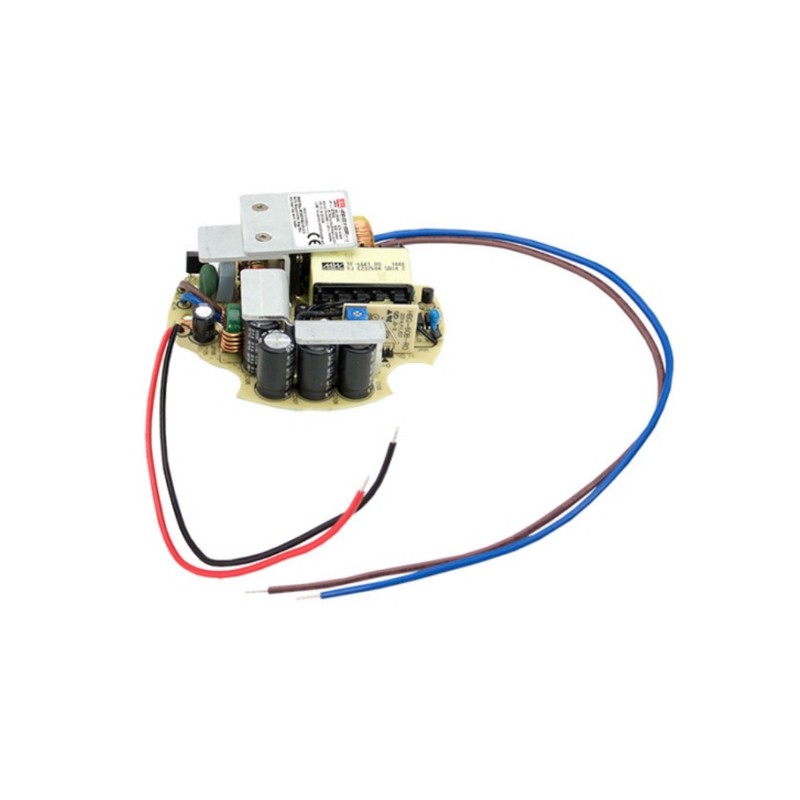

Mean Well LED driver series HBG-60-P

Open-frame LED drivers with 60W, a round shape and a constant current. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C as well as EN55015. We offer the following types of this Mean Well series: HBG-60-1050P, HBG-60-1400P and HBG-60-2100P.

  • single output
  • output: 57,75 to 60,9W
  • input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • oiperating temperature: -40 to +70°C
  • dimensions: Ø99x66,5mm
  • weight: 210g
HBG-60-1050P, Mean Well LED drivers, 60W, constant current, circular housing, open frame (PCB), HBG-60-P series

HBG-60-1050P

244909 HBG-60-1050P HBG-60-1050P 4711287481197 Mean Well LED driver series HBG-60-P. Open-frame LED drivers with 60W, a round shape and a constant current. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C as well as EN55015. We offer the following types of this Mean Well series: HBG-60-1050P, HBG-60-1400P and HBG-60-2100P. single output output: 57,75 to 60,9W input voltage: 90 to 295V AC (47 to 63Hz), 127 to 417V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3750V AC oiperating temperature: -40 to +70°C dimensions: Ø99x66,5mm weight: 210g

Specifications

manufacturer
Manufacturer's name HBG-60-1050P
GTIN 4711287481197
Output voltage [V] 37...55
Output current tolerance [%] 5
Efficiency [%] 90
Output power [W] 57,75
Output current [mA] 1050
Data Sheet

Unit price

18,79 €

Stock: 0
Further delivery:
CW 11/2025
