HBG-240-60B

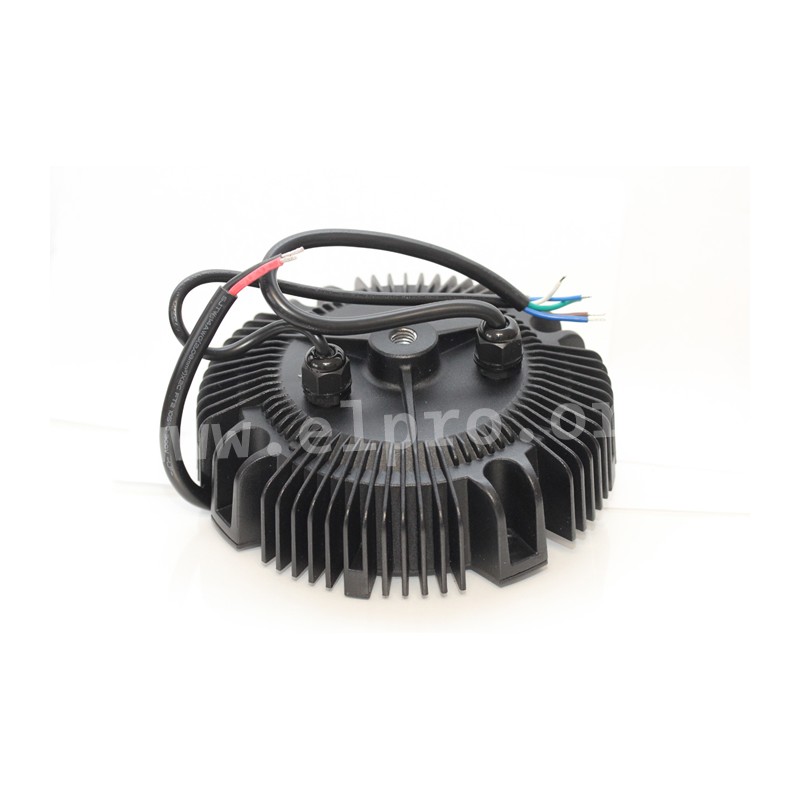

Mean Well LED driver series HBG-240

LED drivers in a metal housing (IP67, circular shape) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a constant power, 240W and a constant current. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-240-24B, HBG-240-36B, HBG-240-48B and HBG-240-60B.

  • single output
  • output: 240W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +80°C

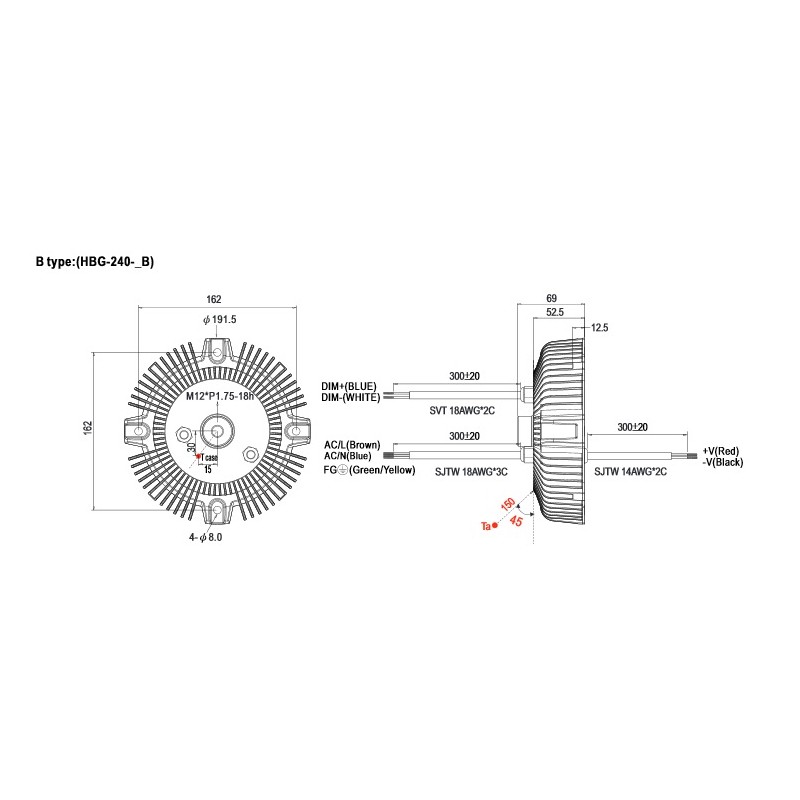

  • dimensions: Ø191,5x69mm
  • weight: 2100g
series HBG-240 by Meanwell

HBG-240-60B

42676 HBG-240-60B HBG-240-60B 4711287448008 Mean Well LED driver series HBG-240. LED drivers in a metal housing (IP67, circular shape) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a constant power, 240W and a constant current. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-240-24B, HBG-240-36B, HBG-240-48B and HBG-240-60B. single output output: 240W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +80°C dimensions: Ø191,5x69mm weight: 2100g

Specifications

manufacturer
Manufacturer's name HBG-240-60B
GTIN 4711287448008
Output voltage [V] 60
Phase 2 phase
Output current adjustment [A] 2,4...4
Efficiency [%] 93,5
Output voltage tolerance: [%] 2
Output power [W] 240
Ripple [mVp-p] 350
Data Sheet

Unit price

70,39 €

Volume discounts

Quantity Unit price
50 + 68,09 €

Stock: 55
Further delivery:
CW 11/2025
