HBG-240-60

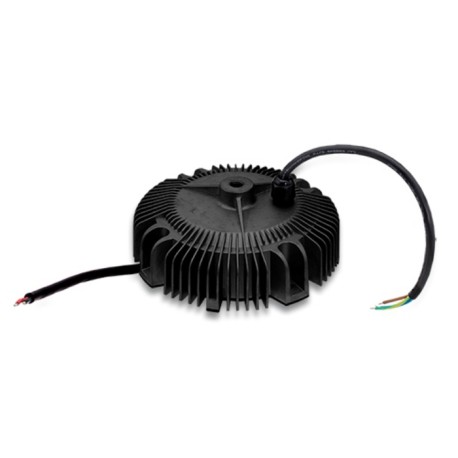

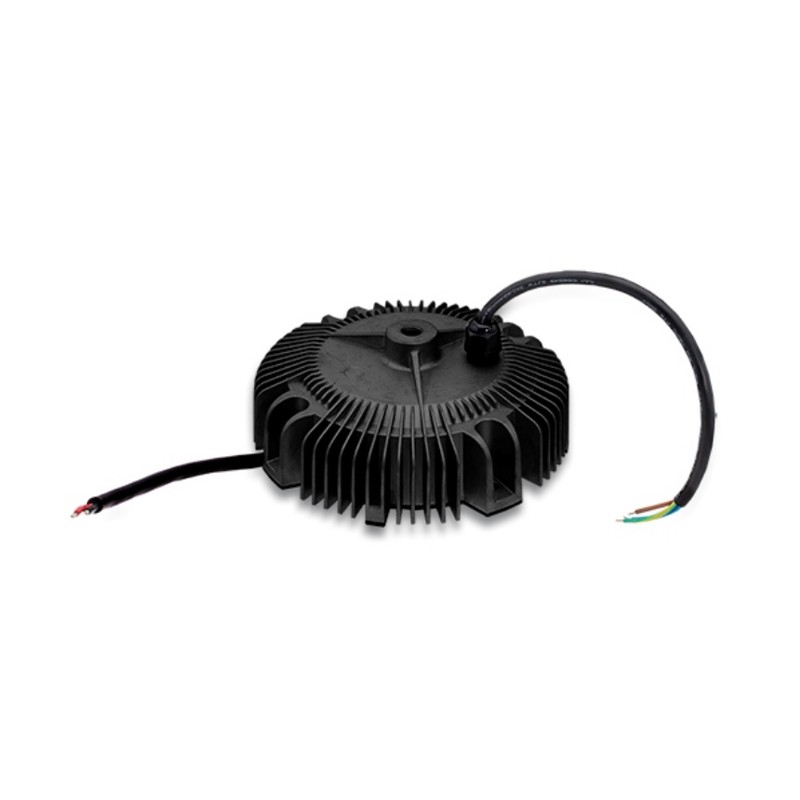

Mean Well LED driver series HBG-240

LED drivers in a circular metal housing (IP67) with 240W, a constant current/voltage and a fixed output current (fixed preset). These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. These devices are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HBG-240-24, HBG-240-36, HBG-240-48 and HBG-240-60.

  • single output
  • output: 240W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +80°C
  • dimensions: Ø191,5x69mm
  • weight: 2100g
HBG-240-60, Mean Well LED drivers, 240W, IP67, CV and CC (mixed mode), fixed preset, circular housing, HBG-240 series

HBG-240-60

244656 HBG-240-60 HBG-240-60 4711287447971 Mean Well LED driver series HBG-240. LED drivers in a circular metal housing (IP67) with 240W, a constant current/voltage and a fixed output current (fixed preset). These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. These devices are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HBG-240-24, HBG-240-36, HBG-240-48 and HBG-240-60. single output output: 240W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +80°C dimensions: Ø191,5x69mm weight: 2100g

Specifications

manufacturer
Manufacturer's name HBG-240-60
GTIN 4711287447971
Output voltage [V] 60
Output current [A] 4
Output voltage tolerance: [%] 2
Output power [W] 240
Ripple [mVp-p] 350
Data Sheet

Unit price

71,59 €

Stock: 0
Further delivery:
CW 16/2025
