HBG-240-36DA

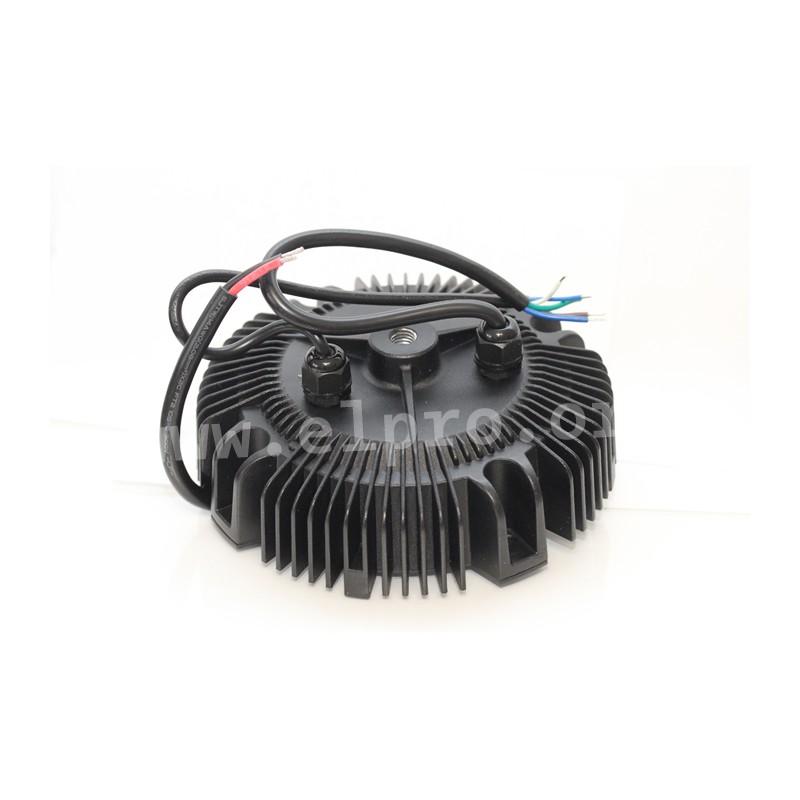

Mean Well LED driver series HBG-240

LED drivers in a round metal housing (IP67) with a DALI interface, a constant current and 240W. These SELV compliant devices comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-3 as well as EN61000-3-2 class C and are suitable for LED lighting applications. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-240-24DA, HBG-240-36DA and HBG-240-48DA.

  • single output
  • output: 240W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +80°C
  • dimensions: Ø191,5x69mm
  • weight: 2100g

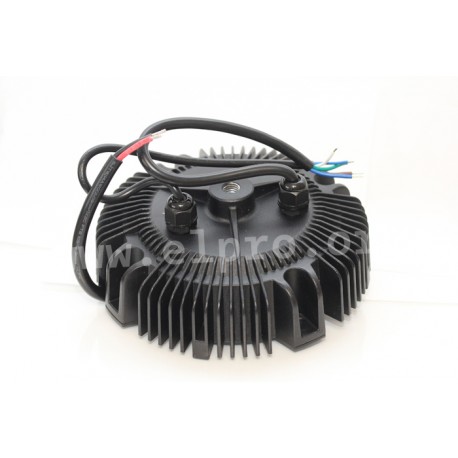

Mean Well HBG-240 series

HBG-240-36DA

111802 HBG-240-36DA HBG-240-36DA 4711287447919 Mean Well LED driver series HBG-240. LED drivers in a round metal housing (IP67) with a DALI interface, a constant current and 240W. These SELV compliant devices comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-3 as well as EN61000-3-2 class C and are suitable for LED lighting applications. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-240-24DA, HBG-240-36DA and HBG-240-48DA. single output output: 240W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +80°C dimensions: Ø191,5x69mm weight: 2100g

Specifications

manufacturer
Manufacturer's name HBG-240-36DA
GTIN 4711287447919
Output voltage [V] 36
Efficiency [%] 92,5
Output voltage tolerance: [%] 2
Output power [W] 240
Ripple [mVp-p] 250
Output current adjustment [A] 4...6,7
Data Sheet

Unit price

77,29 €

Volume discounts

Quantity Unit price
50 + 75,69 €

Stock: 21
Further delivery:
CW 16/2025
