HBG-200-60AB

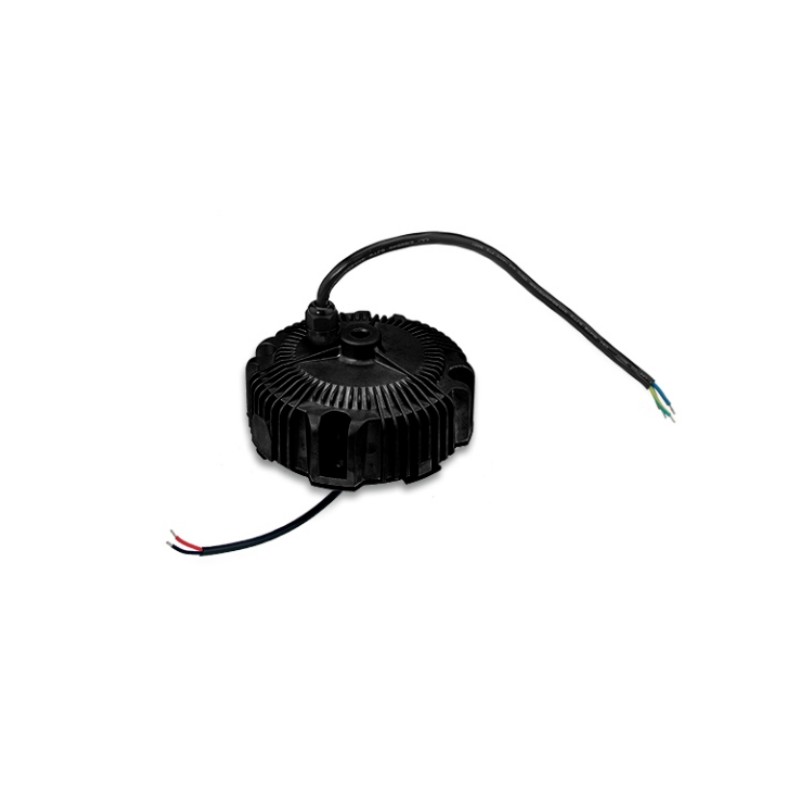

Mean Well LED driver series HBG-200

LED drivers in a circular housing (IP65) with 200W, a dimming function, a constant current/voltage and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications, have an adjustable output current and comply with EN61347-2-13, EN62384, EN55015 and EN61000-3-2 class C. We offer the following types of this Mean Well series: HBG-200-36AB, HBG-200-48AB and HBG-200-60AB.

  • single output
  • output: 196,8 to 198W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 85A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø151,68x66,5mm
  • weight: 1530g

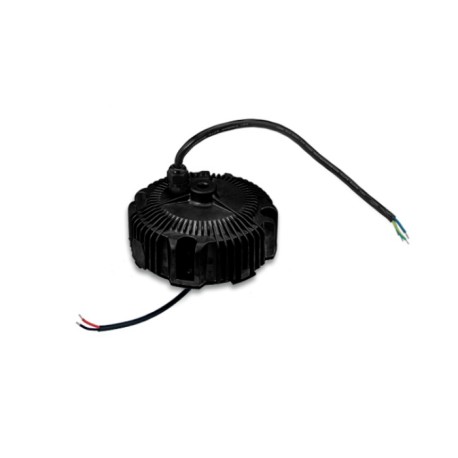

HBG-200-60AB, Mean Well LED drivers, 200W, IP65, CV and CC (mixed mode), dimmable, adjustable, circular housing, HBG-200 series

HBG-200-60AB

244642 HBG-200-60AB HBG-200-60AB 4711287447797 Mean Well LED driver series HBG-200. LED drivers in a circular housing (IP65) with 200W, a dimming function, a constant current/voltage and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications, have an adjustable output current and comply with EN61347-2-13, EN62384, EN55015 and EN61000-3-2 class C. We offer the following types of this Mean Well series: HBG-200-36AB, HBG-200-48AB and HBG-200-60AB. single output output: 196,8 to 198W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 85A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C dimensions: Ø151,68x66,5mm weight: 1530g

Specifications

manufacturer
Manufacturer's name HBG-200-60AB
GTIN 4711287447797
Output voltage [V] 60
Efficiency [%] 93,5
Output current [A] 3,3
Output voltage tolerance: [%] 2
Output power [W] 198
Ripple [mVp-p] 350
Data Sheet

Unit price

60,69 €

Stock: 0
Further delivery:
CW 16/2025
