HBG-200-48A

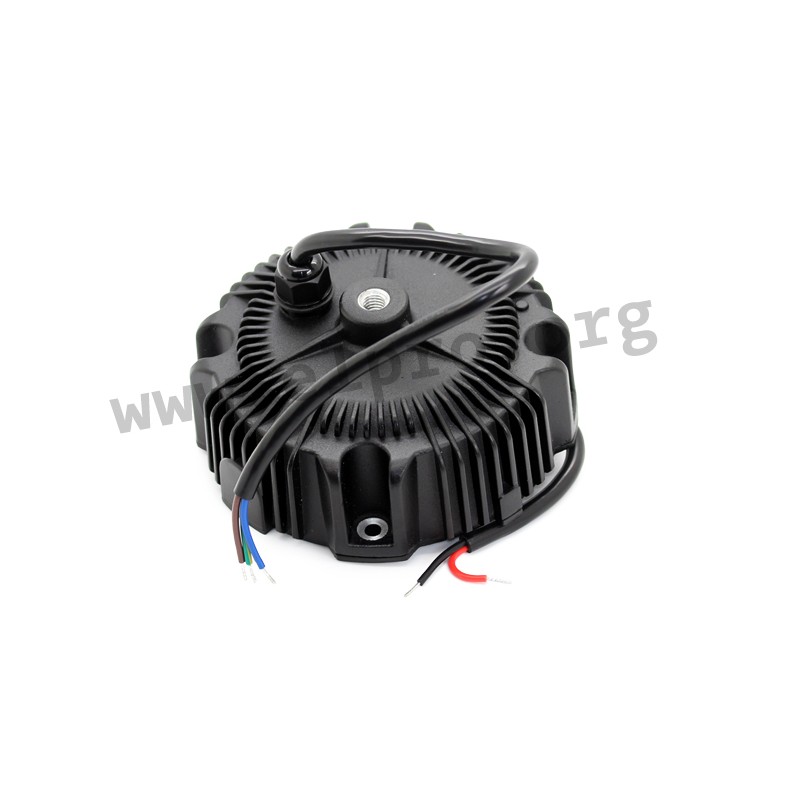

Mean Well LED driver series HBG-200

LED drivers in an aluminium housing (circular shape, IP65) with a universal input, 200W and a built-in potentiometer for adjusting the constant current. These devices are protected against overload (auto recovery), overvoltage as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3 and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-200-36A, HBG-200-48A and HBG-200-60A.

  • single output
  • output: 196,8 to 198W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 85A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø151,68x66,5mm
  • weight: 1530g

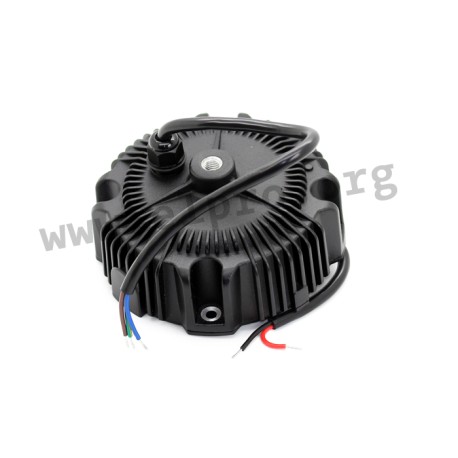

HBG-200-48A, Mean Well LED drivers, 200W, IP65, CV and CC (mixed mode), circular housing, HBG-200 series

HBG-200-48A

113245 HBG-200-48A HBG-200-48A 4711287447735 Mean Well LED driver series HBG-200. LED drivers in an aluminium housing (circular shape, IP65) with a universal input, 200W and a built-in potentiometer for adjusting the constant current. These devices are protected against overload (auto recovery), overvoltage as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3 and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-200-36A, HBG-200-48A and HBG-200-60A. single output output: 196,8 to 198W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 85A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C dimensions: Ø151,68x66,5mm weight: 1530g

Specifications

manufacturer
Manufacturer's name HBG-200-48A
GTIN 4711287447735
Output voltage [V] 48
Efficiency [%] 93
Output voltage tolerance: [%] 2
Output power [W] 196,8
Ripple [mVp-p] 250
Output current adjustment [A] 2,46...4,1
Data Sheet

Unit price

58,19 €

Volume discounts

Quantity Unit price
50 + 56,99 €

Stock: 19
Further delivery:
CW 16/2025
