HBG-200-60

Mean Well LED driver series HBG-200

LED drivers in an aluminium housing (round shape, IP67) with a constant current, 200W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-200-36, HBG-200-48 and HBG-200-60.

  • single output
  • output: 196,8 to 198W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 85A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø151,68x66,5mm
  • weight: 1530g

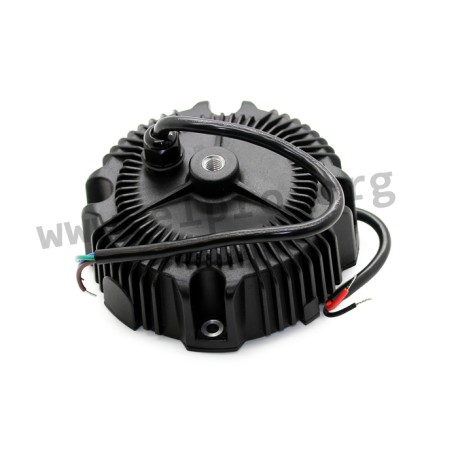

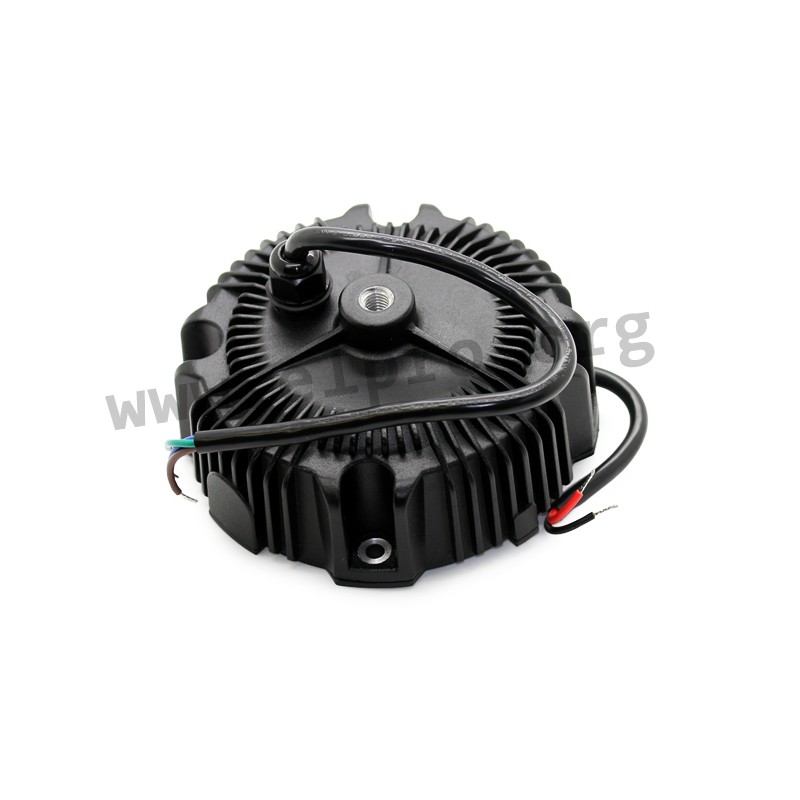

HBG-200-60, Mean Well LED drivers, 200W, IP67, CV and CC (mixed mode), circular housing, HBG-200 series

HBG-200-60

111798 HBG-200-60 HBG-200-60 4711287447773 Mean Well LED driver series HBG-200. LED drivers in an aluminium housing (round shape, IP67) with a constant current, 200W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-200-36, HBG-200-48 and HBG-200-60. single output output: 196,8 to 198W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 85A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C dimensions: Ø151,68x66,5mm weight: 1530g

Specifications

manufacturer
Manufacturer's name HBG-200-60
GTIN 4711287447773
Output voltage [V] 60
Efficiency [%] 93,5
Output voltage tolerance: [%] 2
Output power [W] 198
Ripple [mVp-p] 350
Output current adjustment [A] 1,98...3,3
Data Sheet

Unit price

58,19 €

Volume discounts

Quantity Unit price
50 + 56,99 €

Stock: 2
Further delivery:
CW 11/2025
