HBG-160P-48DA

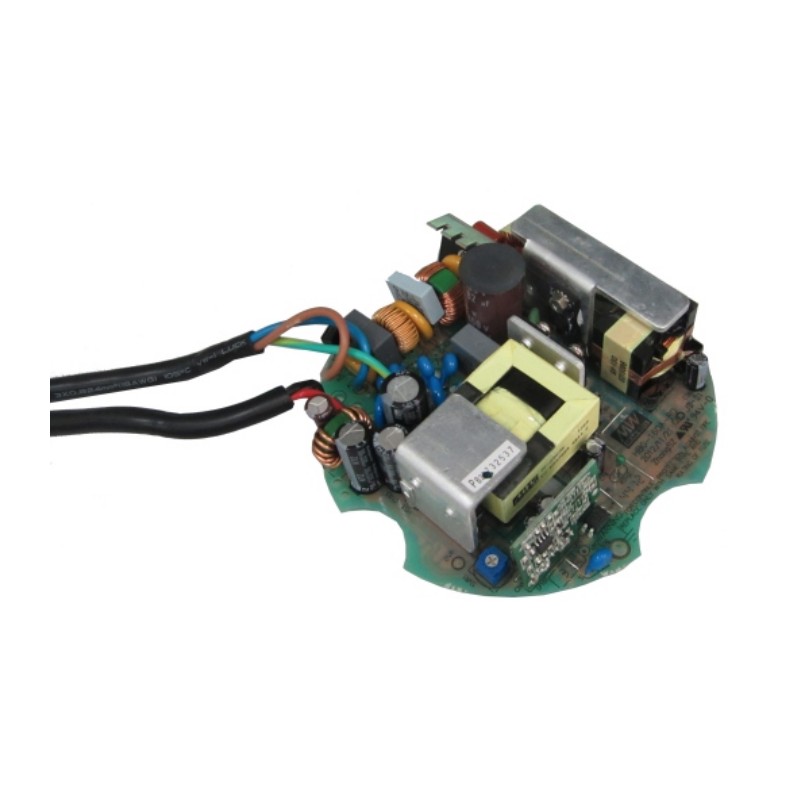

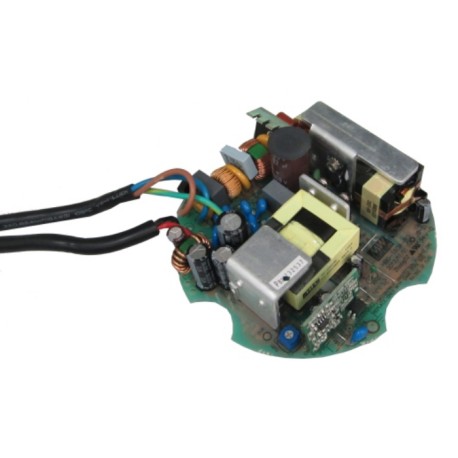

Mean Well LED driver series HBG-160P

Open frame LED drivers with 160W, a circular shape, a DALI interface (HBG-160P-_DA), a constant voltage/current and a 3 in 1 dimming function (HBG-160P-_B). These devices have a built-in active PFC function and are protected against overload (auto recovery), short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HBG-160P-36A, HBG-160P-36B, HBG-160P-36DA, HBG-160P-48A, HBG-160P-48Bm HBG-160P-48DA, HBG-160P-60A, HBG-160P-60B and HBG-160P-60DA.

  • single output
  • output: 156 to 158,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 417V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +45°C
  • dimensions: Ø124,6x34mm
  • weight: 400g
HBG-160P-48DA, Mean Well LED drivers, 160W, CV and CC (mixed mode), dimmable, DALI interface, open frame (PCB), HBG-160P series

HBG-160P-48DA

244926 HBG-160P-48DA HBG-160P-48DA 4711287448190 Mean Well LED driver series HBG-160P. Open frame LED drivers with 160W, a circular shape, a DALI interface (HBG-160P-_DA), a constant voltage/current and a 3 in 1 dimming function (HBG-160P-_B). These devices have a built-in active PFC function and are protected against overload (auto recovery), short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HBG-160P-36A, HBG-160P-36B, HBG-160P-36DA, HBG-160P-48A, HBG-160P-48Bm HBG-160P-48DA, HBG-160P-60A, HBG-160P-60B and HBG-160P-60DA. single output output: 156 to 158,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 417V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +45°C dimensions: Ø124,6x34mm weight: 400g

Specifications

manufacturer
Manufacturer's name HBG-160P-48DA
GTIN 4711287448190
Output voltage [V] 28,8...48
Efficiency [%] 93
Output current [A] 3,3
Output voltage tolerance: [%] 2
Output power [W] 158,4
Ripple [mVp-p] 300
Data Sheet

Unit price

45,49 €

Stock: 0
Further delivery:
CW 11/2025
