HBG-160-36A

Mean Well LED driver series HBG-160

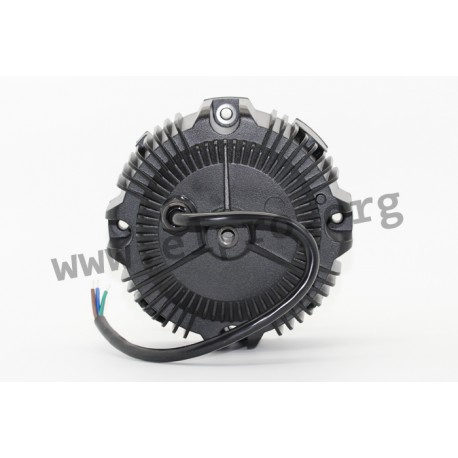

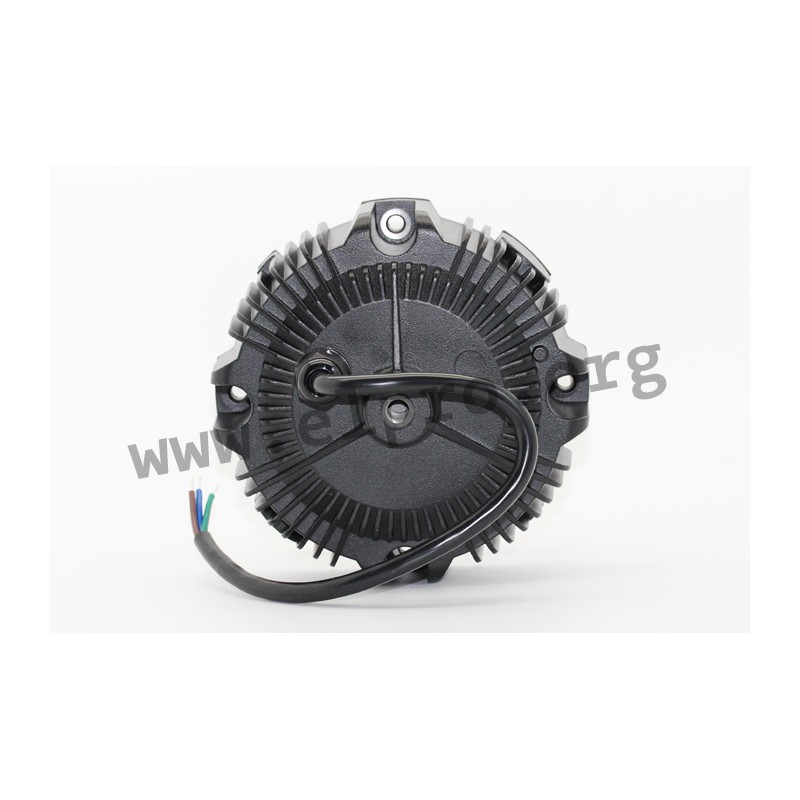

LED drivers in a round metal housing (IP65) with a constant power, 160W and a constant current. These SELV compliant devices are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in potentiometer for adjusting the current limitation as well as a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HBG-160-24A, HBG-160-36A, HBG-160-48A and HBG-160-60A.

  • single output
  • output: 156 to 158,4W
  • input voltage: 90 to 305V AC (47 to 63hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C

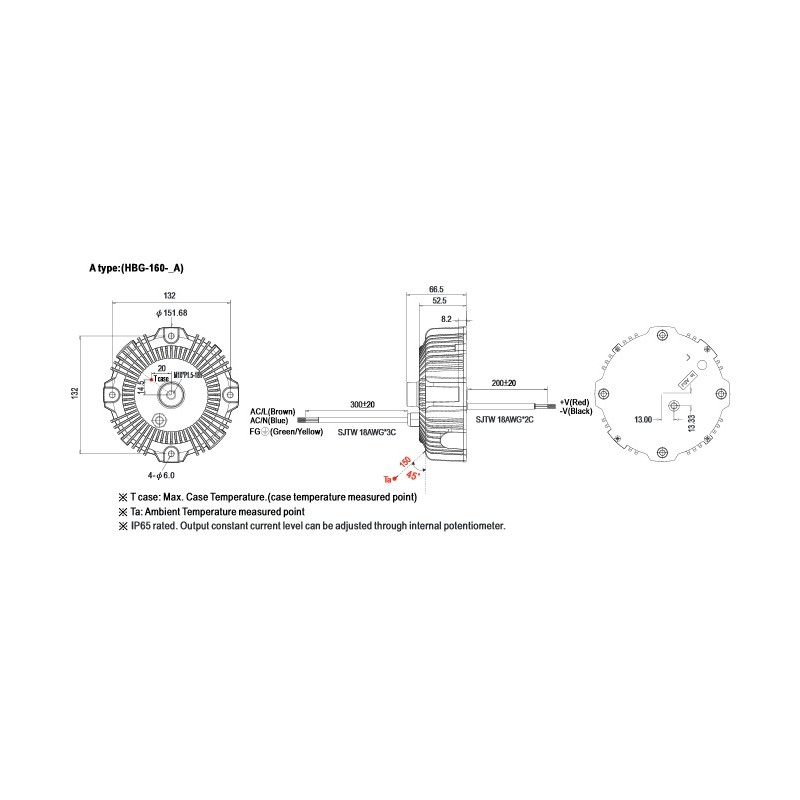

  • dimensions: Ø151,68x66,5mm
  • weight: 1530g
HBG-160-36A

HBG-160-36A

41535 HBG-160-36A HBG-160-36A 4711287447520 Mean Well LED driver series HBG-160. LED drivers in a round metal housing (IP65) with a constant power, 160W and a constant current. These SELV compliant devices are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in potentiometer for adjusting the current limitation as well as a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HBG-160-24A, HBG-160-36A, HBG-160-48A and HBG-160-60A. single output output: 156 to 158,4W input voltage: 90 to 305V AC (47 to 63hz), 127 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C dimensions: Ø151,68x66,5mm weight: 1530g

Specifications

manufacturer
Manufacturer's name HBG-160-36A
GTIN 4711287447520
Output voltage [V] 36
Phase 2 phase
Output current adjustment [A] 2,6...4,4
Efficiency [%] 92
Output voltage tolerance: [%] 2
Output power [W] 158,4
Ripple [mVp-p] 300
Data Sheet

Unit price

52,79 €

Volume discounts

Quantity Unit price
50 + 51,69 €

Stock: 12
Further delivery:
CW 11/2025
