HBG-160-36

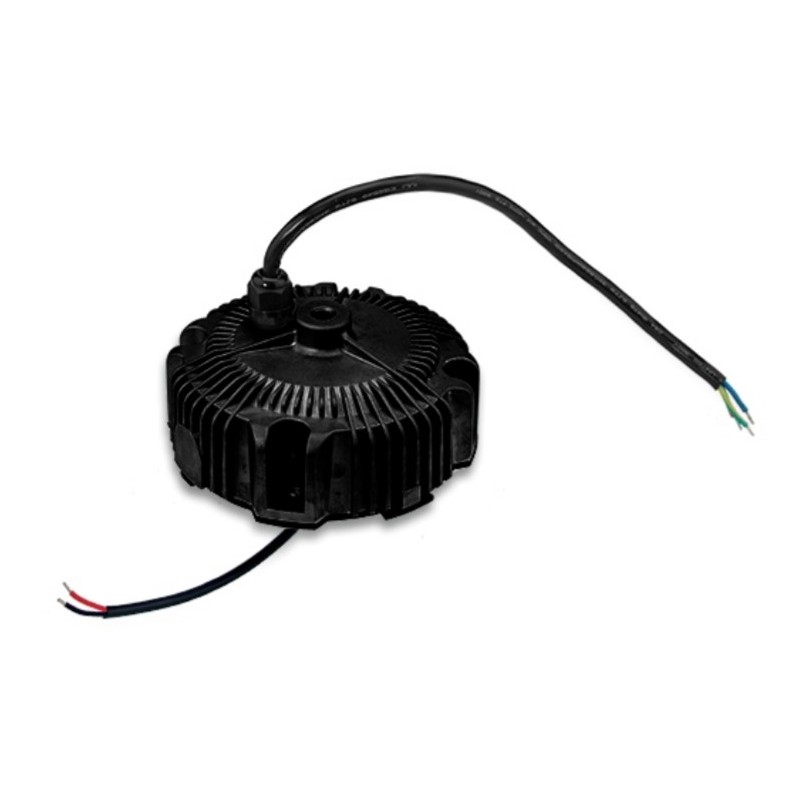

Mean Well LED driver series HBG-160

LED drivers in a circular metal case (IP67) with a constant current (pre-set), 160W and a wide input range. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-160-24, HBG-160-36, HBG-160-48 and HBG-160-60.

  • single output
  • output: 156 to 158,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • weight: 1530g

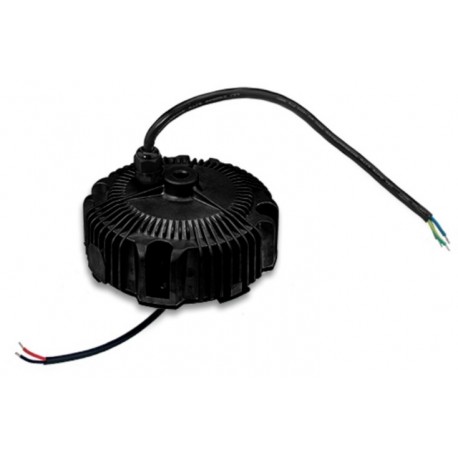

HBG-160-36, Mean Well LED switching power supplies, 160W, IP67, circular housing, HBG-160 series

HBG-160-36

123270 HBG-160-36 HBG-160-36 4711287447483 Mean Well LED driver series HBG-160. LED drivers in a circular metal case (IP67) with a constant current (pre-set), 160W and a wide input range. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-160-24, HBG-160-36, HBG-160-48 and HBG-160-60. single output output: 156 to 158,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C weight: 1530g

Specifications

manufacturer
Manufacturer's name HBG-160-36
GTIN 4711287447483
Output voltage [V] 36
Efficiency [%] 92
Output current [A] 4,4
Output voltage tolerance: [%] 2
Output power [W] 158,4
Ripple [mVp-p] 300
Data Sheet

Unit price

52,79 €

Volume discounts

Quantity Unit price
50 + 51,69 €

Stock: 4
Further delivery:
CW 16/2025
