HBG-160-36DA

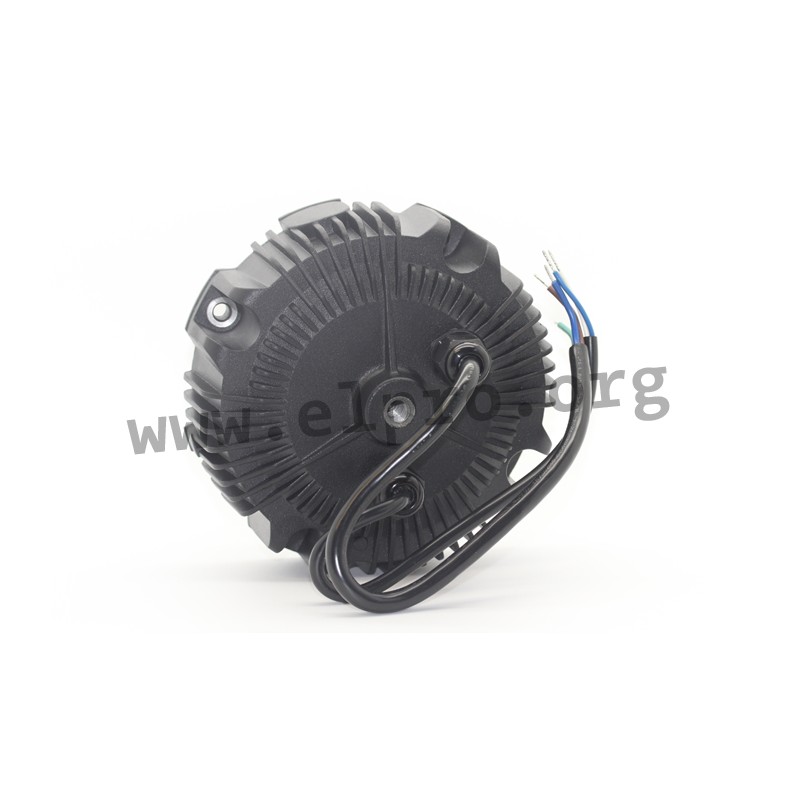

Mean Well LED driver series HBG-160

LED drivers in a round metal housing (IP67) with a constant current, a DALI interface and 160W. These devices are suitable for LED lighting applications and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-160-24DA, HBG-160-36DA, HBG-160-48DA and HBG-160-60DA.

  • single output
  • output: 156 to 158,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • weight: 1530g

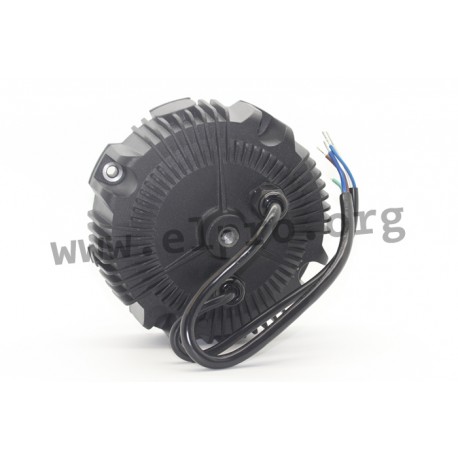

Mean Well HBG-160 series

HBG-160-36DA

111788 HBG-160-36DA HBG-160-36DA 4711287447643 Mean Well LED driver series HBG-160. LED drivers in a round metal housing (IP67) with a constant current, a DALI interface and 160W. These devices are suitable for LED lighting applications and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-160-24DA, HBG-160-36DA, HBG-160-48DA and HBG-160-60DA. single output output: 156 to 158,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C weight: 1530g

Specifications

manufacturer
Manufacturer's name HBG-160-36DA
GTIN 4711287447643
Output voltage [V] 36
Efficiency [%] 92
Output voltage tolerance: [%] 2
Output power [W] 158,4
Ripple [mVp-p] 300
Output current adjustment [A] 2,6...4,4
Data Sheet

Unit price

58,49 €

Volume discounts

Quantity Unit price
50 + 57,29 €

Stock: 25
Further delivery:
CW 11/2025
