HBG-160-24B

Mean Well LED driver series HBG-160

LED drivers in a round aluminium housing (IP67) with a constant current, 160W and a constant power. These devices are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HBG-160-24B, HBG-160-36B, HBG-160-48B and HBG-160-60B.

  • single output
  • output: 156 to 158,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • weight: 1530g

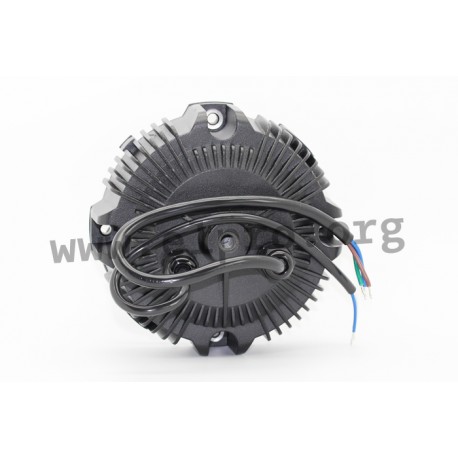

Mean Well HBG-160 series

HBG-160-24B

111785 HBG-160-24B HBG-160-24B 4711287447551 Mean Well LED driver series HBG-160. LED drivers in a round aluminium housing (IP67) with a constant current, 160W and a constant power. These devices are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HBG-160-24B, HBG-160-36B, HBG-160-48B and HBG-160-60B. single output output: 156 to 158,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C weight: 1530g

Specifications

manufacturer
Manufacturer's name HBG-160-24B
GTIN 4711287447551
Output voltage [V] 24
Efficiency [%] 92
Output voltage tolerance: [%] 2
Output power [W] 156
Ripple [mVp-p] 200
Output current adjustment [A] 3,9...6,5
Data Sheet

Unit price

54,39 €

Volume discounts

Quantity Unit price
50 + 53,19 €

Stock: 20
Further delivery:
CW 16/2025
