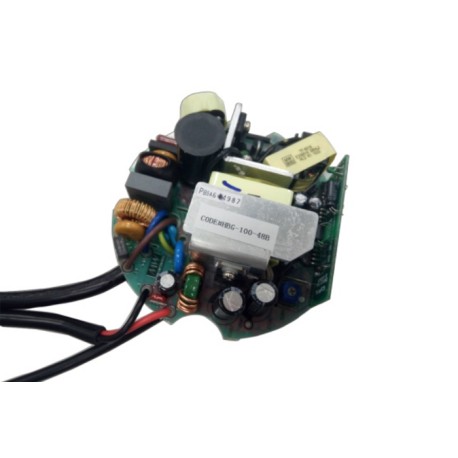

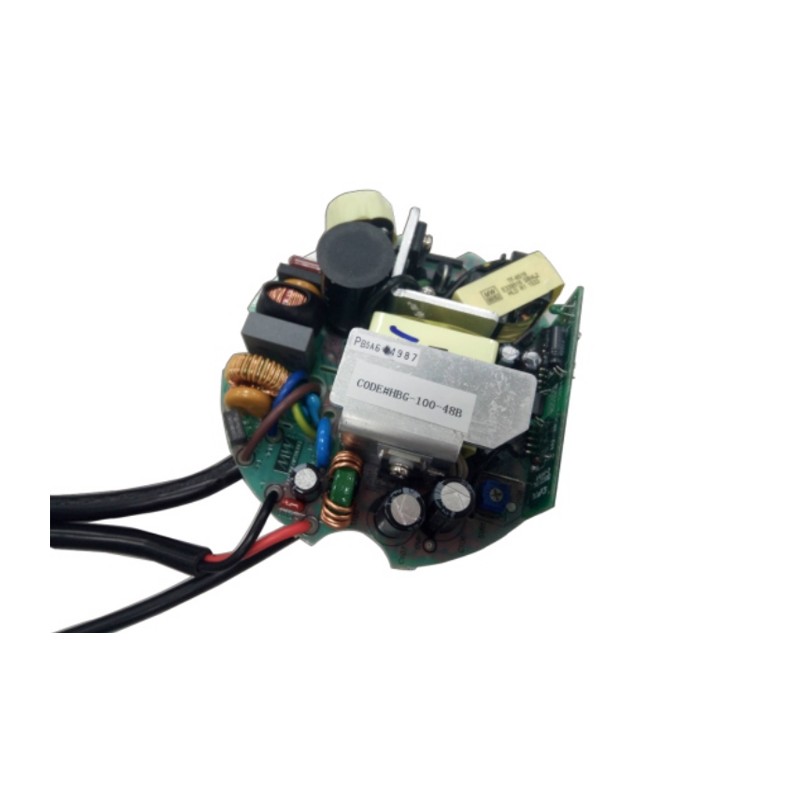

HBG-100P-60DA

Mean Well LED driver series HBG-100P

Open frame LED drivers with 100W, a circular shape, a constant current, a DALI interface (HBG-100P-_DA) and a 3 in 1 dimming function (HBG-100P-_B). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HBG-100P-36A, HBG-100P-36B, HBG-100P-36DA, HBG-100P-48A, HBG-100P-48B, HBG-100P-48DA, HBG-100P-60A, HBG-100P-60B and HBG-100P-60DA.

  • single output
  • output: 96 to 97,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +45°C
  • dimensions: Ø104x34mm
  • weight: 300g
HBG-100P-60DA, Mean Well LED drivers, 100W, constant current, dimmable, DALI interface, open frame (PCB), HBG-100P series

HBG-100P-60DA

244920 HBG-100P-60DA HBG-100P-60DA 4711287448138 Mean Well LED driver series HBG-100P. Open frame LED drivers with 100W, a circular shape, a constant current, a DALI interface (HBG-100P-_DA) and a 3 in 1 dimming function (HBG-100P-_B). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HBG-100P-36A, HBG-100P-36B, HBG-100P-36DA, HBG-100P-48A, HBG-100P-48B, HBG-100P-48DA, HBG-100P-60A, HBG-100P-60B and HBG-100P-60DA. single output output: 96 to 97,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +45°C dimensions: Ø104x34mm weight: 300g

Specifications

manufacturer
Manufacturer's name HBG-100P-60DA
GTIN 4711287448138
Output voltage [V] 36...60
Output current tolerance [%] 5
Efficiency [%] 91,5
Output current [A] 1,6
Output power [W] 96
Data Sheet

Unit price

36,49 €

Stock: 0
Further delivery:
CW 16/2025
