HBG-100-36A

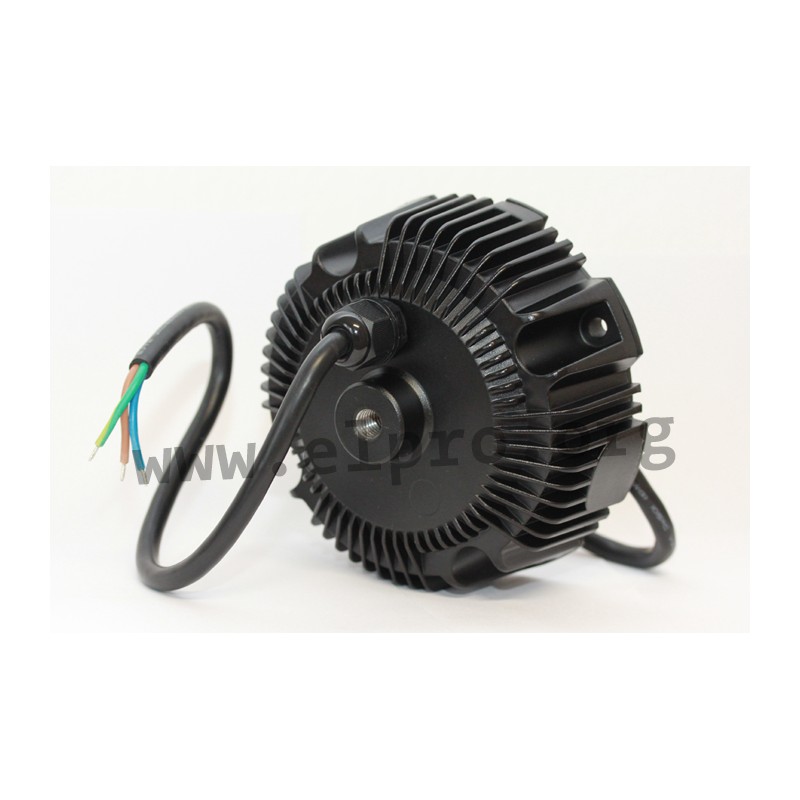

Mean Well LED driver series HBG-100

LED drivers in a round metal housing (IP65) with a constant current, 100W and a built-in active PFC function. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a built-in potentiometer for adjusting the current limitation. We offer the following types of this Mean Well series: HBG-100-36A, HBG-100-48A and HBG-100-60A.

  • single output
  • output: 96 to 97,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C

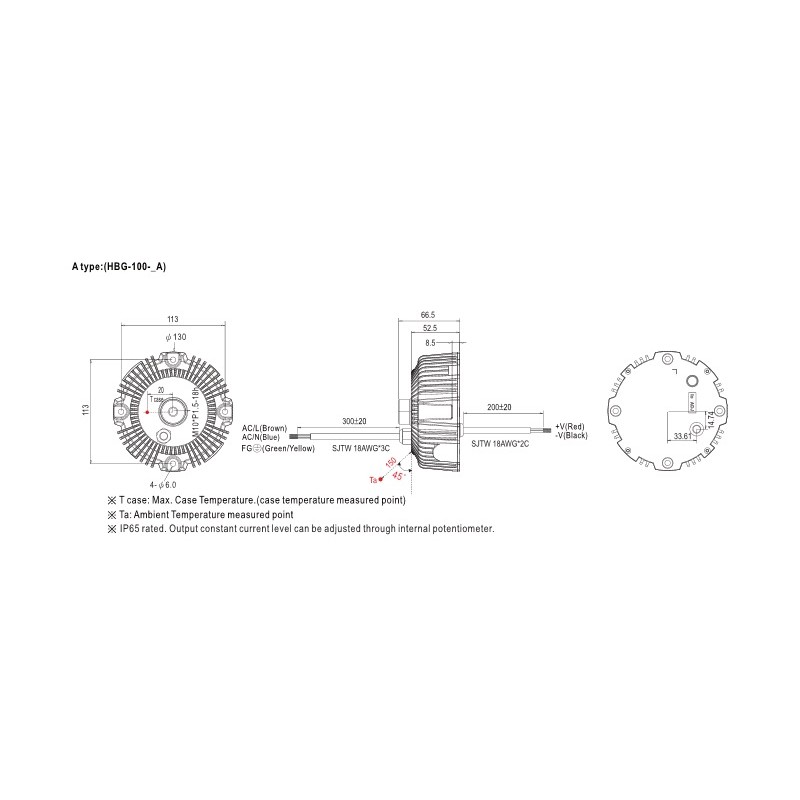

  • dimensions: Ø130x66,5mm
  • weight: 1180g

Matching heatsinks

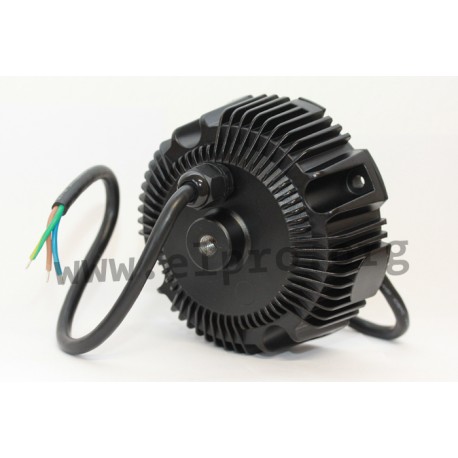

Meanwell HBG-100 series

HBG-100-36A

41531 HBG-100-36A HBG-100-36A 4711287447308 Mean Well LED driver series HBG-100. LED drivers in a round metal housing (IP65) with a constant current, 100W and a built-in active PFC function. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a built-in potentiometer for adjusting the current limitation. We offer the following types of this Mean Well series: HBG-100-36A, HBG-100-48A and HBG-100-60A. single output output: 96 to 97,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C dimensions: Ø130x66,5mm weight: 1180g Matching heatsinks

Specifications

manufacturer
Manufacturer's name HBG-100-36A
GTIN 4711287447308
Output voltage [V] 36
Phase 2 phase
Output current adjustment [A] 1,62...2,7
Efficiency [%] 91
Output voltage tolerance: [%] 2
Output power [W] 97,2
Ripple [mVp-p] 300
Data Sheet

Unit price

41,79 €

Volume discounts

Quantity Unit price
50 + 40,89 €

Stock: 31
Further delivery:
CW 09/2025
