HBG-100-36

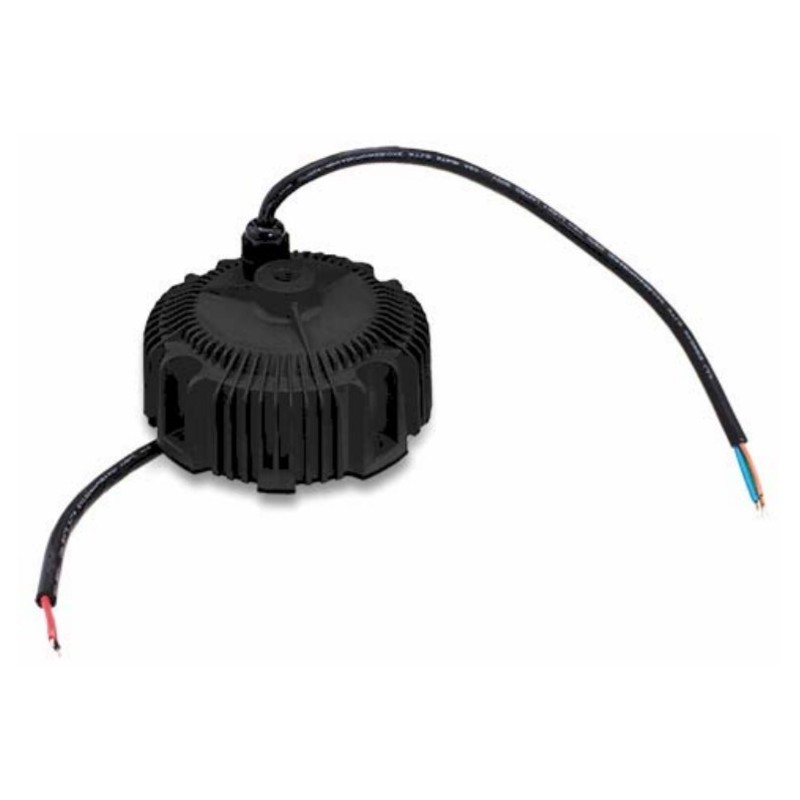

Mean Well LED driver series HBG-100

LED drivers in a round metal case (IP67) with a constant current (pre-set), 100W and a wide input range. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-100-24, HBG-100-36, HBG-100-48 and HBG-100-60.

  • single output
  • output: 96 to 97,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • weight: 1180g

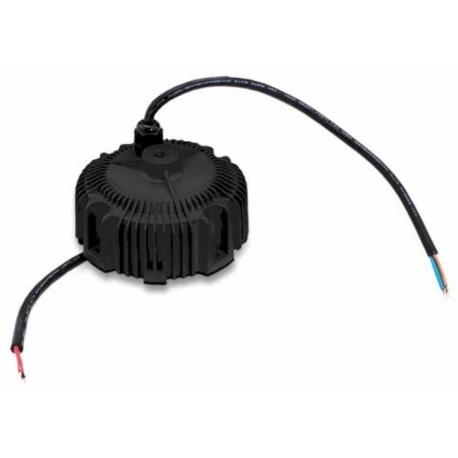

HBG-100-36, Mean Well LED drivers, 100W, IP67, constant current, circular housing, HBG-100 series

HBG-100-36

244578 HBG-100-36 HBG-100-36 4711287447292 Mean Well LED driver series HBG-100. LED drivers in a round metal case (IP67) with a constant current (pre-set), 100W and a wide input range. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-100-24, HBG-100-36, HBG-100-48 and HBG-100-60. single output output: 96 to 97,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C weight: 1180g

Specifications

manufacturer
Manufacturer's name HBG-100-36
GTIN 4711287447292
Efficiency [%] 91
Output current [A] 2,7
Output voltage tolerance: [%] 5
Output power [W] 97,2
Output voltage range [V] 21,6...36
Data Sheet

Unit price

41,69 €

Stock: 0
