HBG-100-24DA

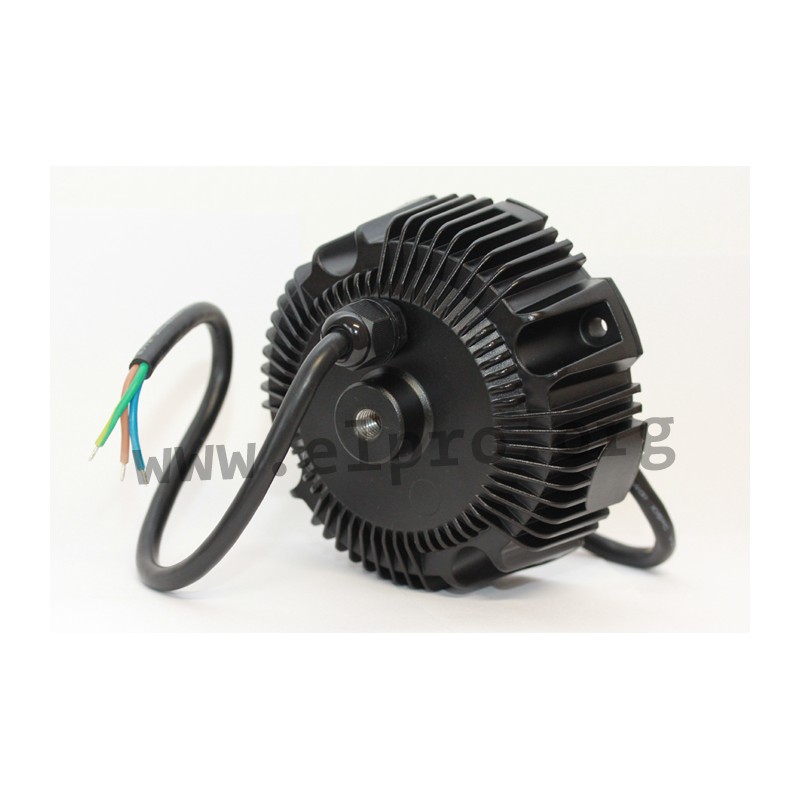

Mean Well LED driver series HBG-100

LED drivers in a round metal housing (IP67) with a universal input, a constant current, 100W and a DALI interface. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547. They are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-100-24DA, HBG-100-36DA, HBG-100-48DA and HBG-100-60DA.

  • single output
  • output: 96 to 97,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø130x66,5mm
  • weight: 1180g

Matching heatsinks

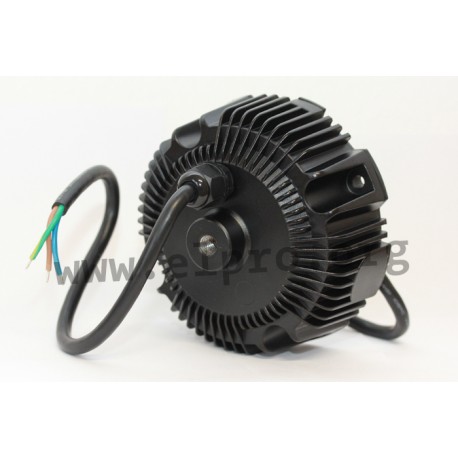

Mean Well HBG-100 series

HBG-100-24DA

111778 HBG-100-24DA HBG-100-24DA 4711287447278 Mean Well LED driver series HBG-100. LED drivers in a round metal housing (IP67) with a universal input, a constant current, 100W and a DALI interface. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547. They are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-100-24DA, HBG-100-36DA, HBG-100-48DA and HBG-100-60DA. single output output: 96 to 97,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C dimensions: Ø130x66,5mm weight: 1180g Matching heatsinks

Specifications

manufacturer
Manufacturer's name HBG-100-24DA
GTIN 4711287447278
Efficiency [%] 90,5
Output current [A] 4
Output voltage tolerance: [%] 5
Output power [W] 96
Ripple [mVp-p] 200
Output voltage range [V] 14,4...24
Data Sheet

Unit price

47,19 €

Volume discounts

Quantity Unit price
50 + 46,19 €

Stock: 3
Further delivery:
CW 16/2025
