HBG-100-24B

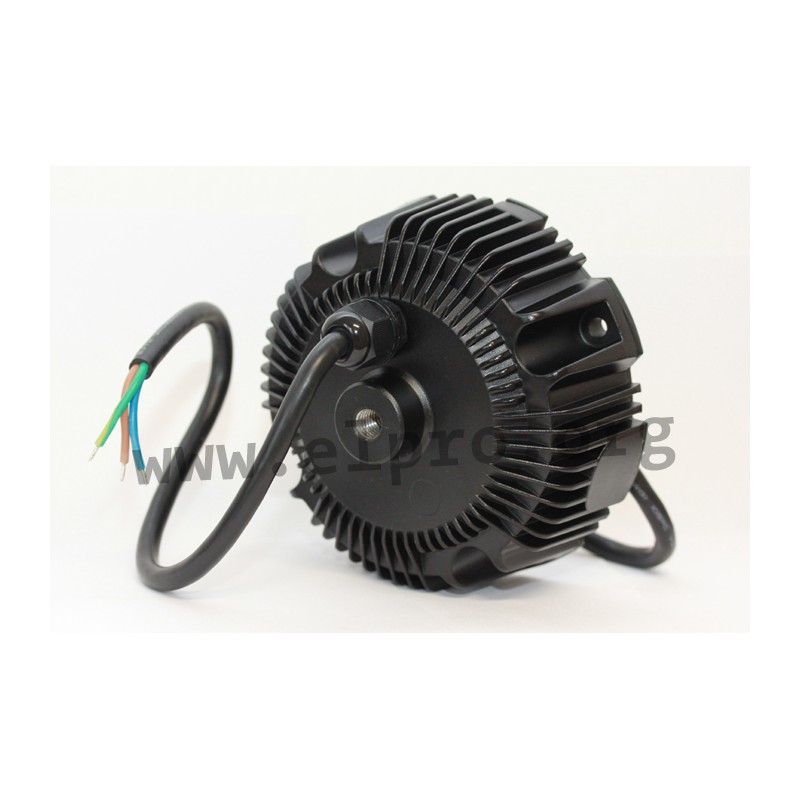

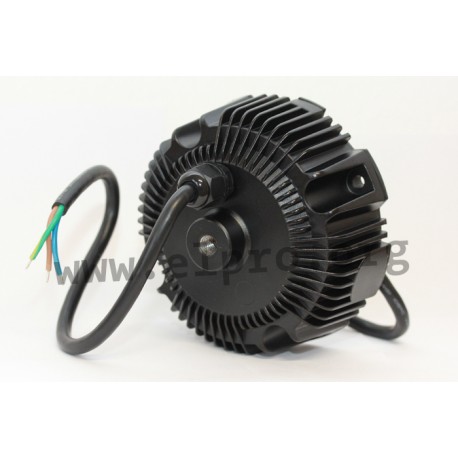

Mean Well LED driver series HBG-100

LED drivers in a round metal housing (IP67) with a constant current, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), 100W and a universal input. These devices are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-100-24B, HBG-100-36B, HBG-100-48B and HBG-100-60B.

  • single output
  • output: 96 to 97,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø130x66,5mm
  • weight: 1180g

Matching heatsinks

Mean Well HBG-100 series

HBG-100-24B

111777 HBG-100-24B HBG-100-24B 4711287447261 Mean Well LED driver series HBG-100. LED drivers in a round metal housing (IP67) with a constant current, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), 100W and a universal input. These devices are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-100-24B, HBG-100-36B, HBG-100-48B and HBG-100-60B. single output output: 96 to 97,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +85°C dimensions: Ø130x66,5mm weight: 1180g Matching heatsinks

Specifications

manufacturer
Manufacturer's name HBG-100-24B
GTIN 4711287447261
Efficiency [%] 90,5
Output current [A] 4
Output voltage tolerance: [%] 5
Output power [W] 96
Ripple [mVp-p] 200
Output voltage range [V] 14,4...24
Data Sheet

Unit price

42,89 €

Volume discounts

Quantity Unit price
50 + 41,99 €

Stock: 5
Further delivery:
CW 16/2025
